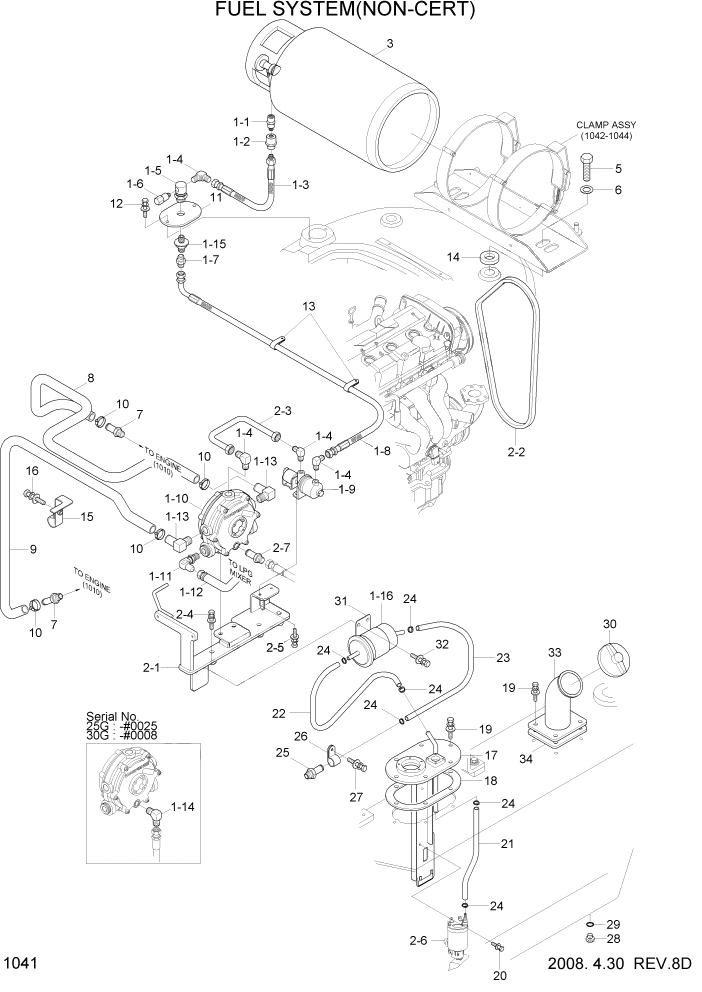

Запчасти Hyundai 20/25/30G-7 PAGE 1041 FUEL SYSTEM(NON-CERT) СИСТЕМА ДВИГАТЕЛЯ

1

11HF-50040

FUEL KIT ASS'Y

1шт.

1

11HF-50041

FUEL KIT ASSY

20G #0001

1шт.

1

11HF-50040

FUEL KIT ASS'Y

#0063

1шт.

1

11HF-50041

FUEL KIT ASSY

25G #0064

1шт.

1

11HF-50040

FUEL KIT ASS'Y

#0009

1шт.

1

11HF-50041

FUEL KIT ASSY

30G #0010

1шт.

1-1

FBC0200900

COUPLING-MALE

1шт.

1-2

FBC0200600

COUPLING-FEMALE

1шт.

1-3

11FW-50091

HOSE ASSY

1шт.

1-4

FBC0200300

ELBOW

4шт.

1-5

FBC0200500

FITTING-T/BULK HEAD

1шт.

1-6

FBC0200800

RELIEF VALVE

1шт.

1-7

FBC0200400

ADAPTOR

1шт.

1-8

11HF-50450

HOSE ASSY

1шт.

1-9

11HF-50460

ELECTRIC FUEL LOCKOFF

1шт.

1-1

F23242020

REGULATOR

1шт.

1-11

F22910600

FITTING

2шт.

1-12

F21240510

HOSE

1шт.

1-13

F22911600

FITTING

2шт.

1-14

F23240130

FITTING

25G #0025

2шт.

1-14

F23240130

FITTING

30G #0008

2шт.

1-15

11FK-53020

FITTING-ADAPTOR

1шт.

1-16

11HF-50190

FUEL FILTER

1шт.

2

11HF-50512

REGULATOR MT'G PART

20G

1шт.

2

11HF-50513

REGULATOR MTG PART

20G #0001

1шт.

2

11HF-50511

REGULATOR MT'G PART

25G #0025

1шт.

2

11HF-50512

REGULATOR MT'G PART

25G #0026 - #0063

1шт.

2

11HF-50513

REGULATOR MTG PART

25G #0064

1шт.

2

11HF-50511

REGULATOR MT'G PART

30G #0008

1шт.

2

11HF-50512

REGULATOR MT'G PART

30G #0009 - #0009

1шт.

2

11HF-50513

REGULATOR MTG PART

30G #0010

1шт.

2-1

11HF-50481

BKT-REGULATOR

1шт.

2-2

11HF-60100

BELT-FAN

1шт.

2-3

11HF-50491

PIPE-FUEL

1шт.

2-4

S035-084026

BOLT-W/WASHER

3шт.

2-5

S035-062026

BOLT-W/WASHER

2шт.

2-6

11HF-50530

FUEL PUMP

1шт.

2-7

11HF-20061

CONNECTOR

20G

1шт.

2-7

11HF-20061

CONNECTOR

25G #0026

1шт.

2-7

11HF-20061

CONNECTOR

30G #0009

1шт.

3

FBC0200050-01

TANK-LPG

1шт.

5

S017-240906

BOLT-HEX

2шт.

6

S441-240006

WASHER-HARDENED

2шт.

7

P090-101006

CONNECTOR-HOSE

2шт.

8

11HF-50550

HOSE-WATER

1шт.

9

11HF-50560

HOSE-WATER

1шт.

10

S520-027000

CLAMP-HOSE

4шт.

11

11HF-50050

PLATE

1шт.

12

S037-123026

BOLT-W/WASHER

2шт.

13

S543-260002

CLAMP-TUBE

2шт.

14

11HF-50230

BOSS

2шт.

15

11HF-50240

CLAMP

2шт.

16

S035-081526

BOLT-W/WASHER

1шт.

17

11HF-50501

COVER-FUEL

1шт.

18

11HA-50022

GASKET

1шт.

19

31HA-30041

BOLT-HEX,FLANGE

10шт.

20

S131-041546

SCREW-W/WASHER

2шт.

21

11HF-50540

HOSE-FUEL

1шт.

22

11FB-50301

HOSE-FUEL

1шт.

23

11F8-00051

HOSE-FUEL

1шт.

24

11HA-50110

CLIP-HOSE

6шт.

25

11HF-50520

CONNECTOR-HOSE

1шт.

26

S541-200002

CLAMP-TUBE

1шт.

27

S035-061526

BOLT-W/WASHER

1шт.

28

31FA-30430

PLUG-MAGNETIC

1шт.

28

31HM-30020

PLUG-MAGNETIC

20G #0001

1шт.

28

31FA-30430

PLUG-MAGNETIC

25G #0007

1шт.

28

31HM-30020

PLUG-MAGNETIC

25G #0008

1шт.

28

31FA-30430

PLUG-MAGNETIC

30G #0002

1шт.

28

31HM-30020

PLUG-MAGNETIC

30G #0003

1шт.

29

S631-014004

O-RING

1шт.

30

11HF-50090

FUEL TANK CAP

1шт.

31

11HF-50181

CLAMP

1шт.

32

S035-082026

BOLT-W/WASHER

2шт.

33

11HF-50580

FUEL FILLER PIPE W.A

1шт.

34

11HF-50590

GASKET

1шт.

35

11HF-50720

ECM ASSY-BI FUEL

20G,NOT SHOWN #0001

1шт.

35

11HF-50720

ECM ASSY-BI FUEL

25G,NOT SHOWN #0064

1шт.

35

11HF-50720

ECM ASSY-BI FUEL

30G,NOT SHOWN #0010

1шт.
