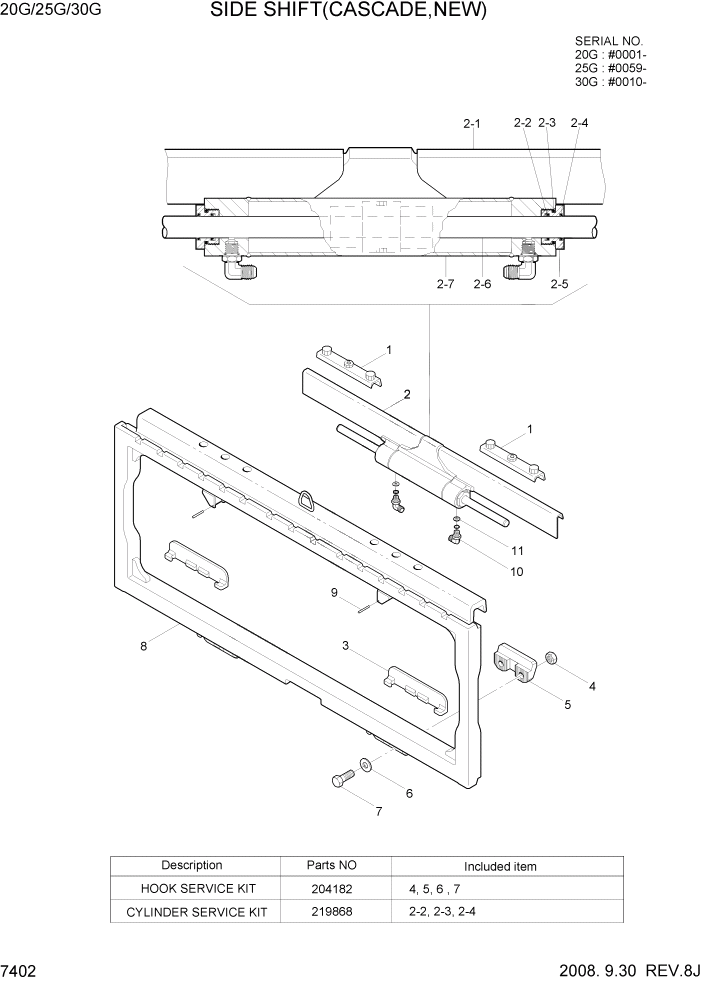

Запчасти Hyundai 20/25/30G-7 PAGE 7402 SIDE SHIFT(CASCADE,NEW) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

65HN-00110

SIDE SHIFT ASSY

SINGLE,20G,7400

1шт.

*

65HN-00110

SIDE SHIFT ASSY

SINGLE,25G,7400 #0059

1шт.

*

65HN-00120

SIDE SHIFT ASSY

DOUBLE,20G,7400

1шт.

*

65HN-00120

SIDE SHIFT ASSY

DOUBLE,25G,7400 #0059

1шт.

*

65HN-10120

SIDE SHIFT ASSY

SINGLE,30G,7400 #0010

1шт.

*

65HN-10130

SIDE SHIFT ASSY

DOUBLE,30G,7400 #0010

1шт.

*

65HN-10170

SIDE SHIFT ASSY

WIDE-S,30G,7400 #0010

1шт.

1

228782

BEARING-UPPER

20/25G

2шт.

1

6051249

BEARING-UPPER

30G

2шт.

2

6025685

CYLINDER ASSY

20/25G

1шт.

2

6062748

CYLINDER ASSY

30G

1шт.

N2-1

@

CYLINDER WA

NOT

1шт.

K2-2

562132

SEAL-ROD

2шт.

K2-3

415866

RING-RETAINING

2шт.

K2-4

562131

SEAL-ROD WIPER

2шт.

2-5

218324

RETAINER

2шт.

N2-6

@

ROD & PISTON ASSY

NOT

1шт.

N2-7

@

SHELL-CYLINDER

NOT

1шт.

3

6000719

BEARING-LOWER

20/25G

2шт.

3

6057162

BEARING-LOWER

30G

2шт.

S4

781534

NUT

4шт.

S5

204186

HOOK-LOWER

2шт.

S6

667225

WASHER

4шт.

S7

1250095

SCREW-CAP

20/25G

4шт.

S7

1250086

SCREW-CAP

30G

4шт.

N8

@

FRAME

NOT

1шт.

9

7890

PIN-ROLL

2шт.

N10

601676

FITTING-90

NOT

2шт.

11

221733

RESTRICTOR WASHER

2шт.

K

219868

CYLINDER SEAL KIT

SEE ILLUST

1шт.

S

204182

HOOK SERVICE KIT

SEE ILLUST

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
