Запчасти Hyundai 20/25/30G-7 PAGE 7290 4-SPOOL HYD PIPING(TF-MAST,INTERNAL) РАБОЧЕЕ ОБОРУДОВАНИЕ

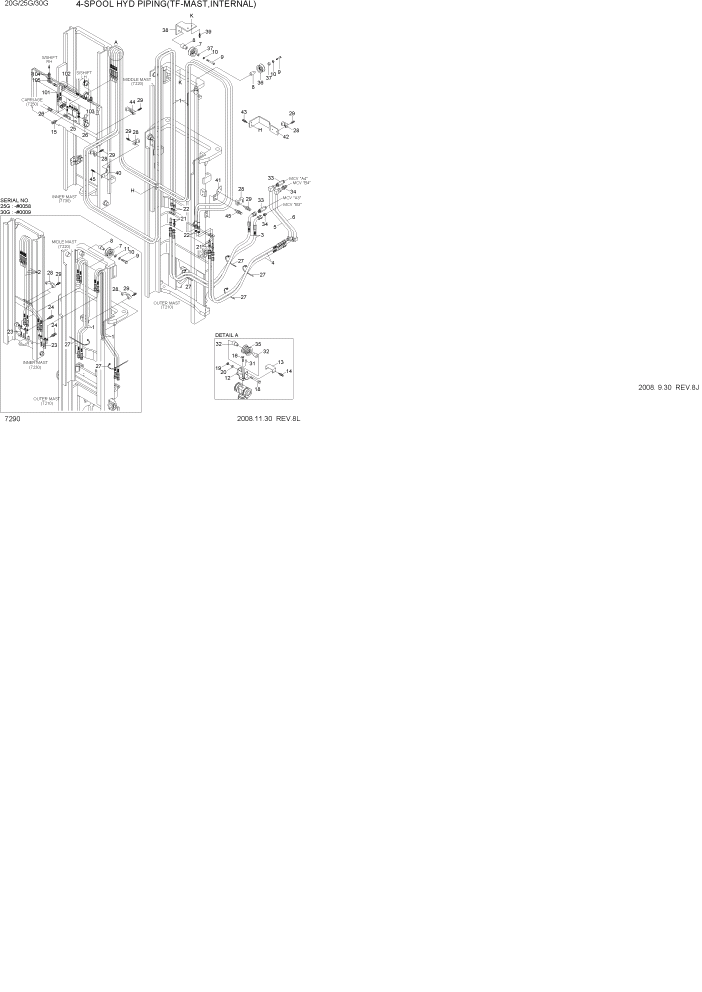

Схема запчастей Hyundai 20/25/30G-7 - PAGE 7290 4-SPOOL HYD PIPING(TF-MAST,INTERNAL) РАБОЧЕЕ ОБОРУДОВАНИЕ

Артикул

Название

Примечание

Количество

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370

4шт.

1

P910-064087

HOSE ASSY-ORFS 0X0

TF370,20G

4шт.

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370,25G #0058

4шт.

1

P910-064087

HOSE ASSY-ORFS 0X0

TF370,25G #0059

4шт.

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370,30G #0009

4шт.

1

P910-064087

HOSE ASSY-ORFS 0X0

TF370,30G #0010

4шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450

4шт.

1

P910-064093

HOSE ASSY-ORFS 0X0

TF400,20G

4шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400,25G #0058

4шт.

1

P910-064093

HOSE ASSY-ORFS 0X0

TF400,25G #0059

4шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400,30G #0009

4шт.

1

P910-064093

HOSE ASSY-ORFS 0X0

TF400,30G #0010

4шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550

4шт.

1

P910-064099

HOSE ASSY-ORFS 0X0

TF430,20G

4шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430,25G #0058

4шт.

1

P910-064099

HOSE ASSY-ORFS 0X0

TF430,25G #0059

4шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430,30G #0009

4шт.

1

P910-064099

HOSE ASSY-ORFS 0X0

TF430,30G #0010

4шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700

4шт.

1

P910-064104

HOSE ASSY-ORFS 0X0

TF450,20G

4шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450,25G #0058

4шт.

1

P910-064104

HOSE ASSY-ORFS 0X0

TF450,25G #0059

4шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450,30G #0009

4шт.

1

P910-064104

HOSE ASSY-ORFS 0X0

TF450,30G #0010

4шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470

4шт.

1

P910-064108

HOSE ASSY-ORFS 0X0

TF470,20G

4шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470,25G #0058

4шт.

1

P910-064108

HOSE ASSY-ORFS 0X0

TF470,25G #0059

4шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470,30G #0009

4шт.

1

P910-064108

HOSE ASSY-ORFS 0X0

TF470,30G #0010

4шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

2шт.

1

P910-064114

HOSE ASSY-ORFS 0X0

TF500,20G

4шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500,25G #0058

4шт.

1

P910-064114

HOSE ASSY-ORFS 0X0

TF500,25G #0059

4шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500,30G #0009

4шт.

1

P910-064114

HOSE ASSY-ORFS 0X0

TF500,30G #0010

4шт.

9

S017-120606

BOLT-HEX

2шт.

1

P910-064125

HOSE ASSY-ORFS 0X0

TF550,20G

4шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550,25G #0058

4шт.

1

P910-064125

HOSE ASSY-ORFS 0X0

TF550,25G #0059

4шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550,30G #0009

4шт.

1

P910-064125

HOSE ASSY-ORFS 0X0

TF550,30G #0010

4шт.

15

S037-102526

BOLT-W/WASHER

4шт.

1

P910-064137

HOSE ASSY-ORFS 0X0

TF600,20G

4шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600,25G #0058

4шт.

1

P910-064137

HOSE ASSY-ORFS 0X0

TF600,25G #0059

4шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600,30G #0009

4шт.

1

P910-064137

HOSE ASSY-ORFS 0X0

TF600,30G #0010

4шт.

21

31FG-80210

CONNECTOR

4шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650,25G #0058

4шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650,30G #0009

4шт.

24

S037-102026

BOLT-W/WASHER

4шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700,25G #0058

4шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700,30G #0009

4шт.

27

S552-102370

CLAMP-BAND

6шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370,25G #0058

4шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370,30G #0009

4шт.

31

S471-800162

PIN-SPRING

1шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400,25G #0058

4шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400,30G #0009

4шт.

33

31FQ-10070

CONNECTOR

2шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430,25G #0058

4шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430,30G #0009

4шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450,25G #0058

4шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450,30G #0009

4шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470,25G #0058

4шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470,30G #0009

4шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500,25G #0058

4шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500,30G #0009

4шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550,25G #0058

4шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550,30G #0009

4шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600,25G #0058

4шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600,30G #0009

4шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650,25G #0058

4шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650,30G #0009

4шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700,25G #0058

4шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700,30G #0009

4шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

2шт.

3

P933-064032

HOSE ASSY-ORFS 0X90

20G #0001

2шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

25G #0063

2шт.

3

P933-064032

HOSE ASSY-ORFS 0X90

25G #0064

2шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

30G #0009

2шт.

3

P933-064032

HOSE ASSY-ORFS 0X90

30G #0010

2шт.

4

P913-064025

HOSE ASSY-ORFS 0X0

2шт.

4

P913-064022

HOSE ASSY-ORFS 0X90

20G #0001

2шт.

4

P913-064025

HOSE ASSY-ORFS 0X90

25G #0063

2шт.

4

P913-064022

HOSE ASSY-ORFS 0X90

25G #0064

2шт.

4

P913-064025

HOSE ASSY-ORFS 0X90

30G #0009

2шт.

4

P913-064022

HOSE ASSY-ORFS 0X90

30G #0010

2шт.

5

33HA-90500

PIPE WA

1шт.

6

33HA-90600

PIPE WA

1шт.

7

34FG-90201

PULLEY-HOSE

20G

1шт.

7

34FG-90201

PULLEY-HOSE

25G #0058

2шт.

7

34FG-90201

PULLEY-HOSE

25G #0059

1шт.

7

34FG-90201

PULLEY-HOSE

30G #0009

2шт.

7

34FG-90201

PULLEY-HOSE

30G #0010

1шт.

8

31FV-90130

PIN-HOSE PULLEY

2шт.

9

S017-120756

BOLT-HEX

20G

2шт.

9

S017-120606

BOLT-HEX

25G #0058

2шт.

9

S017-120756

BOLT-HEX

25G #0059

2шт.

9

S017-120606

BOLT-HEX

30G #0009

2шт.

9

S017-120756

BOLT-HEX

30G #0010

2шт.

10

S411-120006

WASHER-SPRING

3шт.

103

31FG-80400

ELBOW-90

SIDE SHIFT

1шт.

11

S441-120006

WASHER-HARDENED

25G #0058

1шт.

11

S441-120006

WASHER-HARDENED

30G #0009

1шт.

12

33HA-90801

BRACKET WA-PULLEY

1шт.

13

34FG-90270

COVER

1шт.

14

S035-081526

BOLT-W/WASHER

4шт.

15

S037-102526

BOLT-W/WASHER

4шт.

16

S017-120506

BOLT-HEX

1шт.

18

S017-101406

BOLT-HEX

1шт.

19

S275-100006

NUT-SELF LOCKING

1шт.

20

S403-102006

WASHER-PLAIN

1шт.

21

31FG-80210

CONNECTOR

4шт.

22

31FG-80430

NUT-HEX

4шт.

23

34FG-90210

PIPE WA

25G #0058

2шт.

23

34FG-90210

PIPE WA

30G #0009

2шт.

24

S037-102026

BOLT-W/WASHER

25G #0058

4шт.

24

S037-102026

BOLT-W/WASHER

30G #0009

4шт.

25

34FK-90401

BLOCK WA

2шт.

26

X710-100103

CAP

4шт.

27

S552-102370

CLAMP-BAND

6шт.

28

34FG-90260

CLAMP-HOSE

4шт.

29

S035-063526

BOLT-W/WASHER

20G

10шт.

29

S035-063526

BOLT-W/WASHER

25G #0058

8шт.

29

S035-063526

BOLT-W/WASHER

25G #0059

10шт.

29

S035-063526

BOLT-W/WASHER

30G #0009

8шт.

29

S035-063526

BOLT-W/WASHER

30G #0010

10шт.

31

S471-800162

PIN-SPRING

1шт.

32

34FG-90351

PIN-HOSE PULLEY

2шт.

33

31FQ-10070

CONNECTOR

2шт.

34

31N5-30050

CONNECTOR

2шт.

35

33HD-90370

PULLEY-HOSE

1шт.

36

33HN-80100

PULLEY ASSY-HOSE

20G

1шт.

36

33HN-80100

PULLEY ASSY-HOSE

25G #0058

1шт.

36

33HN-80100

PULLEY ASSY-HOSE

30G #0009

1шт.

37

33HN-90600

SPACER

20G

2шт.

37

33HN-90600

SPACER

25G #0058

2шт.

37

33HN-90600

SPACER

30G #0009

2шт.

38

33HN-90311

BRACKET-PULLEY

20G

1шт.

38

33HN-90311

BRACKET-PULLEY

25G #0058

1шт.

38

33HN-90311

BRACKET-PULLEY

30G #0009

1шт.

39

S035-083536

BOLT-W/WASHER

20G

2шт.

39

S035-083536

BOLT-W/WASHER

25G #0058

2шт.

39

S035-083536

BOLT-W/WASHER

30G #0009

2шт.

40

33HN-90901

BRACKET

20G

1шт.

40

33HN-90901

BRACKET

25G #0058

1шт.

40

33HN-90901

BRACKET

30G #0009

1шт.

41

33HN-90700

BRACKET

20G

1шт.

41

33HN-90700

BRACKET

25G #0058

1шт.

41

33HN-90700

BRACKET

30G #0009

1шт.

42

33HN-90811

BRACKET

20G

1шт.

42

33HN-90811

BRACKET

25G #0058

1шт.

42

33HN-90811

BRACKET

30G #0009

1шт.

43

S035-083036

BOLT-W/WASHER

20G

2шт.

43

S035-083036

BOLT-W/WASHER

25G #0058

2шт.

43

S035-083036

BOLT-W/WASHER

30G #0009

2шт.

44

34FG-90460

CLAMP-HOSE

20G

1шт.

44

34FG-90460

CLAMP-HOSE

25G #0058

1шт.

44

34FG-90460

CLAMP-HOSE

30G #0009

1шт.

45

S035-082516

BOLT-W/WASHER

20G

4шт.

45

S035-082516

BOLT-W/WASHER

25G #0058

4шт.

45

S035-082516

BOLT-W/WASHER

30G #0009

4шт.

101

P933-064007

HOSE ASSY-ORFS 0X90

20/25G,S/S

1шт.

101

P933-064006

HOSE ASSY-ORFS 0X90

30G,S/SHIFT

1шт.

102

P933-064011

HOSE ASSY-ORFS 0X90

SIDE SHIFT

1шт.

103

31FG-80400

ELBOW-90

SIDE SHIFT

1шт.

104

X500-310002

CONNECTOR-ORFS

SIDE SHIFT

1шт.

105

X850-525200

ELBOW-90,SWIVEL,ORFS

SIDE SHIFT

1шт.

Выбрано товаров: 170
