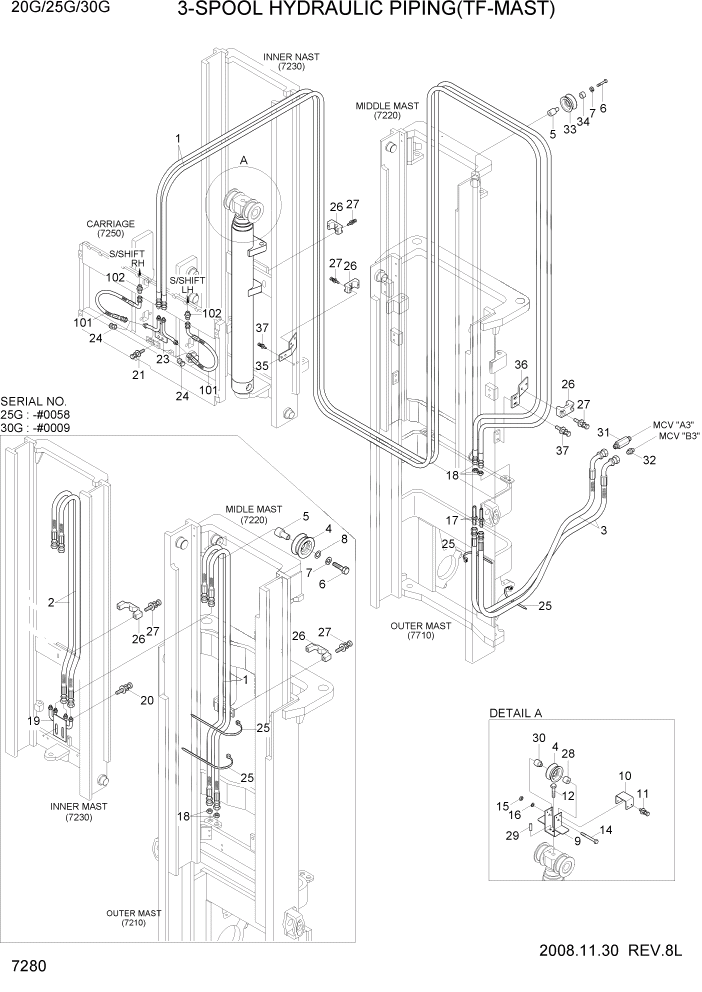

Запчасти Hyundai 20/25/30G-7 PAGE 7280 3-SPOOL HYDRAULIC PIPING(TF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370

2шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400

2шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430

2шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450

2шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470

2шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500

2шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550

2шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600

2шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650

2шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700

2шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370

2шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400

2шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430

2шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450

2шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470

2шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550

2шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600

2шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650

2шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700

2шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

2шт.

4

34FG-90201

PULLEY-HOSE

1шт.

5

31FV-90130

PIN-H/PULLEY

1шт.

6

S017-120606

BOLT-HEX

1шт.

7

S411-120006

WASHER-SPRING

1шт.

8

S441-120006

WASHER-HARDENED

1шт.

9

33HA-90701

BRACKET WA

1шт.

10

33HA-90751

COVER

1шт.

11

S035-081526

BOLT-W/WASHER

4шт.

12

S017-120456

BOLT-HEX

1шт.

13

S411-120006

WASHER-SPRING

1шт.

14

S017-101006

BOLT-HEX

1шт.

15

S275-100006

NUT-SELF LOCKING

1шт.

16

S403-102006

WASHER-PLAIN

1шт.

17

31FG-80210

CONNECTOR

2шт.

18

31FG-80430

NUT-HEX

4шт.

19

34FG-90210

PIPE WA

1шт.

20

S037-102026

BOLT-W/WASHER

2шт.

21

S037-104026

BOLT-W/WASHER

2шт.

23

33HA-90401

PIPE WA

1шт.

24

X710-100103

CAP-HYD,ORFS

2шт.

25

S552-102370

CLAMP-BAND

3шт.

26

34FG-90260

CLAMP-HOSE

2шт.

27

S035-063526

BOLT-W/WASHER

4шт.

28

34FG-90330

SPACER

1шт.

29

S471-800162

PIN-SPRING

1шт.

30

34FG-90370

PIN-HOSE PULLEY

1шт.

31

31FQ-10070

CONNECTOR

1шт.

32

31N5-30050

CONNECTOR-ORFS

1шт.

101

P933-064007

HOSE ASSY-ORFS 0X90

SIDE SHIFT

2шт.

102

X500-310002

CONNECTOR-ORFS

SIDE SHIFT

2шт.

1

P910-064087

HOSE ASSY-ORFS 0X0

TF370,20G

2шт.

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370,25G #0058

2шт.

1

P910-064087

HOSE ASSY-ORFS 0X0

TF370,25G #0059

2шт.

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370,30G #0009

2шт.

1

P910-064087

HOSE ASSY-ORFS 0X0

TF370,30G #0010

2шт.

1

P910-064093

HOSE ASSY-ORFS 0X0

TF400,20G

2шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400,25G #0058

2шт.

1

P910-064093

HOSE ASSY-ORFS 0X0

TF400,25G #0059

2шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400,30G #0009

2шт.

1

P910-064093

HOSE ASSY-ORFS 0X0

TF400,30G #0010

2шт.

1

P910-064099

HOSE ASSY-ORFS 0X0

TF430,20G

2шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430,25G #0058

2шт.

1

P910-064099

HOSE ASSY-ORFS 0X0

TF430,25G #0059

2шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430,30G #0009

2шт.

1

P910-064099

HOSE ASSY-ORFS 0X0

TF430,30G #0010

2шт.

1

P910-064104

HOSE ASSY-ORFS 0X0

TF450,20G

2шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450,25G #0058

2шт.

1

P910-064104

HOSE ASSY-ORFS 0X0

TF450,25G #0059

2шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450,30G #0009

2шт.

1

P910-064104

HOSE ASSY-ORFS 0X0

TF450,30G #0010

2шт.

1

P910-064108

HOSE ASSY-ORFS 0X0

TF470,20G

2шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470,25G #0058

2шт.

1

P910-064108

HOSE ASSY-ORFS 0X0

TF470,25G #0059

2шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470,30G #0009

2шт.

1

P910-064108

HOSE ASSY-ORFS 0X0

TF470,30G #0010

2шт.

1

P910-064114

HOSE ASSY-ORFS 0X0

TF500,20G

2шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500,25G #0058

2шт.

1

P910-064114

HOSE ASSY-ORFS 0X0

TF500,25G #0059

2шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500,30G #0009

2шт.

1

P910-064114

HOSE ASSY-ORFS 0X0

TF500,30G #0010

2шт.

1

P910-064125

HOSE ASSY-ORFS 0X0

TF550,20G

2шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550,25G #0058

2шт.

1

P910-064125

HOSE ASSY-ORFS 0X0

TF550,25G #0059

2шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550,30G #0009

2шт.

1

P910-064125

HOSE ASSY-ORFS 0X0

TF550,30G #0010

2шт.

1

P910-064137

HOSE ASSY-ORFS 0X0

TF600,20G

2шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600,25G #0058

2шт.

1

P910-064137

HOSE ASSY-ORFS 0X0

TF600,25G #0059

2шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600,30G #0009

2шт.

1

P910-064137

HOSE ASSY-ORFS 0X0

TF600,30G #0010

2шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650,25G #0058

2шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650,30G #0009

2шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700,25G #0058

2шт.

1

P910-064092

HOSE ASSY-ORFS 0X0

TF700,30G #0009

2шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370,25G #0058

2шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370,30G #0009

2шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400,25G #0058

2шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400,30G #0009

2шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430,25G #0058

2шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430,30G #0009

2шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450,25G #0058

2шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450,30G #0009

2шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470,25G #0058

2шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470,30G #0009

2шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500,25G #0058

2шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500,30G #0009

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550,25G #0058

2шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550,30G #0009

2шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600,25G #0058

2шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600,30G #0009

2шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650,25G #0058

2шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650,30G #0009

2шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700,25G #0058

2шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

TF700,30G #0009

2шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

2шт.

3

P933-064032

HOSE ASSY-ORFS 0X90

20G #0001

2шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

25G #0063

2шт.

3

P933-064032

HOSE ASSY-ORFS 0X90

25G #0064

2шт.

3

P933-064027

HOSE ASSY-ORFS 0X90

30G #0009

2шт.

3

P933-064032

HOSE ASSY-ORFS 0X90

30G #0010

2шт.

4

34FG-90201

PULLEY-HOSE

1шт.

5

31FV-90130

PIN-HOSE PULLEY

1шт.

6

S017-120756

BOLT-HEX

20G

1шт.

6

S017-120606

BOLT-HEX

25G #0058

1шт.

6

S017-120756

BOLT-HEX

25G #0059

1шт.

6

S017-120606

BOLT-HEX

30G #0009

1шт.

6

S017-120756

BOLT-HEX

30G #0010

1шт.

7

S411-120006

WASHER-SPRING

1шт.

8

S441-120006

WASHER-HARDENED

25G #0058

1шт.

8

S441-120006

WASHER-HARDENED

30G #0009

1шт.

9

33HA-90701

BRACKET WA-PULLEY

1шт.

10

33HA-90751

COVER

1шт.

11

S035-081526

BOLT-W/WASHER

4шт.

12

S017-120506

BOLT-HEX

1шт.

14

S017-101006

BOLT-HEX

1шт.

15

S275-100006

NUT-SELF LOCKING

1шт.

16

S403-102006

WASHER-PLAIN

1шт.

17

31FG-80210

CONNECTOR

2шт.

18

31FG-80430

NUT-HEX

4шт.

19

34FG-90210

PIPE WA

25G #0058

1шт.

19

34FG-90210

PIPE WA

30G #0009

1шт.

20

S037-102026

BOLT-W/WASHER

25G #0058

2шт.

20

S037-102026

BOLT-W/WASHER

30G #0009

2шт.

21

S037-103026

BOLT-W/WASHER

2шт.

23

33HA-90401

PIPE WA

1шт.

24

X710-100103

CAP

2шт.

25

S552-102370

CLAMP-BAND

3шт.

26

34FG-90260

CLAMP-HOSE

20G

3шт.

26

34FG-90260

CLAMP-HOSE

25G #0058

2шт.

26

34FG-90260

CLAMP-HOSE

25G #0059

3шт.

26

34FG-90260

CLAMP-HOSE

30G #0009

2шт.

26

34FG-90260

CLAMP-HOSE

30G #0010

3шт.

27

S035-063526

BOLT-W/WASHER

20G

6шт.

27

S035-063526

BOLT-W/WASHER

25G #0058

4шт.

27

S035-063526

BOLT-W/WASHER

25G #0059

6шт.

27

S035-063526

BOLT-W/WASHER

30G #0009

4шт.

27

S035-063526

BOLT-W/WASHER

30G #0010

6шт.

28

34FG-90330

SPACER

1шт.

30

34FG-90370

PIN-HOSE PULLEY

1шт.

29

S471-800162

PIN-SPRING

1шт.

31

31FQ-10070

CONNECTOR

1шт.

32

31N5-30050

CONNECTOR

1шт.

33

33HN-80100

PULLEY ASSY-HOSE

20G

1шт.

33

33HN-80100

PULLEY ASSY-HOSE

25G #0059

1шт.

33

33HN-80100

PULLEY ASSY-HOSE

30G #0010

1шт.

34

33HN-90600

SPACER

20G

1шт.

34

33HN-90600

SPACER

25G #0059

1шт.

34

33HN-90600

SPACER

30G #0010

1шт.

35

33HN-90901

BRACKET

20G

1шт.

35

33HN-90901

BRACKET

25G #0059

1шт.

35

33HN-90901

BRACKET

30G #0010

1шт.

36

33HN-90700

BRACKET

20G

1шт.

36

33HN-90700

BRACKET

25G #0059

1шт.

36

33HN-90700

BRACKET

30G #0010

1шт.

37

S035-082516

BOLT-W/WASHER

20G

4шт.

37

S035-082516

BOLT-W/WASHER

25G #0059

4шт.

37

S035-082516

BOLT-W/WASHER

30G #0010

4шт.

101

P933-064007

HOSE ASSY-ORFS 0X90

20/25G, S/SHIFT

2шт.

101

P933-064007

HOSE ASSY-ORFS 0X90

30G, S/SHIFT #0002

2шт.

101

P933-064009

HOSE ASSY-ORFS 0X90

30G, S/SHIFT #0003

2шт.

102

X500-310002

CONNECTOR-ORFS

SIDE SHIFT

2шт.
