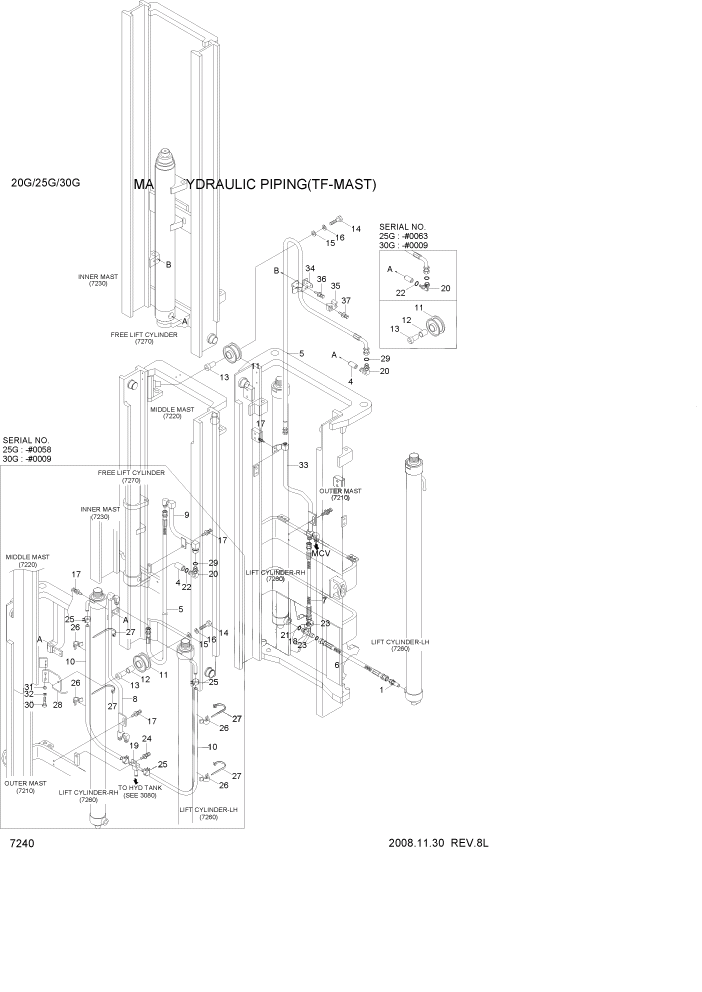

Запчасти Hyundai 20/25/30G-7 PAGE 7240 MAST HYDRAULIC PIPING(TF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ
№
Артикул
Название
Примечание
Количество
4
EE19170100
DOWN SAFETY VALVE
1шт.
5
P930-104041
HOSE ASSY-ORFS 0X90
TF370,20G
1шт.
5
P910-104032
HOSE ASSY-ORFS 0X0
TF370,25G #0058
1шт.
5
P930-104041
HOSE ASSY-ORFS 0X90
TF370,25G #0059
1шт.
5
P910-104032
HOSE ASSY-ORFS 0X0
TF370,30G #0009
1шт.
5
P930-104041
HOSE ASSY-ORFS 0X90
TF370,30G #0010
1шт.
5
P910-104036
HOSE ASSY-ORFS 0X0
TF430
1шт.
5
P930-104045
HOSE ASSY-ORFS 0X0
TF400,20G
1шт.
5
P910-104034
HOSE ASSY-ORFS 0X0
TF400,25G #0058
1шт.
5
P930-104045
HOSE ASSY-ORFS 0X0
TF400,25G #0059
1шт.
5
P910-104034
HOSE ASSY-ORFS 0X0
TF400,30G #0009
1шт.
5
P930-104045
HOSE ASSY-ORFS 0X0
TF400,30G #0010
1шт.
5
P910-104041
HOSE ASSY-ORFS 0X0
TF500
1шт.
5
P930-104049
HOSE ASSY-ORFS 0X90
TF430,20G
1шт.
5
P910-104036
HOSE ASSY-ORFS 0X0
TF430,25G #0058
1шт.
5
P930-104049
HOSE ASSY-ORFS 0X90
TF430,25G #0059
1шт.
5
P910-104036
HOSE ASSY-ORFS 0X0
TF430,30G #0009
1шт.
5
P930-104049
HOSE ASSY-ORFS 0X90
TF430,30G #0010
1шт.
5
P910-104053
HOSE ASSY-ORFS 0X0
TF650
1шт.
5
P930-104053
HOSE ASSY-ORFS 0X0
TF450,20G
1шт.
5
P910-104038
HOSE ASSY-ORFS 0X0
TF450,25G #0058
1шт.
5
P930-104053
HOSE ASSY-ORFS 0X0
TF450,25G #0059
1шт.
5
P910-104038
HOSE ASSY-ORFS 0X0
TF450,30G #0009
1шт.
5
P930-104053
HOSE ASSY-ORFS 0X0
TF450,30G #0010
1шт.
7
P913-084011
HOSE ASSY-ORFS 0X0
1шт.
5
P930-104055
HOSE ASSY-ORFS 0X0
TF470,20G
1шт.
8
33HA-84003
PIPE WA
TF370, 20G
1шт.
8
33HA-84002
PIPE WA
TF370, 25G #0026
1шт.
8
33HA-84003
PIPE WA
TF370, 25G #0027
1шт.
5
P910-104039
HOSE ASSY-ORFS 0X0
TF470,25G #0058
1шт.
8
33HA-84003
PIPE WA
TF370, 30G #0012
1шт.
5
P930-104055
HOSE ASSY-ORFS 0X0
TF470,25G #0059
1шт.
8
33HA-84013
PIPE WA
TF400, 20G
1шт.
8
33HA-84012
PIPE WA
TF400, 25G #0026
1шт.
8
33HA-84013
PIPE WA
TF400, 25G #0027
1шт.
5
P910-104039
HOSE ASSY-ORFS 0X0
TF470,30G #0009
1шт.
8
33HA-84013
PIPE WA
TF400, 30G #0012
1шт.
5
P930-104055
HOSE ASSY-ORFS 0X0
TF470,30G #0010
1шт.
8
33HA-84023
PIPE WA
TF430, 20G
1шт.
8
33HA-84022
PIPE WA
TF430, 25G #0026
1шт.
8
33HA-84023
PIPE WA
TF430, 25G #0027
1шт.
8
33HA-84022
PIPE WA
TF430, 30G #0011
1шт.
8
33HA-84023
PIPE WA
TF430, 30G #0012
1шт.
5
P930-104059
HOSE ASSY-ORFS 0X0
TF500,20G
1шт.
8
33HA-84033
PIPE WA
TF450, 20G
1шт.
8
33HA-84032
PIPE WA
TF450, 25G #0026
1шт.
8
33HA-84033
PIPE WA
TF450, 25G #0027
1шт.
8
33HA-84032
PIPE WA
TF450, 30G #0011
1шт.
8
33HA-84033
PIPE WA
TF450, 30G #0012
1шт.
5
P910-104041
HOSE ASSY-ORFS 0X0
TF500,25G #0058
1шт.
5
P930-104059
HOSE ASSY-ORFS 0X0
TF500,25G #0059
1шт.
8
33HA-84043
PIPE WA
TF470, 20G
1шт.
8
33HA-84042
PIPE WA
TF470, 25G #0026
1шт.
8
33HA-84043
PIPE WA
TF470, 25G #0027
1шт.
8
33HA-84042
PIPE WA
TF470, 30G #0011
1шт.
8
33HA-84043
PIPE WA
TF470, 30G #0012
1шт.
5
P910-104041
HOSE ASSY-ORFS 0X0
TF500,30G #0009
1шт.
5
P930-104059
HOSE ASSY-ORFS 0X0
TF500,30G #0010
1шт.
8
33HA-84053
PIPE WA
TF500, 20G
1шт.
8
33HA-84052
PIPE WA
TF500, 25G #0026
1шт.
8
33HA-84053
PIPE WA
TF500, 25G #0027
1шт.
8
33HA-84052
PIPE WA
TF500, 30G #0011
1шт.
8
33HA-84053
PIPE WA
TF500, 30G #0012
1шт.
5
P930-104067
HOSE ASSY-ORFS 0X0
TF550,20G
1шт.
8
33HA-84063
PIPE WA
TF550, 20G
1шт.
8
33HA-84062
PIPE WA
TF550, 25G #0026
1шт.
8
33HA-84063
PIPE WA
TF550, 25G #0027
1шт.
8
33HA-84062
PIPE WA
TF550, 30G #0011
1шт.
8
33HA-84063
PIPE WA
TF550, 30G #0012
1шт.
5
P910-104045
HOSE ASSY-ORFS 0X0
TF550,25G #0058
1шт.
5
P930-104067
HOSE ASSY-ORFS 0X0
TF550,25G #0059
1шт.
8
33HA-84073
PIPE WA
TF600, 20G
1шт.
8
33HA-84072
PIPE WA
TF600, 25G #0026
1шт.
8
33HA-84073
PIPE WA
TF600, 25G #0027
1шт.
8
33HA-84072
PIPE WA
TF600, 30G #0011
1шт.
8
33HA-84073
PIPE WA
TF600, 30G #0012
1шт.
5
P910-104045
HOSE ASSY-ORFS 0X0
TF550,30G #0009
1шт.
5
P930-104067
HOSE ASSY-ORFS 0X0
TF550,30G #0010
1шт.
8
33HA-84083
PIPE WA
TF650, 20G
1шт.
8
33HA-84082
PIPE WA
TF650, 25G #0026
1шт.
8
33HA-84083
PIPE WA
TF650, 25G #0027
1шт.
8
33HA-84082
PIPE WA
TF650, 30G #0011
1шт.
8
33HA-84083
PIPE WA
TF650, 30G #0012
1шт.
5
P930-104075
HOSE ASSY-ORFS 0X90
TF600,20G
1шт.
8
33HA-84093
PIPE WA
TF700, 20G
1шт.
8
33HA-84092
PIPE WA
TF700, 25G #0026
1шт.
8
33HA-84093
PIPE WA
TF700, 25G #0027
1шт.
8
33HA-84092
PIPE WA
TF700, 30G #0011
1шт.
8
33HA-84093
PIPE WA
TF700, 30G #0012
1шт.
5
P910-104049
HOSE ASSY-ORFS 0X0
TF600,25G #0058
1шт.
5
P930-104075
HOSE ASSY-ORFS 0X90
TF600,25G #0059
1шт.
5
P910-104049
HOSE ASSY-ORFS 0X0
TF600,30G #0009
1шт.
5
P930-104075
HOSE ASSY-ORFS 0X90
TF600,30G #0010
1шт.
10
P760-013095
HOSE-RUBBER
TF430
2шт.
5
P910-104053
HOSE ASSY-ORFS 0X0
TF650,25G #0058
1шт.
5
P910-104053
HOSE ASSY-ORFS 0X0
TF650,30G #0009
1шт.
10
P760-013120
HOSE-RUBBER
TF500
2шт.
5
P910-104057
HOSE ASSY-ORFS 0X0
TF700,25G #0058
1шт.
5
P910-104057
HOSE ASSY-ORFS 0X0
TF700,30G #0009
1шт.
6
31HA-82000
HOSE ASSY-ORFS 0X0
1шт.
7
P913-084011
HOSE ASSY-ORFS 0X0
1шт.
11
FMB0200610
PULLEY-HOSE
1шт.
12
S731-020025
BUSHING-DU
1шт.
8
33HA-84002
PIPE WA
TF370, 25G #0026
1шт.
8
33HA-84003
PIPE WA
TF370, 25G #0027 - #0058
1шт.
8
33HA-84002
PIPE WA
TF370, 30G #0009
1шт.
8
33HA-84003
PIPE WA
TF370, 30G #0010 - #0010
1шт.
17
S035-082036
BOLT-W/WASHER
5шт.
18
X820-085353
TEE-R/TYPE,ORFS
1шт.
8
33HA-84012
PIPE WA
TF400, 25G #0026
1шт.
8
33HA-84013
PIPE WA
TF400, 25G #0027 - #0058
1шт.
8
33HA-84012
PIPE WA
TF400, 30G #0009
1шт.
8
33HA-84013
PIPE WA
TF400, 30G #0010 - #0010
1шт.
8
33HA-84022
PIPE WA
TF430, 25G #0026
1шт.
25
33HA-83350
CLIP-HOSE
20G, 25G
4шт.
25
S520-015000
CLAMP-HOSE
30G #0002
4шт.
25
33HA-83350
CLIP-HOSE
30G #0003
4шт.
8
33HA-84023
PIPE WA
TF430, 25G #0027 - #0058
1шт.
8
33HA-84022
PIPE WA
TF430, 30G #0009
1шт.
8
33HA-84023
PIPE WA
TF430, 30G #0010 - #0010
1шт.
28
33HA-83011
PLATE WA
25G #0007
1шт.
28
33HA-83012
PLATE WA
25G #0008
1шт.
28
33HA-83011
PLATE WA
30G #0002
1шт.
28
33HA-83012
PLATE WA
30G #0003
1шт.
30
S017-100206
BOLT-HEX
2шт.
8
33HA-84032
PIPE WA
TF450, 25G #0026
1шт.
8
33HA-84033
PIPE WA
TF450, 25G #0027 - #0058
1шт.
8
33HA-84032
PIPE WA
TF450, 30G #0009
1шт.
8
33HA-84033
PIPE WA
TF450, 30G #0010 - #0010
1шт.
8
33HA-84042
PIPE WA
TF470, 25G #0026
1шт.
8
33HA-84043
PIPE WA
TF470, 25G #0027 - #0058
1шт.
8
33HA-84042
PIPE WA
TF470, 30G #0009
1шт.
8
33HA-84043
PIPE WA
TF470, 30G #0010 - #0010
1шт.
8
33HA-84052
PIPE WA
TF500, 25G #0026
1шт.
8
33HA-84053
PIPE WA
TF500, 25G #0027 - #0058
1шт.
8
33HA-84052
PIPE WA
TF500, 30G #0009
1шт.
8
33HA-84053
PIPE WA
TF500, 30G #0010 - #0010
1шт.
8
33HA-84062
PIPE WA
TF550, 25G #0026
1шт.
8
33HA-84063
PIPE WA
TF550, 25G #0027 - #0058
1шт.
8
33HA-84062
PIPE WA
TF550, 30G #0009
1шт.
8
33HA-84063
PIPE WA
TF550, 30G #0010 - #0010
1шт.
8
33HA-84072
PIPE WA
TF600, 25G #0026
1шт.
8
33HA-84073
PIPE WA
TF600, 25G #0027 - #0058
1шт.
8
33HA-84072
PIPE WA
TF600, 30G #0009
1шт.
8
33HA-84073
PIPE WA
TF600, 30G #0010 - #0010
1шт.
8
33HA-84082
PIPE WA
TF650, 25G #0026
1шт.
8
33HA-84083
PIPE WA
TF650, 25G #0027 - #0058
1шт.
8
33HA-84082
PIPE WA
TF650, 30G #0009
1шт.
8
33HA-84083
PIPE WA
TF650, 30G #0010 - #0010
1шт.
8
33HA-84092
PIPE WA
TF700, 25G #0026
1шт.
8
33HA-84093
PIPE WA
TF700, 25G #0027 - #0058
1шт.
8
33HA-84092
PIPE WA
TF700, 30G #0009
1шт.
8
33HA-84093
PIPE WA
TF700, 30G #0010 - #0010
1шт.
9
34FG-82002
PIPE WA
25G #0058
1шт.
9
34FG-82002
PIPE WA
30G #0009
1шт.
10
P760-013075
HOSE-RUBBER
TF370,25G #0058
2шт.
10
P760-013075
HOSE-RUBBER
TF370,30G #0009
2шт.
10
P760-013085
HOSE-RUBBER
TF400,25G #0058
2шт.
10
P760-013085
HOSE-RUBBER
TF400,30G #0009
2шт.
10
P760-013095
HOSE-RUBBER
TF430,25G #0058
2шт.
10
P760-013095
HOSE-RUBBER
TF430,30G #0009
2шт.
10
P760-013105
HOSE-RUBBER
TF450,25G #0058
2шт.
10
P760-013105
HOSE-RUBBER
TF450,30G #0009
2шт.
10
P760-013110
HOSE-RUBBER
TF470,25G #0058
2шт.
10
P760-013110
HOSE-RUBBER
TF470,30G #0009
2шт.
10
P760-013120
HOSE-RUBBER
TF500,25G #0058
2шт.
10
P760-013120
HOSE-RUBBER
TF500,30G #0009
2шт.
10
P760-013140
HOSE-RUBBER
TF550,25G #0058
2шт.
10
P760-013140
HOSE-RUBBER
TF550,30G #0009
2шт.
10
P760-013160
HOSE-RUBBER
TF600,25G #0058
2шт.
10
P760-013160
HOSE-RUBBER
TF600,30G #0009
2шт.
10
P760-013180
HOSE-RUBBER
TF650,25G #0058
2шт.
10
P760-013180
HOSE-RUBBER
TF650,30G #0009
2шт.
10
P760-013200
HOSE-RUBBER
TF700,25G #0058
2шт.
10
P760-013200
HOSE-RUBBER
TF700,30G #0009
2шт.
11
FMB0200610
PULLEY-HOSE
1шт.
11
33HH-80500
PULLEY-HOSE
20G #0001
1шт.
11
FMB0200610
PULLEY-HOSE
25G #0063
1шт.
11
33HH-80500
PULLEY-HOSE
25G #0064
1шт.
11
FMB0200610
PULLEY-HOSE
30G #0009
1шт.
11
33HH-80500
PULLEY-HOSE
30G #0010
1шт.
12
S731-020025
BUSHING-DU
1шт.
12
S731-020025
BUSHING-DU
25G #0063
1шт.
12
S731-020025
BUSHING-DU
30G #0009
1шт.
13
33FY-85010
PIN-HOSE PULLEY
20G
1шт.
13
33FY-85000
PIN-HOSE PULLEY
25G #0063
1шт.
13
33FY-85010
PIN-HOSE PULLEY
25G #0064
1шт.
13
33FY-85000
PIN-HOSE PULLEY
30G #0009
1шт.
13
33FY-85010
PIN-HOSE PULLEY
30G #0010
1шт.
14
S017-120606
BOLT-HEX
20G
1шт.
14
S017-120606
BOLT-HEX
25G #0059
1шт.
14
S017-120606
BOLT-HEX
30G #0010
1шт.
17
S035-082036
BOLT-W/WASHER
20G
2шт.
17
S035-082036
BOLT-W/WASHER
25G #0058
5шт.
17
S035-082036
BOLT-W/WASHER
25G #0059
2шт.
17
S035-082036
BOLT-W/WASHER
30G #0009
5шт.
17
S035-082036
BOLT-W/WASHER
30G #0010
2шт.
18
X820-085353
TEE-R/TYPE,ORFS
1шт.
19
31FG-80501
TEE-RETURN
25G #0058
1шт.
19
31FG-80501
TEE-RETURN
30G #0009
1шт.
20
X520-110023
ELBOW-90,ORFS
1шт.
21
S631-018004
O-RING
1шт.
25
S520-015000
CLAMP-HOSE
30G #0002
4шт.
25
33HA-83350
CLIP-HOSE
30G #0003 - #0009
4шт.
26
S552-102370
CLAMP-BAND
25G #0058
4шт.
26
S552-102370
CLAMP-BAND
30G #0009
4шт.
27
31FA-80110
CLAMP-HOSE
25G #0058
4шт.
27
31FA-80110
CLAMP-HOSE
30G #0009
4шт.
28
33HA-83011
PLATE WA
25G #0007
1шт.
28
33HA-83012
PLATE WA
25G #0008 - #0058
1шт.
28
33HA-83011
PLATE WA
30G #0002
1шт.
28
33HA-83012
PLATE WA
30G #0003 - #0009
1шт.
30
S017-100206
BOLT-HEXAGON HEAD
25G #0058
2шт.
30
S017-100206
BOLT-HEXAGON HEAD
30G #0009
2шт.
33
33HN-80700
PIPE WA
20G
1шт.
33
33HN-80700
PIPE WA
25G #0059
1шт.
33
33HN-80700
PIPE WA
30G #0010
1шт.
34
33HN-80230
PIPE WA
20G
1шт.
34
33HN-80230
PIPE WA
25G #0059
1шт.
34
33HN-80230
PIPE WA
30G #0010
1шт.
35
33HN-80161
CLAMP-HOSE
20G
1шт.
35
33HN-80161
CLAMP-HOSE
25G #0059
1шт.
35
33HN-80161
CLAMP-HOSE
30G #0010
1шт.
37
S035-063526
BOLT-W/WASHER
20G
2шт.
37
S035-063526
BOLT-W/WASHER
25G #0059
2шт.
37
S035-063526
BOLT-W/WASHER
30G #0010
2шт.
Выбрано товаров: 249
