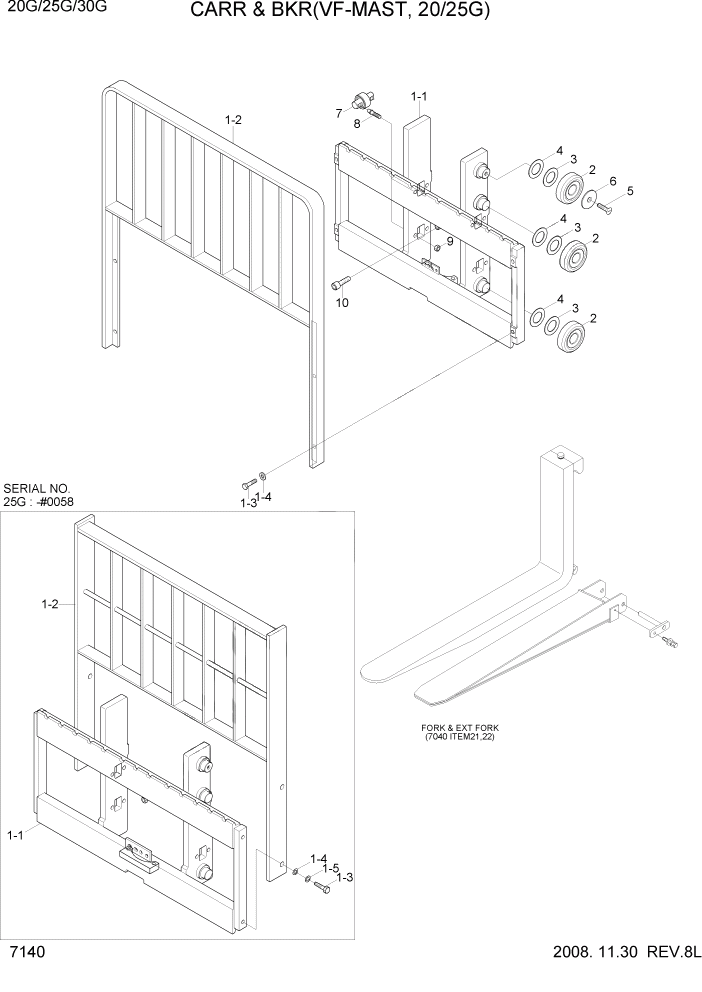

Запчасти Hyundai 20/25/30G-7 PAGE 7140 CARRIAGE & BACKREST(VF-MAST,20/25G) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

62FG-27040

CARR & BACKREST ASSY

SINGLE

1шт.

*

62FG-27061

CARR & BACKREST ASSY

DOUBLE

1шт.

1

62FG-25040

CARR & BACKREST ASSY

SINGLE

1шт.

1

62FG-25061

CARR & BACKREST ASSY

DOUBLE

1шт.

1

62HN-25010

CARR & BKR SUB ASSY

SINGLE,20G

1шт.

1

62FG-25040

CARR & BKR SUB ASSY

SINGLE,25G #0058

1шт.

1

62HN-25010

CARR & BKR SUB ASSY

SINGLE,25G #0059

1шт.

1-2

61FG-24630

BACKREST WA

DOUBLE

1шт.

1

62HN-25020

CARR & BKR SUB ASSY

DOUBLE,20G

1шт.

1

62FG-25061

CARR & BKR SUB ASSY

DOUBLE,25G #0058

1шт.

1

62HN-25020

CARR & BKR SUB ASSY

DOUBLE,25G #0059

1шт.

1-1

62HN-21011

CARRIAGE WA

SINGLE,20G

1шт.

1-1

62FG-22050

CARRIAGE WA

SINGLE,25G #0058

1шт.

1-1

62HN-21011

CARRIAGE WA

SINGLE,25G #0059

1шт.

1-1

62HN-21021

CARRIAGE WA

DOUBLE,20G

1шт.

1-1

62FG-21061

CARRIAGE WA

DOUBLE,25G #0058

1шт.

1-1

62HN-21021

CARRIAGE WA

DOUBLE,25G #0059

1шт.

1-2

61HN-23431

BACKREST WA

SINGLE,20G

1шт.

1-2

61FG-23430

BACKREST WA

SINGLE,25G #0058

1шт.

1-2

61HN-23431

BACKREST WA

SINGLE,25G #0059

1шт.

3

6600187900

SHIM(0.5T)

6шт.

1-2

61HN-23631

BACKREST WA

DOUBLE,20G

1шт.

1-2

61FG-23630

BACKREST WA

DOUBLE,25G #0058

1шт.

1-2

61HN-23631

BACKREST WA

DOUBLE,25G #0059

1шт.

7

61F7-28100

SIDE ROLLER ASSY

4шт.

1-3

S017-120356

BOLT-HEX

20G

4шт.

1-3

S017-160352

BOLT-HEX

25G #0058

4шт.

1-3

S017-120356

BOLT-HEX

25G #0059

4шт.

1-4

S441-12000B

WASHER-HARDENED

20G

4шт.

1-4

S403-161002

WASHER-PLAIN

25G #0058

4шт.

1-4

S441-12000B

WASHER-HARDENED

25G #0059

4шт.

1-5

S411-160002

WASHER-SPRING

25G #0058

4шт.

2

63HK-18100

LOAD R/BRG ASSY

20G,STD #0001

6шт.

2

63HK-18110

LOAD R/BRG ASSY(117.2)

20G,UNDERSIZE #0001

6шт.

2

63HK-18120

LOAD R/BRG ASSY(117.8)

20G,OVERSIZE #0001

6шт.

2

63HK-18130

LOAD R/BRG ASSY(116.9)

20G,SMALLSIZE #0001

6шт.

2

63HK-18100

BEARING-ROLLER

20G

6шт.

2

6600181100-01

BEARING-ROLLER

25G #0063

6шт.

2

63HK-18100

LOAD R/BRG ASSY

25G,STD #0064

6шт.

2

63HK-18110

LOAD R/BRG ASSY(117.2)

25G,UNDERSIZE #0064

6шт.

2

63HK-18120

LOAD R/BRG ASSY(117.8)

25G,OVERSIZE #0064

6шт.

2

63HK-18130

LOAD R/BRG ASSY(116.9)

25G,SMALLSIZE #0064

6шт.

2

6600181100-01

BEARING-ROLLER

25G #0058

6шт.

2

63HK-18100

BEARING-ROLLER

25G #0059

6шт.

3

6600187900

SHIM(0.5T)

6шт.

4

6600188000

SHIM(1.0T)

6шт.

5

61F7-28010

BOLT-FLAT HD

2шт.

6

61F7-28021

WASHER-RETAINING

2шт.

7

61F7-28100

SIDE ROLLER ASSY

4шт.

8

61F4-28040

ADJUSTABLE SCREW

8шт.

9

S205-161006

NUT-HEX

8шт.

10

S109-120306

BOLT-SOCKET

1шт.
