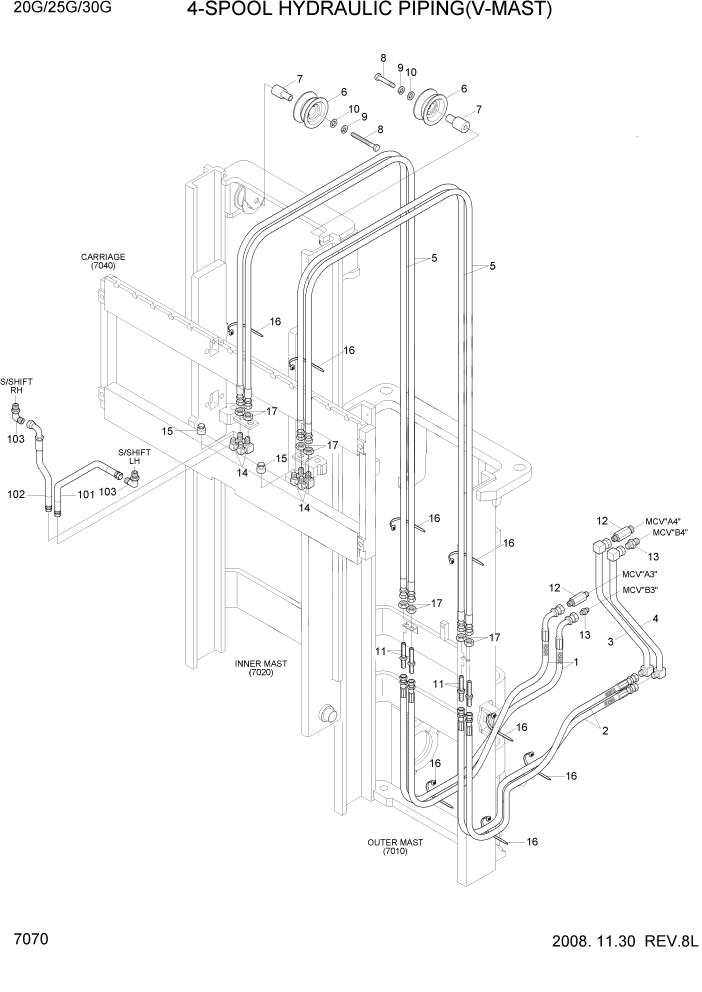

Запчасти Hyundai 20/25/30G-7 PAGE 7070 4-SPOOL HYDRAULIC PIPING(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P933-064032

HOSE ASSY-ORFS 0X90

20G #0001

2шт.

1

P933-064027

HOSE ASSY-ORFS 0X90

25G #0063

2шт.

1

P933-064032

HOSE ASSY-ORFS 0X90

25G #0064

2шт.

1

P933-064027

HOSE ASSY-ORFS 0X90

30G #0009

2шт.

1

P933-064032

HOSE ASSY-ORFS 0X90

30G #0010

2шт.

2

P913-064022

HOSE ASSY-ORFS 0X90

20G #0001

2шт.

2

P913-064025

HOSE ASSY-ORFS 0X90

25G #0063

2шт.

2

P913-064022

HOSE ASSY-ORFS 0X90

25G #0064

2шт.

2

P913-064025

HOSE ASSY-ORFS 0X90

30G #0009

2шт.

2

P913-064022

HOSE ASSY-ORFS 0X90

30G #0010

2шт.

5

P910-064085

HOSE ASSY-ORFS 0X0

V450

4шт.

5

P910-064089

HOSE ASSY-ORFS 0X0

V470

4шт.

5

P910-064095

HOSE ASSY-ORFS 0X0

V500

4шт.

6

34FG-90201

PULLEY-HOSE

2шт.

7

31FV-90140

PIN-H/PULLER

2шт.

8

S017-120606

BOLT-HEX

2шт.

9

S411-120006

WASHER-SPRING

2шт.

10

S441-120006

WASHER-HARDENED

2шт.

11

31FG-80200

CONNECTOR-LONG

4шт.

12

31FQ-10070

CONNECTOR

2шт.

13

31N5-30050

CONNECTOR

2шт.

14

31FS-90500

ELBOW WA

4шт.

15

X710-100103

CAP-HYD,ORFS

4шт.

16

S552-050203

CLAMP-BAND

4шт.

17

31FG-80430

NUT-HEX

12шт.

101

P913-064009

HOSE ASSY-ORFS 0X0

SIDE SHIFT

1шт.

102

P933-064007

HOSE ASSY-ORFS 0X90

SIDE SHIFT

1шт.

103

31FG-80400

ELBOW-90

2.0/2.5TON,S/S

2шт.

103

31FG-80400

ELBOW-90

3.0,S/SHIFT #0002

2шт.

103

31FG-80700

ELBOW-90

3.0,S/SHIFT #0003

2шт.

1

P933-064027

HOSE ASSY-ORFS 0X90

2шт.

2

P913-064025

HOSE ASSY-ORFS 0X0

2шт.

3

33HA-90500

PIPE WA

1шт.

4

33HA-90600

PIPE WA

1шт.

5

P910-064052

HOSE ASSY-ORFS 0X0

V300,20G

4шт.

5

P910-064051

HOSE ASSY-ORFS 0X0

V300,25G #0058

4шт.

5

P910-064052

HOSE ASSY-ORFS 0X0

V300,25G #0059

4шт.

5

P910-064051

HOSE ASSY-ORFS 0X0

V300,30G #0009

4шт.

5

P910-064052

HOSE ASSY-ORFS 0X0

V300,30G #0010

4шт.

5

P910-064058

HOSE ASSY-ORFS 0X0

V330,20G

4шт.

5

P910-064057

HOSE ASSY-ORFS 0X0

V330,25G #0058

4шт.

5

P910-064058

HOSE ASSY-ORFS 0X0

V330,25G #0059

4шт.

5

P910-064057

HOSE ASSY-ORFS 0X0

V330,30G #0009

4шт.

5

P910-064058

HOSE ASSY-ORFS 0X0

V330,30G #0010

4шт.

5

P910-064062

HOSE ASSY-ORFS 0X0

V350,20G

4шт.

5

P910-064061

HOSE ASSY-ORFS 0X0

V350,25G #0058

4шт.

5

P910-064062

HOSE ASSY-ORFS 0X0

V350,25G #0059

4шт.

5

P910-064061

HOSE ASSY-ORFS 0X0

V350,30G #0009

4шт.

5

P910-064062

HOSE ASSY-ORFS 0X0

V350,30G #0010

4шт.

5

P910-064068

HOSE ASSY-ORFS 0X0

V370,20G

4шт.

5

P910-064067

HOSE ASSY-ORFS 0X0

V370,25G #0058

4шт.

5

P910-064068

HOSE ASSY-ORFS 0X0

V370,25G #0059

4шт.

5

P910-064067

HOSE ASSY-ORFS 0X0

V370,30G #0009

4шт.

5

P910-064068

HOSE ASSY-ORFS 0X0

V370,30G #0010

4шт.

5

P910-064074

HOSE ASSY-ORFS 0X0

V400,20G

4шт.

5

P910-064073

HOSE ASSY-ORFS 0X0

V400,25G #0058

4шт.

5

P910-064074

HOSE ASSY-ORFS 0X0

V400,25G #0059

4шт.

5

P910-064073

HOSE ASSY-ORFS 0X0

V400,30G #0009

4шт.

5

P910-064074

HOSE ASSY-ORFS 0X0

V400,30G #0010

4шт.

5

P910-064080

HOSE ASSY-ORFS 0X0

V430,20G

4шт.

5

P910-064079

HOSE ASSY-ORFS 0X0

V430,25G #0058

4шт.

5

P910-064080

HOSE ASSY-ORFS 0X0

V430,25G #0059

4шт.

5

P910-064079

HOSE ASSY-ORFS 0X0

V430,30G #0009

4шт.

5

P910-064080

HOSE ASSY-ORFS 0X0

V430,30G #0010

4шт.

5

P910-064086

HOSE ASSY-ORFS 0X0

V450,20G

4шт.

5

P910-064085

HOSE ASSY-ORFS 0X0

V450,25G #0058

4шт.

5

P910-064086

HOSE ASSY-ORFS 0X0

V450,25G #0059

4шт.

5

P910-064085

HOSE ASSY-ORFS 0X0

V450,30G #0009

4шт.

5

P910-064086

HOSE ASSY-ORFS 0X0

V450,30G #0010

4шт.

5

P910-064090

HOSE ASSY-ORFS 0X0

V470,20G

4шт.

5

P910-064089

HOSE ASSY-ORFS 0X0

V470,25G #0058

4шт.

5

P910-064090

HOSE ASSY-ORFS 0X0

V470,25G #0059

4шт.

5

P910-064089

HOSE ASSY-ORFS 0X0

V470,30G #0009

4шт.

5

P910-064090

HOSE ASSY-ORFS 0X0

V470,30G #0010

4шт.

5

P910-064096

HOSE ASSY-ORFS 0X0

V500,20G

4шт.

5

P910-064095

HOSE ASSY-ORFS 0X0

V500,25G #0058

4шт.

5

P910-064096

HOSE ASSY-ORFS 0X0

V500,25G #0059

4шт.

5

P910-064095

HOSE ASSY-ORFS 0X0

V500,30G #0009

4шт.

5

P910-064096

HOSE ASSY-ORFS 0X0

V500,30G #0010

4шт.

6

34FG-90201

PULLEY-HOSE

2шт.

7

31FV-90130

PIN-HOSE PULLEY

20G

2шт.

7

31FV-90140

PIN-HOSE PULLEY

25G #0058

2шт.

7

31FV-90130

PIN-HOSE PULLEY

25G #0059

2шт.

7

31FV-90140

PIN-HOSE PULLEY

30G #0009

2шт.

7

31FV-90130

PIN-HOSE PULLEY

30G #0010

2шт.

8

S017-120606

BOLT-HEX

2шт.

9

S411-120006

WASHER-SPRING

2шт.

10

S441-120006

WASHER-HARDENED

2шт.

11

31FG-80210

CONNECTOR

20G

4шт.

11

31FG-80200

CONNECTOR-LONG

25G #0058

4шт.

11

31FG-80210

CONNECTOR

25G #0059

4шт.

11

31FG-80200

CONNECTOR-LONG

30G #0009

4шт.

11

31FG-80210

CONNECTOR

30G #0010

4шт.

12

31FQ-10070

CONNECTOR

2шт.

13

31N5-30050

CONNECTOR

2шт.

14

31FS-90500

ELBOW WA

4шт.

15

X710-100103

CAP

4шт.

16

S552-050203

CLAMP-BAND

4шт.

17

31FG-80430

NUT-HEX

12шт.

101

P913-064009

HOSE ASSY-ORFS 0X0

SIDE SHIFT

1шт.

102

P933-064007

HOSE ASSY-ORFS 0X90

SIDE SHIFT

1шт.

103

31FG-80400

ELBOW-90

2.0/2.5TON,S/S

2шт.

103

31FG-80400

ELBOW-90

3.0,S/SHIFT #0002

2шт.

103

31FG-80700

ELBOW-90

3.0,S/SHIFT #0003

2шт.
