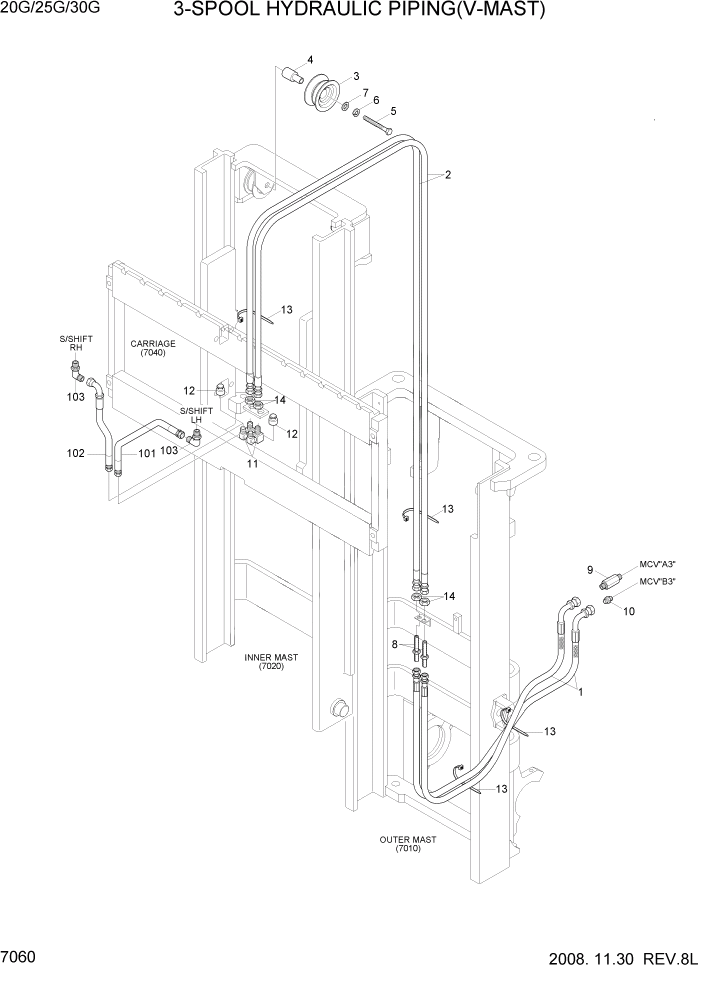

Запчасти Hyundai 20/25/30G-7 PAGE 7060 3-SPOOL HYDRAULIC PIPING(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P933-064027

HOSE ASSY-ORFS 0X90

2шт.

1

P933-064032

HOSE ASSY-ORFS 0X90

20G #0001

2шт.

1

P933-064027

HOSE ASSY-ORFS 0X90

25G #0063

2шт.

1

P933-064032

HOSE ASSY-ORFS 0X90

25G #0064

2шт.

1

P933-064027

HOSE ASSY-ORFS 0X90

30G #0009

2шт.

1

P933-064032

HOSE ASSY-ORFS 0X90

30G #0010

2шт.

2

P910-064073

HOSE ASSY-ORFS 0X0

V400

2шт.

2

P910-064079

HOSE ASSY-ORFS 0X0

V430

2шт.

2

P910-064085

HOSE ASSY-ORFS 0X0

V450

2шт.

2

P910-064089

HOSE ASSY-ORFS 0X0

V470

2шт.

2

P910-064095

HOSE ASSY-ORFS 0X0

V500

2шт.

3

34FG-90201

PULLEY-HOSE

1шт.

4

31FV-90140

PIN-H/PULLER

1шт.

5

S017-120606

BOLT-HEX

1шт.

6

S411-120006

WASHER-SPRING

1шт.

7

S441-120006

WASHER-HARDENED

1шт.

8

31FG-80200

CONNECTOR-LONG

2шт.

9

31FQ-10070

CONNECTOR

1шт.

10

31N5-30050

CONNECTOR

1шт.

11

31FS-90500

ELBOW WA

2шт.

12

X710-100103

CAP-HYD,ORFS

2шт.

13

S552-050203

CLAMP-BAND

2шт.

14

31FG-80430

NUT-HEX

6шт.

101

P913-064009

HOSE ASSY-ORFS 0X0

SIDE SHIFT

1шт.

102

P933-064007

HOSE ASSY-ORFS 0X90

SIDE SHIFT

1шт.

103

31FG-80400

ELBOW-90

2.0/2.5TON,S/S

2шт.

103

31FG-80400

ELBOW-90

3.0TON,S/SHIFT #0002

2шт.

103

31FG-80700

ELBOW-90

3.0TON,S/SHIFT #0003

2шт.

1

P933-064027

HOSE ASSY-ORFS 0X90

2шт.

2

P910-064052

HOSE ASSY-ORFS 0X0

V300,20G

2шт.

2

P910-064051

HOSE ASSY-ORFS 0X0

V300,25G #0058

2шт.

2

P910-064052

HOSE ASSY-ORFS 0X0

V300,25G #0059

2шт.

2

P910-064051

HOSE ASSY-ORFS 0X0

V300,30G #0009

2шт.

2

P910-064052

HOSE ASSY-ORFS 0X0

V300,30G #0010

2шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

V330,20G

2шт.

2

P910-064057

HOSE ASSY-ORFS 0X0

V330,25G #0058

2шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

V330,25G #0059

2шт.

2

P910-064057

HOSE ASSY-ORFS 0X0

V330,30G #0009

2шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

V330,30G #0010

2шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

V350,20G

2шт.

2

P910-064061

HOSE ASSY-ORFS 0X0

V350,25G #0058

2шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

V350,25G #0059

2шт.

2

P910-064061

HOSE ASSY-ORFS 0X0

V350,30G #0009

2шт.

2

P910-064062

HOSE ASSY-ORFS 0X0

V350,30G #0010

2шт.

2

P910-064068

HOSE ASSY-ORFS 0X0

V370,20G

2шт.

2

P910-064067

HOSE ASSY-ORFS 0X0

V370,25G #0058

2шт.

2

P910-064068

HOSE ASSY-ORFS 0X0

V370,25G #0059

2шт.

2

P910-064067

HOSE ASSY-ORFS 0X0

V370,30G #0009

2шт.

2

P910-064068

HOSE ASSY-ORFS 0X0

V370,30G #0010

2шт.

2

P910-064074

HOSE ASSY-ORFS 0X0

V400,20G

2шт.

2

P910-064073

HOSE ASSY-ORFS 0X0

V400,25G #0058

2шт.

2

P910-064074

HOSE ASSY-ORFS 0X0

V400,25G #0059

2шт.

2

P910-064073

HOSE ASSY-ORFS 0X0

V400,30G #0009

2шт.

2

P910-064074

HOSE ASSY-ORFS 0X0

V400,30G #0010

2шт.

2

P910-064080

HOSE ASSY-ORFS 0X0

V430,20G

2шт.

2

P910-064079

HOSE ASSY-ORFS 0X0

V430,25G #0058

2шт.

2

P910-064080

HOSE ASSY-ORFS 0X0

V430,25G #0059

2шт.

2

P910-064079

HOSE ASSY-ORFS 0X0

V430,30G #0009

2шт.

2

P910-064080

HOSE ASSY-ORFS 0X0

V430,30G #0010

2шт.

2

P910-064086

HOSE ASSY-ORFS 0X0

V450,20G

2шт.

2

P910-064085

HOSE ASSY-ORFS 0X0

V450,25G #0058

2шт.

2

P910-064086

HOSE ASSY-ORFS 0X0

V450,25G #0059

2шт.

2

P910-064085

HOSE ASSY-ORFS 0X0

V450,30G #0009

2шт.

2

P910-064086

HOSE ASSY-ORFS 0X0

V450,30G #0010

2шт.

2

P910-064090

HOSE ASSY-ORFS 0X0

V470,20G

2шт.

2

P910-064089

HOSE ASSY-ORFS 0X0

V470,25G #0058

2шт.

2

P910-064090

HOSE ASSY-ORFS 0X0

V470,25G #0059

2шт.

2

P910-064089

HOSE ASSY-ORFS 0X0

V470,30G #0009

2шт.

2

P910-064090

HOSE ASSY-ORFS 0X0

V470,30G #0010

2шт.

2

P910-064096

HOSE ASSY-ORFS 0X0

V500,20G

2шт.

2

P910-064095

HOSE ASSY-ORFS 0X0

V500,25G #0058

2шт.

2

P910-064096

HOSE ASSY-ORFS 0X0

V500,25G #0059

2шт.

2

P910-064095

HOSE ASSY-ORFS 0X0

V500,30G #0009

2шт.

2

P910-064096

HOSE ASSY-ORFS 0X0

V500,30G #0010

2шт.

3

34FG-90201

PULLEY-HOSE

1шт.

4

31FV-90130

PIN-HOSE PULLEY

20G

1шт.

4

31FV-90140

PIN-HOSE PULLEY

25G #0058

1шт.

4

31FV-90130

PIN-HOSE PULLEY

25G #0059

1шт.

4

31FV-90140

PIN-HOSE PULLEY

30G #0009

1шт.

4

31FV-90130

PIN-HOSE PULLEY

30G #0010

1шт.

5

S017-120606

BOLT-HEX

1шт.

6

S411-120006

WASHER-SPRING

1шт.

7

S441-120006

WASHER-HARDENED

1шт.

8

31FG-80210

CONNECTOR

20G

2шт.

8

31FG-80200

CONNECTOR-LONG

25G #0058

2шт.

8

31FG-80210

CONNECTOR

25G #0059

2шт.

8

31FG-80200

CONNECTOR-LONG

30G #0009

2шт.

8

31FG-80210

CONNECTOR

30G #0010

2шт.

9

31FQ-10070

CONNECTOR

1шт.

10

31N5-30050

CONNECTOR

1шт.

11

31FS-90500

ELBOW WA

2шт.

12

X710-100103

CAP

2шт.

13

S552-050203

CLAMP-BAND

2шт.

14

31FG-80430

NUT-HEX

6шт.

101

P913-064009

HOSE ASSY-ORFS 0X0

SIDE SHIFT

1шт.

102

P933-064007

HOSE ASSY-ORFS 0X90

SIDE SHIFT

1шт.

103

31FG-80400

ELBOW-90

2.0/2.5TON,S/S

2шт.

103

31FG-80400

ELBOW-90

3.0TON,S/SHIFT #0002

2шт.

103

31FG-80700

ELBOW-90

3.0TON,S/SHIFT #0003

2шт.
