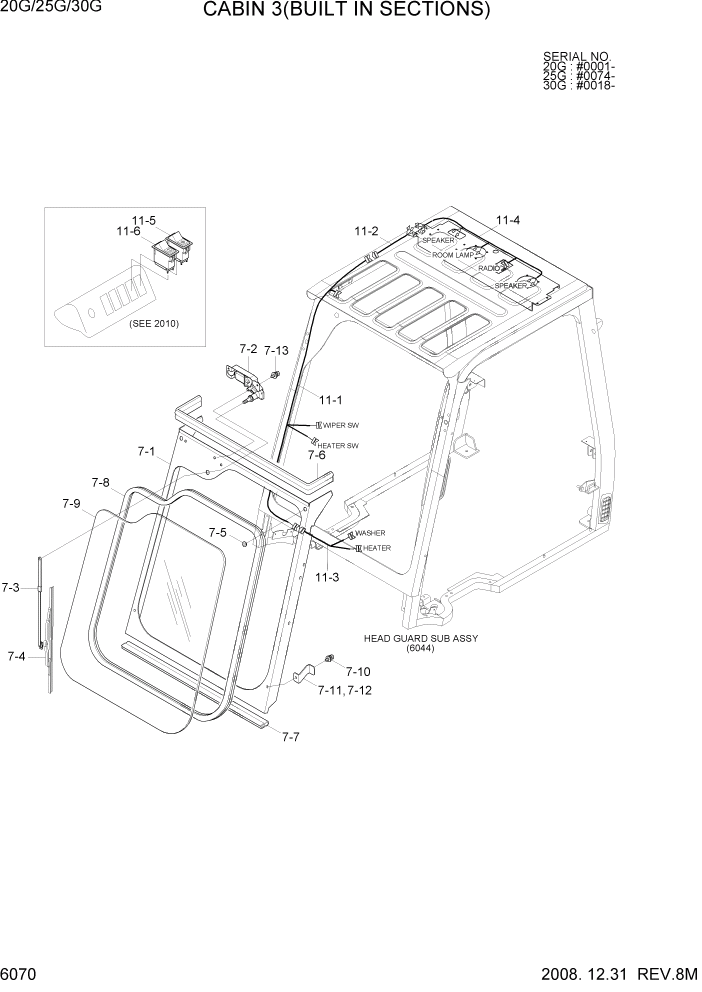

Запчасти Hyundai 20/25/30G-7 PAGE 6070 CABIN 3(BUILT IN SECTION) СТРУКТУРА

*

@

CABIN ASSY

NOT

1шт.

7

79HA-55001

FRONT PLATE ASSY

2шт.

7-1

79HA-55101

FRONT PLATE WA

1шт.

7-2

21M7-30310

MOTOR-WIPER

1шт.

7-3

79HA-55210

ARM-WIPER

1шт.

7-4

79HA-55220

BLADE-WIPER

1шт.

7-5

S681-200400

GROMMET

1шт.

7-6

S772-014000

WEATHER STRIP

1шт.

7-7

S772-010500

WEATHER STRIP

1шт.

7-8

S781-239001

SEAL-GLASS

1шт.

7-9

79HA-55231

GLASS-FR

1шт.

7-1

S035-082036

BOLT-W/WASHER

6шт.

7-11

79HA-55310

PLATE-LH

6шт.

7-12

79HA-55320

PLATE-RH

6шт.

7-13

S035-082026

BOLT-W/WASHER

6шт.

11

21HA-31000

ELEC CABIN ASSY

2шт.

11-1

21HA-31100

HARNESS-CABIN 1

1шт.

11-2

21HA-31110

HARNESS-CABIN 2

1шт.

11-3

21HA-31120

HARNESS-HEATER

1шт.

11-4

21HA-31130

HARNESS-RADIO

1шт.

11-5

21S4-09040

SWITCH-HEATER

1шт.

11-6

21M6-53300

SWITCH-WIPER/WASHER

1шт.
