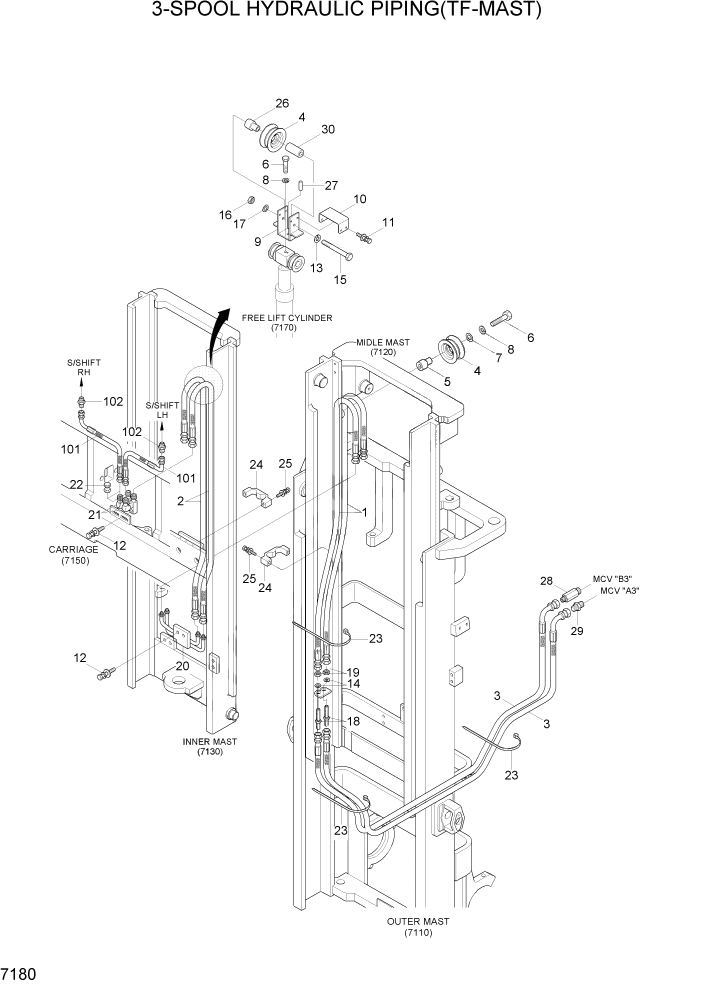

Запчасти Hyundai 15LC/18LC/20LCA-7 PAGE 7180 3-SPOOL HYDRAULIC PIPING(TF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P910-044040

HOSE ASSY-ORFS 0X0

TF370, 15LC #0066

2шт.

1

P910-043040

HOSE ASSY-ORFS 0X0

TF370,15LC #0067

2шт.

1

P910-044040

HOSE ASSY-ORFS 0X0

TF370,18LC #0024

2шт.

1

P910-043040

HOSE ASSY-ORFS 0X0

TF370,18LC #0025

2шт.

1

P910-044040

HOSE ASSY-ORFS 0X0

TF370,20LCA #0010

2шт.

1

P910-043040

HOSE ASSY-ORFS 0X0

TF370,20LCA #0011

2шт.

1

P910-044044

HOSE ASSY-ORFS 0X0

TF400,15LC #0066

2шт.

1

P910-043044

HOSE ASSY-ORFS 0X0

TF400,15LC #0067

2шт.

1

P910-044044

HOSE ASSY-ORFS 0X0

TF400,18LC #0024

2шт.

1

P910-043044

HOSE ASSY-ORFS 0X0

TF400,18LC #0025

2шт.

1

P910-044044

HOSE ASSY-ORFS 0X0

TF400,20LCA #0010

2шт.

1

P910-043044

HOSE ASSY-ORFS 0X0

TF400,20LCA #0011

2шт.

1

P910-044048

HOSE ASSY-ORFS 0X0

TF430,15LC #0066

2шт.

1

P910-043048

HOSE ASSY-ORFS 0X0

TF430,15LC #0067

2шт.

1

P910-044048

HOSE ASSY-ORFS 0X0

TF430,18LC #0024

2шт.

1

P910-043048

HOSE ASSY-ORFS 0X0

TF430,18LC #0025

2шт.

1

P910-044048

HOSE ASSY-ORFS 0X0

TF430,20LCA #0010

2шт.

1

P910-043048

HOSE ASSY-ORFS 0X0

TF430,20LCA #0011

2шт.

1

P910-044052

HOSE ASSY-ORFS 0X0

TF450,15LC #0066

2шт.

1

P910-043052

HOSE ASSY-ORFS 0X0

TF450,15LC #0067

2шт.

1

P910-044052

HOSE ASSY-ORFS 0X0

TF450,18LC #0024

2шт.

1

P910-043052

HOSE ASSY-ORFS 0X0

TF450,18LC #0025

2шт.

1

P910-044052

HOSE ASSY-ORFS 0X0

TF450,20LCA #0010

2шт.

1

P910-043052

HOSE ASSY-ORFS 0X0

TF450,20LCA #0011

2шт.

1

P910-044054

HOSE ASSY-ORFS 0X0

TF470,15LC #0066

2шт.

1

P910-043054

HOSE ASSY-ORFS 0X0

TF470,15LC #0067

2шт.

1

P910-044054

HOSE ASSY-ORFS 0X0

TF470,18LC #0024

2шт.

1

P910-043054

HOSE ASSY-ORFS 0X0

TF470,18LC #0025

2шт.

1

P910-044054

HOSE ASSY-ORFS 0X0

TF470,20LCA #0010

2шт.

1

P910-043054

HOSE ASSY-ORFS 0X0

TF470,20LCA #0011

2шт.

1

P910-044058

HOSE ASSY-ORFS 0X0

TF500,15LC #0066

2шт.

1

P910-043058

HOSE ASSY-ORFS 0X0

TF500,15LC #0067

2шт.

1

P910-044058

HOSE ASSY-ORFS 0X0

TF500,18LC #0024

2шт.

1

P910-043058

HOSE ASSY-ORFS 0X0

TF500,18LC #0025

2шт.

1

P910-044058

HOSE ASSY-ORFS 0X0

TF500,20LCA #0010

2шт.

1

P910-043058

HOSE ASSY-ORFS 0X0

TF500,20LCA #0011

2шт.

1

P910-044066

HOSE ASSY-ORFS 0X0

TF550,15LC #0066

2шт.

1

P910-043066

HOSE ASSY-ORFS 0X0

TF550,15LC #0067

2шт.

1

P910-044066

HOSE ASSY-ORFS 0X0

TF550,18LC #0024

2шт.

1

P910-043066

HOSE ASSY-ORFS 0X0

TF550,18LC #0025

2шт.

1

P910-044066

HOSE ASSY-ORFS 0X0

TF550,20LCA #0010

2шт.

1

P910-043066

HOSE ASSY-ORFS 0X0

TF550,20LCA #0011

2шт.

1

P910-044074

HOSE ASSY-ORFS 0X0

TF600,15LC #0066

2шт.

1

P910-043074

HOSE ASSY-ORFS 0X0

TF600,15LC #0067

2шт.

1

P910-044074

HOSE ASSY-ORFS 0X0

TF600,18LC #0024

2шт.

1

P910-043074

HOSE ASSY-ORFS 0X0

TF600,18LC #0025

2шт.

1

P910-044074

HOSE ASSY-ORFS 0X0

TF600,20LCA #0010

2шт.

1

P910-043074

HOSE ASSY-ORFS 0X0

TF600,20LCA #0011

2шт.

1

P910-044082

HOSE ASSY-ORFS 0X0

TF650,15LC #0066

2шт.

1

P910-043082

HOSE ASSY-ORFS 0X0

TF650,15LC #0067

2шт.

1

P910-044082

HOSE ASSY-ORFS 0X0

TF650,18LC #0024

2шт.

1

P910-043082

HOSE ASSY-ORFS 0X0

TF650,18LC #0025

2шт.

1

P910-044082

HOSE ASSY-ORFS 0X0

TF650,20LCA #0010

2шт.

1

P910-043082

HOSE ASSY-ORFS 0X0

TF650,20LCA #0011

2шт.

1

P910-044090

HOSE ASSY-ORFS 0X0

TF700,15LC #0066

2шт.

1

P910-043090

HOSE ASSY-ORFS 0X0

TF700,15LC #0067

2шт.

1

P910-044090

HOSE ASSY-ORFS 0X0

TF700,18LC #0024

2шт.

1

P910-043090

HOSE ASSY-ORFS 0X0

TF700,18LC #0025

2шт.

1

P910-044090

HOSE ASSY-ORFS 0X0

TF700,20LCA #0010

2шт.

1

P910-043090

HOSE ASSY-ORFS 0X0

TF700,20LCA #0011

2шт.

2

P910-044036

HOSE ASSY-ORFS 0X0

TF370, 15LC #0001 - #0066

2шт.

2

P910-043036

HOSE ASSY-ORFS 0X0

TF370, 15LC #0067

2шт.

2

P910-044036

HOSE ASSY-ORFS 0X0

TF370, 18LC #0001 - #0024

2шт.

2

P910-043036

HOSE ASSY-ORFS 0X0

TF370, 18LC #0025

2шт.

2

P910-044036

HOSE ASSY-ORFS 0X0

TF370, 20LCA #0001 - #0010

2шт.

2

P910-043036

HOSE ASSY-ORFS 0X0

TF370, 20LCA #0011

2шт.

2

P910-044038

HOSE ASSY-ORFS 0X0

TF400, 15LC #0001 - #0066

2шт.

2

P910-043038

HOSE ASSY-ORFS 0X0

TF400, 15LC #0067

2шт.

2

P910-044038

HOSE ASSY-ORFS 0X0

TF400, 18LC #0001 - #0024

2шт.

2

P910-043038

HOSE ASSY-ORFS 0X0

TF400, 18LC #0025

2шт.

2

P910-044038

HOSE ASSY-ORFS 0X0

TF400, 20LCA #0001 - #0010

2шт.

2

P910-043038

HOSE ASSY-ORFS 0X0

TF400, 20LCA #0011

2шт.

2

P910-044040

HOSE ASSY-ORFS 0X0

TF430, 15LC #0001 - #0066

2шт.

2

P910-043040

HOSE ASSY-ORFS 0X0

TF430, 15LC #0067

2шт.

2

P910-044040

HOSE ASSY-ORFS 0X0

TF430, 18LC #0001 - #0024

2шт.

2

P910-043040

HOSE ASSY-ORFS 0X0

TF430, 18LC #0025

2шт.

2

P910-044040

HOSE ASSY-ORFS 0X0

TF430, 20LCA #0001 - #0010

2шт.

2

P910-043040

HOSE ASSY-ORFS 0X0

TF430, 20LCA #0011

2шт.

2

P910-044041

HOSE ASSY-ORFS 0X0

TF450, 15LC #0001 - #0066

2шт.

2

P910-043041

HOSE ASSY-ORFS 0X0

TF450, 15LC #0067

2шт.

2

P910-044041

HOSE ASSY-ORFS 0X0

TF450, 18LC #0001 - #0024

2шт.

2

P910-043041

HOSE ASSY-ORFS 0X0

TF450, 18LC #0025

2шт.

2

P910-044041

HOSE ASSY-ORFS 0X0

TF450, 20LCA #0001 - #0010

2шт.

2

P910-043041

HOSE ASSY-ORFS 0X0

TF450, 20LCA #0011

2шт.

2

P910-044043

HOSE ASSY-ORFS 0X0

TF470, 15LC #0001 - #0066

2шт.

2

P910-043043

HOSE ASSY-ORFS 0X0

TF470, 15LC #0067

2шт.

2

P910-044043

HOSE ASSY-ORFS 0X0

TF470, 18LC #0001 - #0024

2шт.

2

P910-043043

HOSE ASSY-ORFS 0X0

TF470, 18LC #0025

2шт.

2

P910-044043

HOSE ASSY-ORFS 0X0

TF470, 20LCA #0001 - #0010

2шт.

2

P910-043043

HOSE ASSY-ORFS 0X0

TF470, 20LCA #0011

2шт.

2

P910-044045

HOSE ASSY-ORFS 0X0

TF500, 15LC #0001 - #0066

2шт.

2

P910-043045

HOSE ASSY-ORFS 0X0

TF500, 15LC #0067

2шт.

2

P910-044045

HOSE ASSY-ORFS 0X0

TF500, 18LC #0001 - #0024

2шт.

2

P910-043045

HOSE ASSY-ORFS 0X0

TF500, 18LC #0025

2шт.

2

P910-044045

HOSE ASSY-ORFS 0X0

TF500, 20LCA #0001 - #0010

2шт.

2

P910-043045

HOSE ASSY-ORFS 0X0

TF500, 20LCA #0011

2шт.

2

P910-044048

HOSE ASSY-ORFS 0X0

TF550, 15LC #0001 - #0066

2шт.

2

P910-043048

HOSE ASSY-ORFS 0X0

TF550, 15LC #0067

2шт.

2

P910-044048

HOSE ASSY-ORFS 0X0

TF550, 18LC #0001 - #0024

2шт.

2

P910-043048

HOSE ASSY-ORFS 0X0

TF550, 18LC #0025

2шт.

2

P910-044048

HOSE ASSY-ORFS 0X0

TF550, 20LCA #0001 - #0010

2шт.

2

P910-043048

HOSE ASSY-ORFS 0X0

TF550, 20LCA #0011

2шт.

2

P910-044052

HOSE ASSY-ORFS 0X0

TF600, 15LC #0001 - #0066

2шт.

2

P910-043052

HOSE ASSY-ORFS 0X0

TF600, 15LC #0067

2шт.

2

P910-044052

HOSE ASSY-ORFS 0X0

TF600, 18LC #0001 - #0024

2шт.

2

P910-043052

HOSE ASSY-ORFS 0X0

TF600, 18LC #0025

2шт.

2

P910-044052

HOSE ASSY-ORFS 0X0

TF600, 20LCA #0001 - #0010

2шт.

2

P910-043052

HOSE ASSY-ORFS 0X0

TF600, 20LCA #0011

2шт.

2

P910-044056

HOSE ASSY-ORFS 0X0

TF650, 15LC #0001 - #0066

2шт.

2

P910-043056

HOSE ASSY-ORFS 0X0

TF650, 15LC #0067

2шт.

2

P910-044056

HOSE ASSY-ORFS 0X0

TF650, 18LC #0001 - #0024

2шт.

2

P910-043056

HOSE ASSY-ORFS 0X0

TF650, 18LC #0025

2шт.

2

P910-044056

HOSE ASSY-ORFS 0X0

TF650, 20LCA #0001 - #0010

2шт.

2

P910-043056

HOSE ASSY-ORFS 0X0

TF650, 20LCA #0011

2шт.

2

P910-044060

HOSE ASSY-ORFS 0X0

TF700, 15LC #0001 - #0066

2шт.

2

P910-043060

HOSE ASSY-ORFS 0X0

TF700, 15LC #0067

2шт.

2

P910-044060

HOSE ASSY-ORFS 0X0

TF700, 18LC #0001 - #0024

2шт.

2

P910-043060

HOSE ASSY-ORFS 0X0

TF700, 18LC #0025

2шт.

2

P910-044060

HOSE ASSY-ORFS 0X0

TF700, 20LCA #0001 - #0010

2шт.

2

P910-043060

HOSE ASSY-ORFS 0X0

TF700, 20LCA #0011

2шт.

3

P933-044030

HOSE ASSY-ORFS 0X90

15LC #0048

2шт.

3

P933-043027

HOSE ASSY-ORFS 0X90

15LC #0049

2шт.

3

P933-044030

HOSE ASSY-ORFS 0X90

18LC #0020

2шт.

3

P933-043027

HOSE ASSY-ORFS 0X90

18LC #0021

2шт.

3

P933-044030

HOSE ASSY-ORFS 0X90

20LCA #0010

2шт.

3

P933-043027

HOSE ASSY-ORFS 0X90

20LCA #0011

2шт.

4

31HH-80300

PULLEY-HOSE

2шт.

5

31FV-90150

PIN-HOSE PULLEY

1шт.

6

S017-120456

BOLT-HEX

2шт.

7

S441-120006

WASHER-HARDENED

1шт.

8

S411-120006

WASHER-SPRING

2шт.

9

33HH-90500

BRACKET WA

#0001

1шт.

10

33HA-90751

COVER

#0001

1шт.

11

S035-081526

BOLT-W/WASHER

4шт.

12

S037-103026

BOLT-W/WASHER

4шт.

13

S411-100006

WASHER-SPRING

1шт.

14

S403-142006

WASHER-PLAIN

2шт.

15

S017-100956

BOLT-HEX

1шт.

16

S275-100006

NUT-SELF LOCKING

1шт.

17

S403-102006

WASHER-PLAIN

1шт.

18

X540-120001

CONNECTOR-ORFS

2шт.

19

33FP-90380-DA

NUT

2шт.

20

33HH-90201

PIPE WA

1шт.

21

31HG-90130

ELBOW-90

2шт.

22

X710-100102

CAP-HYD,ORFS

2шт.

23

S552-102370

CLAMP-BAND

4шт.

24

33FP-90200

CLAMP

2шт.

25

S035-063526

BOLT-W/WASHER

4шт.

26

34FG-90370

PIN-HOSE PULLEY

#0001

1шт.

27

S471-800162

PIN-SPRING

1шт.

28

31HG-90110

CONNECTOR

1шт.

29

31HG-90120

CONNECTOR

1шт.

30

34FG-90330

SPACER

#0001

2шт.

101

P933-044004

HOSE ASSY-ORFS 0X90

SIDE SHIFT

2шт.

102

33FY-90600

CONNECTOR

SIDE SHIFT

2шт.
