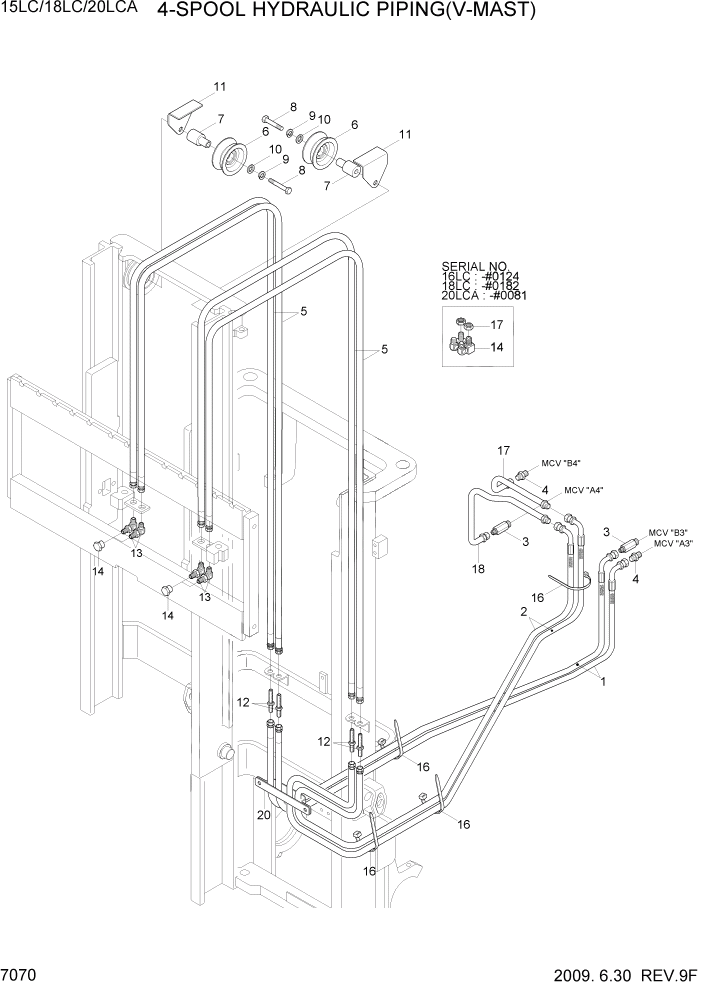

Запчасти Hyundai 15LC/18LC/20LCA-7 PAGE 7070 4-SPOOL HYDRAULIC PIPING(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P933-044030

HOSE ASSY-ORFS 0X90

15LC #0066

2шт.

1

P933-043027

HOSE ASSY-ORFS 0X90

15LC #0067

2шт.

1

P933-044030

HOSE ASSY-ORFS 0X90

18LC #0024

2шт.

1

P933-043027

HOSE ASSY-ORFS 0X90

18LC #0025

2шт.

1

P933-044030

HOSE ASSY-ORFS 0X90

20LCA #0010

2шт.

1

P933-043027

HOSE ASSY-ORFS 0X90

20LCA #0011

2шт.

2

P933-044036

HOSE ASSY-ORFS 0X90

15LC #0066

2шт.

2

P933-043031

HOSE ASSY-ORFS 0X90

15LC #0067

2шт.

2

P933-044036

HOSE ASSY-ORFS 0X90

18LC #0024

2шт.

2

P933-043031

HOSE ASSY-ORFS 0X90

18LC #0025

2шт.

2

P933-044036

HOSE ASSY-ORFS 0X90

20LCA #0010

2шт.

2

P933-043031

HOSE ASSY-ORFS 0X90

20LCA #0011

2шт.

3

31HG-90110

CONNECTOR

2шт.

4

31HG-90120

CONNECTOR

2шт.

5

P910-044041

HOSE ASSY-ORFS 0X0

V250, 15LC #0066

4шт.

5

P910-043041

HOSE ASSY-ORFS 0X0

V250, 15LC #0067

4шт.

5

P910-044041

HOSE ASSY-ORFS 0X0

V250, 18LC #0024

4шт.

5

P910-043041

HOSE ASSY-ORFS 0X0

V250, 18LC #0025

4шт.

5

P910-044041

HOSE ASSY-ORFS 0X0

V250, 20LCA #0010

4шт.

5

P910-043041

HOSE ASSY-ORFS 0X0

V250, 20LCA #0011

4шт.

5

P910-044045

HOSE ASSY-ORFS 0X0

V270, 15LC #0066

4шт.

5

P910-043045

HOSE ASSY-ORFS 0X0

V270, 15LC #0067

4шт.

5

P910-044045

HOSE ASSY-ORFS 0X0

V270

4шт.

5

P910-044045

HOSE ASSY-ORFS 0X0

V270, 18LC #0024

4шт.

5

P910-043045

HOSE ASSY-ORFS 0X0

V270, 18LC #0025

4шт.

5

P910-044045

HOSE ASSY-ORFS 0X0

V270, 20LCA #0010

4шт.

5

P910-043045

HOSE ASSY-ORFS 0X0

V270, 20LCA #0011

4шт.

5

P910-044051

HOSE ASSY-ORFS 0X0

V300, 15LC #0066

4шт.

5

P910-043051

HOSE ASSY-ORFS 0X0

V300, 15LC #0067

4шт.

5

P910-044051

HOSE ASSY-ORFS 0X0

V300, 18LC #0024

4шт.

5

P910-043051

HOSE ASSY-ORFS 0X0

V300, 18LC #0025

4шт.

5

P910-044051

HOSE ASSY-ORFS 0X0

V300, 20LCA #0010

4шт.

5

P910-043051

HOSE ASSY-ORFS 0X0

V300, 20LCA #0011

4шт.

5

P910-044057

HOSE ASSY-ORFS 0X0

V330, 15LC #0066

4шт.

5

P910-043057

HOSE ASSY-ORFS 0X0

V330, 15LC #0067

4шт.

5

P910-044057

HOSE ASSY-ORFS 0X0

V330, 18LC #0024

4шт.

5

P910-043057

HOSE ASSY-ORFS 0X0

V330, 18LC #0025

4шт.

5

P910-044057

HOSE ASSY-ORFS 0X0

V330, 20LCA #0010

4шт.

5

P910-043057

HOSE ASSY-ORFS 0X0

V330, 20LCA #0011

4шт.

5

P910-044061

HOSE ASSY-ORFS 0X0

V350, 15LC #0066

4шт.

5

P910-043061

HOSE ASSY-ORFS 0X0

V350, 15LC #0067

4шт.

5

P910-044061

HOSE ASSY-ORFS 0X0

V350, 18LC #0024

4шт.

5

P910-043061

HOSE ASSY-ORFS 0X0

V350, 18LC #0025

4шт.

5

P910-044061

HOSE ASSY-ORFS 0X0

V350, 20LCA #0010

4шт.

5

P910-043061

HOSE ASSY-ORFS 0X0

V350, 20LCA #0011

4шт.

5

P910-044065

HOSE ASSY-ORFS 0X0

V370, 15LC #0066

4шт.

5

P910-043065

HOSE ASSY-ORFS 0X0

V370, 15LC #0067

4шт.

5

P910-044065

HOSE ASSY-ORFS 0X0

V370, 18LC #0024

4шт.

5

P910-043065

HOSE ASSY-ORFS 0X0

V370, 18LC #0025

4шт.

5

P910-044065

HOSE ASSY-ORFS 0X0

V370, 20LCA #0010

4шт.

5

P910-043065

HOSE ASSY-ORFS 0X0

V370, 20LCA #0011

4шт.

5

P910-044071

HOSE ASSY-ORFS 0X0

V400, 15LC #0066

4шт.

5

P910-043071

HOSE ASSY-ORFS 0X0

V400, 15LC #0067

4шт.

5

P910-044071

HOSE ASSY-ORFS 0X0

V400, 18LC #0024

4шт.

5

P910-043071

HOSE ASSY-ORFS 0X0

V400, 18LC #0025

4шт.

5

P910-044071

HOSE ASSY-ORFS 0X0

V400, 20LCA #0010

4шт.

5

P910-043071

HOSE ASSY-ORFS 0X0

V400, 20LCA #0011

4шт.

5

P910-044085

HOSE ASSY-ORFS 0X0

V450, 15LC #0066

4шт.

5

P910-043085

HOSE ASSY-ORFS 0X0

V450, 15LC #0067

4шт.

5

P910-044085

HOSE ASSY-ORFS 0X0

V450, 18LC #0024

4шт.

5

P910-043085

HOSE ASSY-ORFS 0X0

V450, 18LC #0025

4шт.

5

P910-044085

HOSE ASSY-ORFS 0X0

V450, 20LCA #0010

4шт.

5

P910-043085

HOSE ASSY-ORFS 0X0

V450, 20LCA #0011

4шт.

5

P910-044095

HOSE ASSY-ORFS 0X0

V500, 15LC #0066

4шт.

5

P910-043095

HOSE ASSY-ORFS 0X0

V500, 15LC #0067

4шт.

5

P910-044095

HOSE ASSY-ORFS 0X0

V500, 18LC #0024

4шт.

5

P910-043095

HOSE ASSY-ORFS 0X0

V500, 18LC #0025

4шт.

5

P910-044095

HOSE ASSY-ORFS 0X0

V500, 20LCA #0010

4шт.

5

P910-043095

HOSE ASSY-ORFS 0X0

V500, 20LCA #0011

4шт.

5

P910-044105

HOSE ASSY-ORFS 0X0

V550, 15LC #0066

4шт.

5

P910-043105

HOSE ASSY-ORFS 0X0

V550, 15LC #0067

4шт.

5

P910-044105

HOSE ASSY-ORFS 0X0

V550, 18LC #0024

4шт.

5

P910-043105

HOSE ASSY-ORFS 0X0

V550, 18LC #0025

4шт.

5

P910-044105

HOSE ASSY-ORFS 0X0

V550, 20LCA #0010

4шт.

5

P910-043105

HOSE ASSY-ORFS 0X0

V550, 20LCA #0011

4шт.

6

34FG-90201

PULLEY-HOSE

2шт.

7

31FV-90130

PIN-HOSE PULLEY

2шт.

8

S017-120606

BOLT-HEX

2шт.

9

S411-120006

WASHER-SPRING

2шт.

10

S441-120006

WASHER-HARDENED

2шт.

11

61HH-18510

GUARD

2шт.

12

X540-120001

CONNECTOR-ORFS

4шт.

13

31FY-90500

ELBOW WA

15LC #0080

4шт.

13

31HN-90700

ELBOW-90,ORFS

15LC #0081

4шт.

13

31FY-90500

ELBOW WA

18LC #0028

4шт.

13

31HN-90700

ELBOW-90,ORFS

18LC #0029

4шт.

13

31FY-90500

ELBOW WA

20LCA #0010

4шт.

13

31HN-90700

ELBOW-90,ORFS

20LCA #0011

4шт.

14

X710-100102

CAP-HYD,ORFS

4шт.

15

33FP-90380-DA

NUT

15LC #0066

8шт.

15

33FP-90380-DA

NUT

15LC #0067 - #0080

4шт.

15

33FP-90380-DA

NUT

18LC #0024

8шт.

15

33FP-90380-DA

NUT

18LC #0025 - #0028

4шт.

15

33FP-90380-DA

NUT

20LCA #0010

8шт.

16

S552-102370

CLAMP-BAND

6шт.

17

31HG-90610

CONNECTOR

1шт.

18

31HG-90600

PIPE WA

1шт.

19

S403-102006

WASHER-PLAIN

15LC #0066

4шт.

19

S403-102006

WASHER-PLAIN

18LC #0024

4шт.

19

S403-102006

WASHER-PLAIN

20LCA #0010

4шт.

20

31HH-90600

CLAMP-HOSE

1шт.
