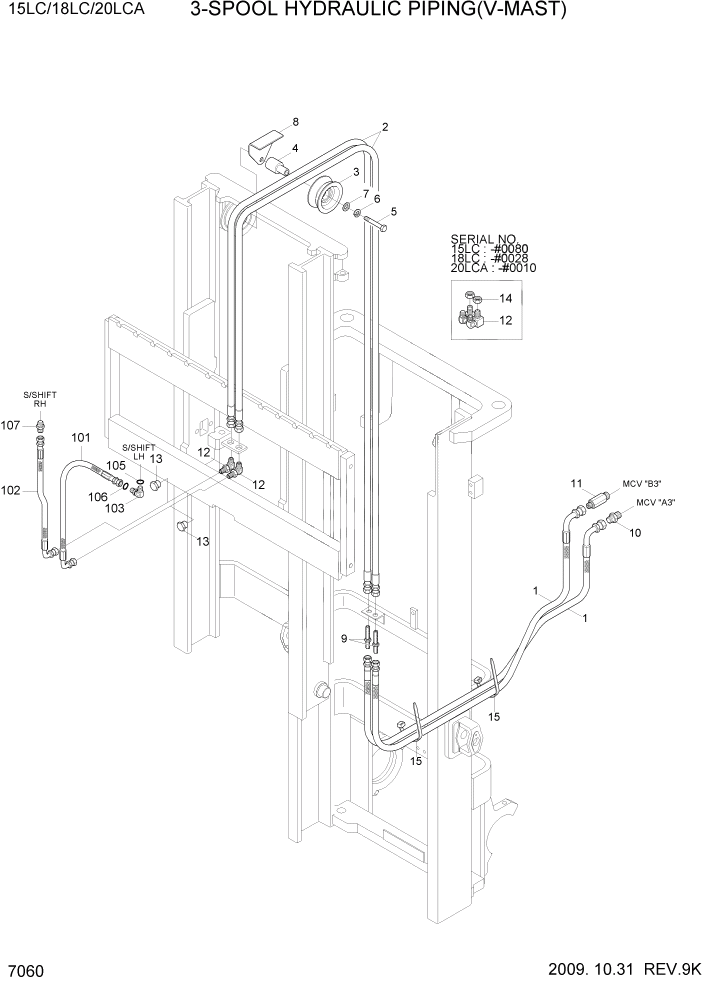

Запчасти Hyundai 15LC/18LC/20LCA-7 PAGE 7060 3-SPOOL HYDRAULIC PIPING(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ
№
Артикул
Название
Примечание
Количество
1
P933-044030
HOSE ASSY-ORFS 0X90
15LC #0048
2шт.
1
P933-044027
HOSE ASSY-ORFS 0X90
15LC #0049 - #0066
2шт.
1
P933-043027
HOSE ASSY-ORFS 0X90
15LC #0067
2шт.
1
P933-044030
HOSE ASSY-ORFS 0X90
18LC #0020
2шт.
1
P933-044027
HOSE ASSY-ORFS 0X90
18LC #0021 - #0024
2шт.
1
P933-043027
HOSE ASSY-ORFS 0X90
18LC #0025
2шт.
1
P933-044030
HOSE ASSY-ORFS 0X90
20LCA #0009
2шт.
1
P933-044027
HOSE ASSY-ORFS 0X90
20LCA #0010 - #0010
2шт.
1
P933-043027
HOSE ASSY-ORFS 0X90
20LCA #0011
2шт.
2
P910-044041
HOSE ASSY-ORFS 0X0
V250, 15LC #0066
2шт.
2
P910-043041
HOSE ASSY-ORFS 0X0
V250, 15LC #0067
2шт.
2
P910-044041
HOSE ASSY-ORFS 0X0
V250, 18LC #0024
2шт.
2
P910-043041
HOSE ASSY-ORFS 0X0
V250, 18LC #0025
2шт.
2
P910-044041
HOSE ASSY-ORFS 0X0
V250, 20LCA #0010
2шт.
2
P910-043041
HOSE ASSY-ORFS 0X0
V250, 20LCA #0011
2шт.
2
P910-044045
HOSE ASSY-ORFS 0X0
V270, 15LC #0066
2шт.
2
P910-043045
HOSE ASSY-ORFS 0X0
V270, 15LC #0067
2шт.
2
P910-044045
HOSE ASSY-ORFS 0X0
V270, 18LC #0024
2шт.
2
P910-043045
HOSE ASSY-ORFS 0X0
V270, 18LC #0025
2шт.
2
P910-044045
HOSE ASSY-ORFS 0X0
V270, 20LCA #0010
2шт.
9
X540-120001
CONNECTOR-B.H TYPE
2шт.
2
P910-043045
HOSE ASSY-ORFS 0X0
V270, 20LCA #0011
2шт.
2
P910-044051
HOSE ASSY-ORFS 0X0
V300, 15LC #0066
2шт.
2
P910-043051
HOSE ASSY-ORFS 0X0
V300, 15LC #0067
2шт.
2
P910-044051
HOSE ASSY-ORFS 0X0
V300, 18LC #0024
2шт.
2
P910-043051
HOSE ASSY-ORFS 0X0
V300, 18LC #0025
2шт.
2
P910-044051
HOSE ASSY-ORFS 0X0
V300, 20LCA #0010
2шт.
2
P910-043051
HOSE ASSY-ORFS 0X0
V300, 20LCA #0011
2шт.
2
P910-044057
HOSE ASSY-ORFS 0X0
V330, 15LC #0066
2шт.
2
P910-044057
HOSE ASSY-ORFS 0X0
V330, 18LC #0024
2шт.
2
P910-044057
HOSE ASSY-ORFS 0X0
V330, 20LCA #0010
2шт.
2
P910-044061
HOSE ASSY-ORFS 0X0
V350, 15LC #0066
2шт.
2
P910-044061
HOSE ASSY-ORFS 0X0
V350, 18LC #0024
2шт.
2
P910-044061
HOSE ASSY-ORFS 0X0
V350, 20LCA #0010
2шт.
2
P910-044065
HOSE ASSY-ORFS 0X0
V370, 15LC #0066
2шт.
2
P910-043065
HOSE ASSY-ORFS 0X0
V370, 15LC #0067
2шт.
2
P910-044065
HOSE ASSY-ORFS 0X0
V370, 18LC #0024
2шт.
2
P910-043065
HOSE ASSY-ORFS 0X0
V370, 18LC #0025
2шт.
2
P910-044065
HOSE ASSY-ORFS 0X0
V370, 20LCA #0010
2шт.
2
P910-043065
HOSE ASSY-ORFS 0X0
V370, 20LCA #0011
2шт.
2
P910-044071
HOSE ASSY-ORFS 0X0
V400, 15LC #0066
2шт.
2
P910-043071
HOSE ASSY-ORFS 0X0
V400, 15LC #0067
2шт.
2
P910-044071
HOSE ASSY-ORFS 0X0
V400, 18LC #0024
2шт.
2
P910-043071
HOSE ASSY-ORFS 0X0
V400, 18LC #0025
2шт.
2
P910-044071
HOSE ASSY-ORFS 0X0
V400, 20LCA #0010
2шт.
2
P910-043071
HOSE ASSY-ORFS 0X0
V400, 20LCA #0011
2шт.
2
P910-044085
HOSE ASSY-ORFS 0X0
V450, 15LC #0066
2шт.
2
P910-043085
HOSE ASSY-ORFS 0X0
V450, 15LC #0067
2шт.
2
P910-044085
HOSE ASSY-ORFS 0X0
V450, 18LC #0024
2шт.
2
P910-043085
HOSE ASSY-ORFS 0X0
V450, 18LC #0025
2шт.
2
P910-044085
HOSE ASSY-ORFS 0X0
V450, 20LCA #0010
2шт.
2
P910-043085
HOSE ASSY-ORFS 0X0
V450, 20LCA #0011
2шт.
2
P910-044095
HOSE ASSY-ORFS 0X0
V500, 15LC #0066
2шт.
2
P910-043095
HOSE ASSY-ORFS 0X0
V500, 15LC #0067
2шт.
2
P910-044095
HOSE ASSY-ORFS 0X0
V500, 18LC #0024
2шт.
2
P910-043095
HOSE ASSY-ORFS 0X0
V500, 18LC #0025
2шт.
2
P910-044095
HOSE ASSY-ORFS 0X0
V500, 20LCA #0010
2шт.
2
P910-043095
HOSE ASSY-ORFS 0X0
V500, 20LCA #0011
2шт.
2
P910-044105
HOSE ASSY-ORFS 0X0
V550, 15LC #0066
2шт.
2
P910-043105
HOSE ASSY-ORFS 0X0
V550, 15LC #0067
2шт.
2
P910-044105
HOSE ASSY-ORFS 0X0
V550, 18LC #0024
2шт.
2
P910-043105
HOSE ASSY-ORFS 0X0
V550, 18LC #0025
2шт.
2
P910-044105
HOSE ASSY-ORFS 0X0
V550, 20LCA #0010
2шт.
2
P910-043105
HOSE ASSY-ORFS 0X0
V550, 20LCA #0011
2шт.
3
31HH-80300
PULLEY-HOSE
1шт.
5
S017-120606
BOLT-HEX
1шт.
8
61HH-18510
GUARD
1шт.
9
X540-120001
CONNECTOR-ORFS
2шт.
10
31HG-90140
CONNECTOR
1шт.
11
31HG-90120
CONNECTOR
1шт.
12
31FY-90500
ELBOW WA
15LC #0080
2шт.
12
31HN-90700
ELBOW-90,ORFS
15LC #0081
2шт.
12
31FY-90500
ELBOW WA
18LC #0028
2шт.
12
31HN-90700
ELBOW-90,ORFS
18LC #0029
2шт.
12
31FY-90500
ELBOW WA
20LCA #0010
2шт.
12
31HN-90700
ELBOW-90,ORFS
20LCA #0011
2шт.
13
X710-100102
CAP-HYD,ORFS
2шт.
14
33FP-90380-DA
NUT
15LC #0066
4шт.
14
33FP-90380-DA
NUT
15LC #0067 - #0080
2шт.
14
33FP-90380-DA
NUT
18LC #0024
4шт.
14
33FP-90380-DA
NUT
18LC #0025 - #0028
2шт.
14
33FP-90380-DA
NUT
20LCA #0010
4шт.
15
S552-102370
CLAMP-BAND
3шт.
16
S403-141006
WASHER-PLAIN
15LC #0066
2шт.
16
S403-141006
WASHER-PLAIN
18LC #0024
2шт.
16
S403-141006
WASHER-PLAIN
20LCA #0010
2шт.
101
P910-044008
HOSE ASSY-ORFS 0X0
S/SHIFT,15LC #0080
1шт.
101
P910-043008
HOSE ASSY-ORFS 0X0
S/SHIFT,15LC #0067 - #0080
1шт.
101
P930-043009
HOSE ASSY-ORFS 0X90
S/SHIFT,15LC #0081
1шт.
101
P913-043008
HOSE ASSY
SIDE SHIFT,15LC #0139
1шт.
101
P910-044008
HOSE ASSY-ORFS 0X0
S/SHIFT,18LC #0028
1шт.
101
P910-043008
HOSE ASSY-ORFS 0X0
S/SHIFT,18LC #0029 - #0034
1шт.
101
P930-043009
HOSE ASSY-ORFS 0X90
S/SHIFT,18LC #0035
1шт.
101
P913-043008
HOSE ASSY
SIDE SHIFT,18LC #0159
1шт.
101
P910-044008
HOSE ASSY-ORFS 0X0
S/SHIFT,20LC #0010
1шт.
101
P910-043008
HOSE ASSY-ORFS 0X0
S/SHIFT,20LC #0011 - #0011
1шт.
101
P930-043009
HOSE ASSY-ORFS 0X90
S/SHIFT,20LC #0012
1шт.
101
P913-043008
HOSE ASSY
SIDE SHIFT,20LC #0047
1шт.
102
P910-044006
HOSE ASSY-ORFS 0X0
S/SHIFT,15LC #0080
1шт.
102
P910-043006
HOSE ASSY-ORFS 0X0
S/SHIFT,15LC #0067 - #0080
1шт.
102
P930-043007
HOSE ASSY-ORFS 0X90
S/SHIFT,15LC #0081
1шт.
102
P913-043006
HOSE ASSY
SIDE SHIFT,15LC #0139
1шт.
102
P910-044006
HOSE ASSY-ORFS 0X0
S/SHIFT,18LC #0028
1шт.
102
P910-043006
HOSE ASSY-ORFS 0X0
S/SHIFT,18LC #0029 - #0034
1шт.
102
P930-043007
HOSE ASSY-ORFS 0X90
S/SHIFT,18LC #0035
1шт.
102
P913-043006
HOSE ASSY
SIDE SHIFT,18LC #0159
1шт.
102
P910-044006
HOSE ASSY-ORFS 0X0
S/SHIFT,20LC #0010
1шт.
102
P910-043006
HOSE ASSY-ORFS 0X0
S/SHIFT,20LC #0011 - #0011
1шт.
102
P913-043006
HOSE ASSY
SIDE SHIFT,20LC #0047
1шт.
102
P930-043007
HOSE ASSY-ORFS 0X90
S/SHIFT,20LC #0012
1шт.
103
X520-310001
ELBOW-90,ORFS
S/SHIFT,15LC #0080
1шт.
103
X520-310001
ELBOW-90,ORFS
S/SHIFT,15LC #0067 - #0080
2шт.
103
X520-310001
ELBOW-90,ORFS
S/SHIFT,15LC #0081
1шт.
103
X520-310001
ELBOW-90,ORFS
S/SHIFT,18LC #0028
1шт.
103
X520-310001
ELBOW-90,ORFS
S/SHIFT,18LC #0029 - #0034
2шт.
103
X520-310001
ELBOW-90,ORFS
S/SHIFT,18LC #0035
1шт.
103
X520-310001
ELBOW-90,ORFS
S/SHIFT,20LCA #0010
1шт.
103
X520-310001
ELBOW-90,ORFS
S/SHIFT,20LCA #0011 - #0011
2шт.
104
33FY-90600
CONNECTOR
SIDE SHIFT #0080
1шт.
104
33FY-90600
CONNECTOR
SIDE SHIFT #0028
1шт.
103
X520-310001
ELBOW-90,ORFS
S/SHIFT,20LCA #0012
1шт.
104
33FY-90600
CONNECTOR
SIDE SHIFT #0010
1шт.
105
S611-012001
O-RING
SIDE SHIFT #0081
2шт.
105
S611-012001
O-RING
S/SHIFT,15LC #0080
2шт.
105
S611-012001
O-RING
S/SHIFT,15LC #0081
1шт.
105
S611-012001
O-RING
S/SHIFT,18LC #0034
2шт.
105
S611-012001
O-RING
S/SHIFT,18LC #0035
1шт.
105
S611-012001
O-RING
S/SHIFT,20LCA #0046
2шт.
105
S611-012001
O-RING
S/SHIFT,20LCA #0047
1шт.
107
33FY-90600
CONNECTOR
1шт.
107
33FY-90600
CONNECTOR
18LC #0035
1шт.
