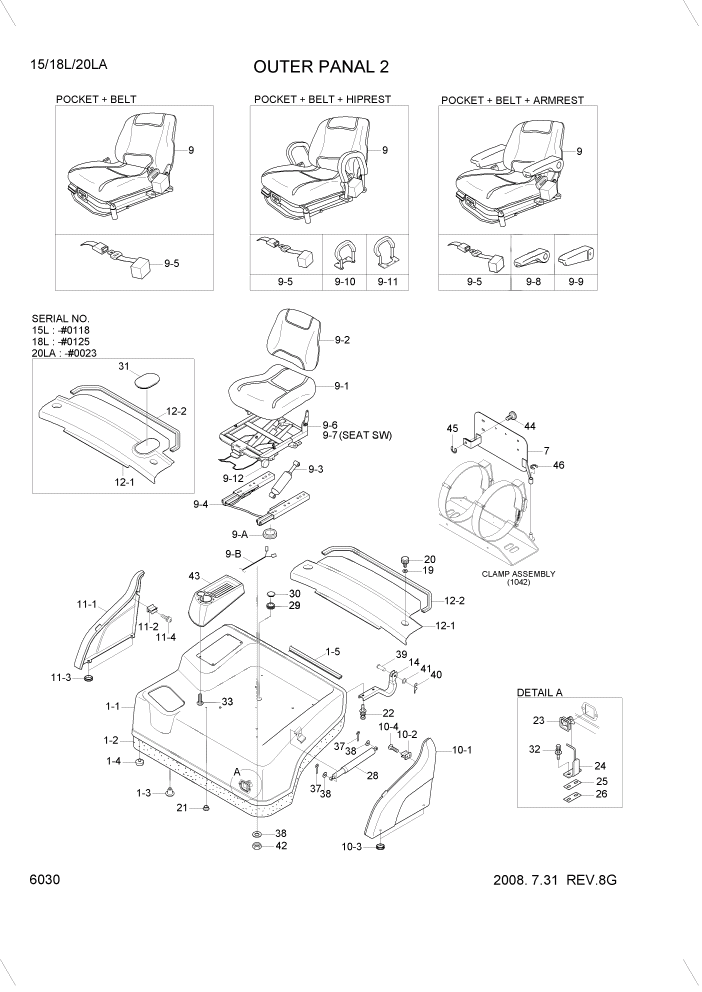

Запчасти Hyundai 15LC/18LC/20LCA-7 PAGE 6030 OUTER PANEL 2 СТРУКТУРА

1

71HG-10012

BONNET ASSY

1шт.

1-1

71HG-10022

BONNET

1шт.

1-2

F12100190

CUSHION

2шт.

1-3

S132-061656

SCREW-W/WASHER

4шт.

1-4

S771-008000

WEATHER STRIP

1шт.

1-5

S772-021200

WEATHER STRIP

1шт.

8

71HG-10510

STRIKER

1шт.

9

71FG-10521

SEAT ASSY(PKT)

W/O OPSS

1шт.

9

71FG-10531

SEAT ASSY(PKT+BT)

W/O OPSS

1шт.

9

71FG-10541

SEAT ASSY(PKT+BT+AR)

W/O OPSS

1шт.

9

71FG-10551

SEAT ASSY(PKT+BT+HR)

W/O OPSS

1шт.

9

71FH-10511

SEAT ASSY

TRAVEL OPSS

1шт.

9

71FH-10521

SEAT ASSY(PKT+BT)

TRAVEL OPSS

1шт.

9

71FH-10531

SEAT ASSY(PKT+BT+HR)

TRAVEL OPSS

1шт.

9

71FH-10541

SEAT ASSY(PKT+BT+AR)

TRAVEL OPSS

1шт.

9-A

310006540

SWITCH-SEAT

OPSS

1шт.

9-B

B51800050

HARNESS-SEAT

OPSS

1шт.

9-1

H31013-100C

CUSHION ASSY

1шт.

9-2

H31013-200B

BACK ASSY

1шт.

9-3

H31013-360

SHOCK ABSORBER ASSY

1шт.

9-4

H31013-600B

SLIDE TRACK ASSY

1шт.

9-5

89890-8A610

BELT-SEAT

WITH BELT

1шт.

9-6

H31023-300G

SUSPENSION

W/O OPSS

1шт.

9-7

H31023-301G

SUSPENSION

TRAVEL OPSS

1шт.

9-8

H31010-500

ARM RESTRAINT-LH

WITH ARM-REST

1шт.

9-9

H31015-500

ARM RESTRAINT-RH

WITH ARM-REST

1шт.

9-1

H31010-700

HIP RESTRAINT-LH

WITH ARM-REST

1шт.

9-11

H31015-700

HIP RESTRAINT-RH

WITH ARM-REST

1шт.

9-12

71FH-10590

KNOB-RECLINER

1шт.

10

71HG-10031

SUB BONNET ASSY

1шт.

11

71FJ-10070

HINGE

2шт.

12

S461-320202

PIN-SPLIT

2шт.

13

S491-160402

PIN-CLEVIS

2шт.

14

S403-162006

WASHER-PLAIN

2шт.

15

FAC0700820-01

KNOB

2шт.

16

71FE-10170

WASHER-RUBBER

2шт.

17

71HA-10610

HINGE

1шт.

18

S035-082526

BOLT-W/WASHER

5шт.

19

71FE-10071

GAS SPRING

1шт.

20

S461-200152

PIN-SPLIT

2шт.

21

S403-082006

WASHER-PLAIN

7шт.

22

71HG-10520

SHIM(2.0T)

#0001

1шт.

23

71HG-10530

SHIM(4.0T)

#0001

1шт.

26

S275-08000B

NUT-SELF LOCKING

4шт.
