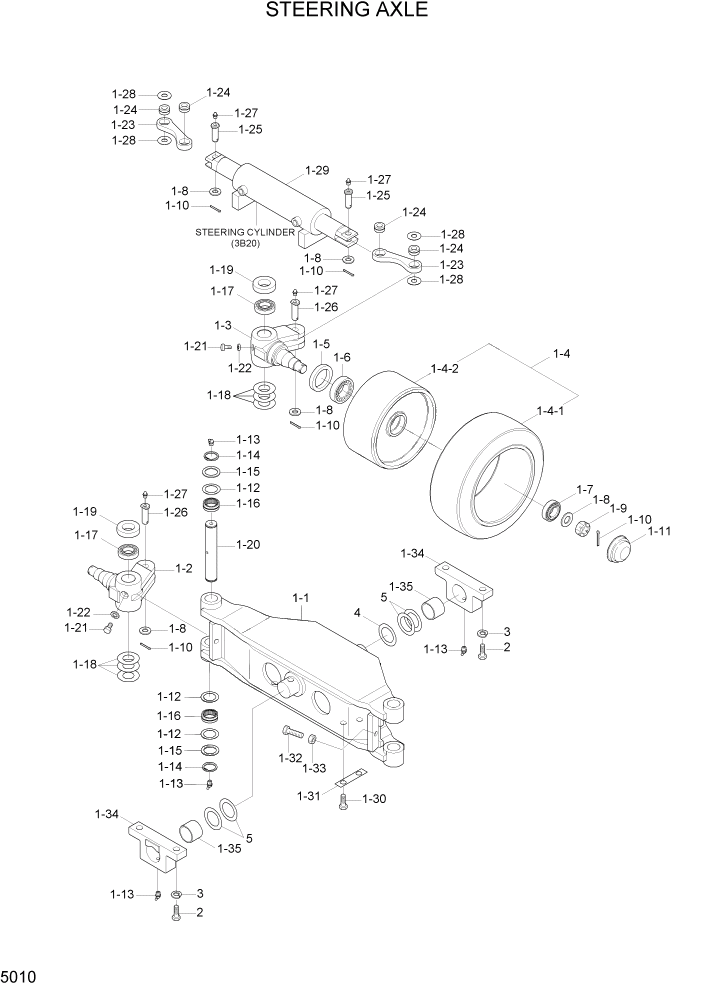

Запчасти Hyundai 15LC/18LC/20LCA-7 PAGE 5010 STEERING AXLE СИСТЕМА УПРАВЛЕНИЯ

1

81HG-50100

STEERING AXLE ASSY

CUSHION

1шт.

1

81HG-50500

STEERING AXLE ASSY

NON MARKING

1шт.

1-1

81HG-50110

STEERING AXLE WA

1шт.

1-2

81HG-50040

KNUCKLE-RH

1шт.

1-3

81HG-50050

KNUCKLE-LH

1шт.

1-4

81HG-50010

TIRE & RIM ASSY

CUSHION

2шт.

1-4-1

81HG-50020

TIRE-CUSHION

CUSHION

1шт.

1-4-2

81HG-50030

HUB-WHEEL

CUSHION

1шт.

1-4

81HG-50080

TIRE & RIM ASSY

NON MARKING

2шт.

1-4-1

81HG-50090

TIRE-NO MARKING

NON MARKING

1шт.

1-4-2

81HG-50030

HUB-WHEEL

NON MARKING

1шт.

1-5

1322009900

SEAL-OIL

2шт.

1-6

9022101307

BEARING-TAPER ROLLER

2шт.

1-7

9022101305

BEARING-TAPER ROLLER

2шт.

1-8

S403-201006

WASHER-PLAIN

6шт.

1-9

22B124000

NUT-LOW CASTLE

2шт.

1-1

S461-500452

PIN-SPLIT

6шт.

1-11

3672009300-01

CAP-HUB

2шт.

1-12

1322001400

SEAL-OIL

6шт.

1-13

S652-810008

NIPPLE-GREASE

6шт.

1-14

S601-030004

RING-RETAINING,C-TYPE

4шт.

1-15

3555003000-01

WASHER

4шт.

1-16

9022900008

BEARING-NEEDLE

4шт.

1-17

9021301206

BEARING-THRUST

2шт.

1-18

FBC0500170

SHIM(0.13T)

6шт.

1-19

3555001800-01

CAP-BEARING THRUST

2шт.

1-2

FHC0503001

PIN-KING

2шт.

1-21

FAD0500150-DA

BOLT-SPECIAL

2шт.

1-22

S411-100006

WASHER-SPRING

2шт.

1-23

81HG-50060

LINK

2шт.

1-24

6600264900

BEARING

4шт.

1-25

F31410260

PIN-CLEVIS

2шт.

1-26

B32410140

PIN-CLEVIS

2шт.

1-27

S651-060008

NIPPLE-GREASE

4шт.

1-28

Q100338000

WASHER-THRUST

4шт.

1-29

@

CYLINDER ASSY

NOT

1шт.

1-3

S017-16035D

BOLT-HEX

4шт.

1-31

Q100327000

PLATE-LOCK

2шт.

1-32

206514050

BOLT-HEX

2шт.

1-33

S205-141006

NUT-HEX

2шт.

1-34

81HG-50150

BLOCK

2шт.

1-35

FAC0500160

BUSHING

2шт.

2

S017-20060D

BOLT-HEX

4шт.

3

S411-200006

WASHER-SPRING

4шт.

4

3591000700

SHIM(1.0T)

1шт.

5

3591000800-01

SHIM(0.5T)

4шт.
