Артикул
Название
Примечание
Количество
*

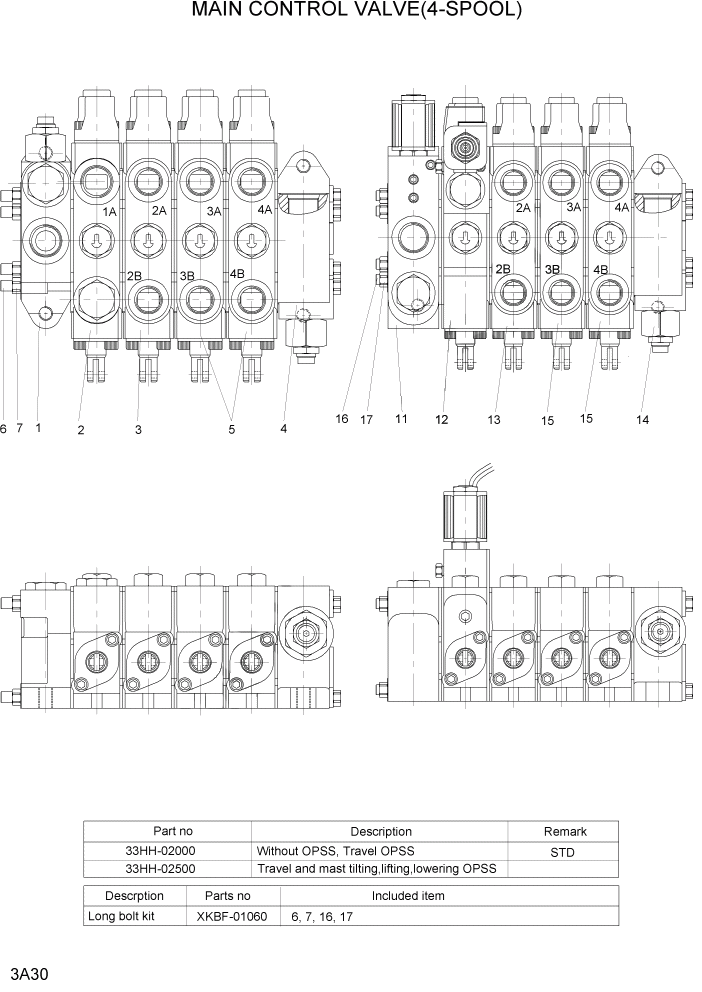

33HH-02000
MCV-4SP(NO/TR OPSS)
SEE ILLUST
1шт.
1
XKBF-01115
INLET BLOCK ASSY
SEE 3A40
1шт.
2
XKBF-01116
LIFT BLOCK ASSY
SEE 3A60
1шт.
3
XKBF-01051
TILT BLOCK ASSY
SEE 3A70
1шт.
4
XKBF-01054
OUTLET BLOCK ASSY
SEE 3A50
1шт.
5
XKBF-01055
AUXILIARY BLOCK ASSY
SEE 3A80
2шт.
K6
XKBF-01059
LONG BOLT
4шт.
K7
XKBF-00566
NUT
4шт.
*
33HH-02500
MCV-4SP(TR-MA OPSS)
SEE ILLUST
1шт.
11
XKBF-01049
INLET BLOCK ASSY
SEE 3A40
1шт.
12
XKBF-01050
LIFT BLOCK ASSY
SEE 3A60
1шт.
13
XKBF-01051
TILT BLOCK ASSY
SEE 3A70
1шт.
14
XKBF-01054
OUTLET BLOCK ASSY
SEE 3A50
1шт.
15
XKBF-01055
AUXILIARY BLOCK ASSY
SEE 3A80
2шт.
K16
XKBF-01059
LONG BOLT
4шт.
K17
XKBF-00566
NUT
4шт.
Выбрано товаров: 18
