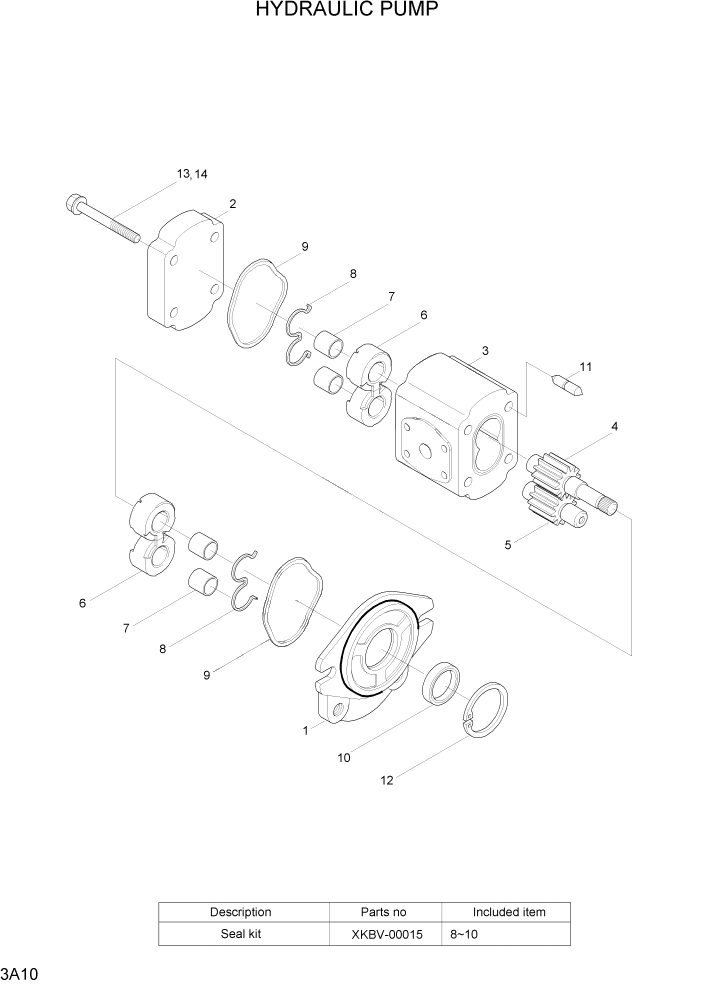

Запчасти Hyundai 15LC/18LC/20LCA-7 PAGE 3A10 HYDRAULIC PUMP ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

31FN-01000

HYDRAULIC PUMP

1шт.

1

31FN-01010

FRONT COVER

1шт.

2

31FN-01020

REAR COVER

1шт.

3

31FN-01030

GEAR HOUSING

1шт.

4

31FN-01040

DRIVE SHAFT GEAR

1шт.

5

31FN-01050

DRIVEN GEAR

1шт.

6

31FJ-01060

BLOCK-BUSH

2шт.

7

31FJ-01070

BEARING-DRY

4шт.

K8

31FJ-01080

SEAL-CHANNEL

2шт.

K9

31FJ-01090

SEAL-SQUARE

2шт.

K10

31FJ-01100

SEAL-LIP

1шт.

11

31FJ-01110

PIN-DOWEL

4шт.

12

31FJ-01120

RING-SNAP

1шт.

13

31FN-01060

SOCKET HEAD BOLT

4шт.

14

31FN-01070

SPRING WASHER

4шт.

K

XKBV-00015

SEAL KIT

SEE ILLUST

1шт.

S20

PAS9P-00100

SEAL-LIP

1шт.

S21

CSA9P-00502

SEAL-CHANNEL

2шт.

S22

SQA9P-00201

SEAL-SQUARE

2шт.

S

ASKIT-59100

AS KIT

INCL 20-22

1шт.
