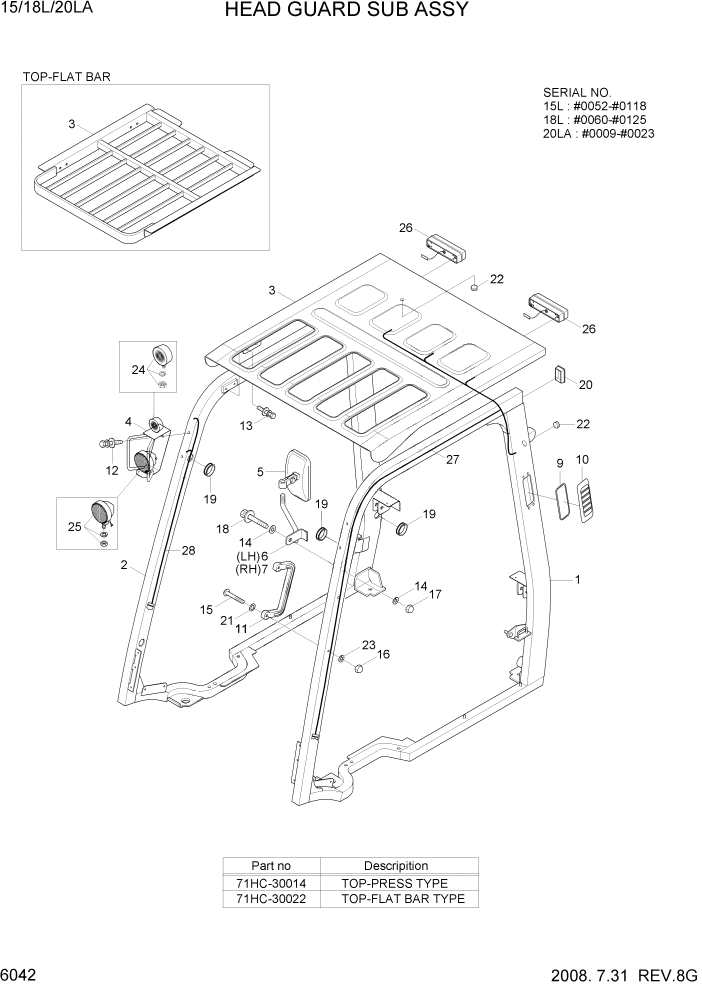

Запчасти Hyundai 15L/18L/20LA PAGE 6042 HEAD GUARD SUB ASSY(OLD) СТРУКТУРА

*

71HC-30013

HEAD GUARD SUB ASSY

15L,SEE ILLUST #0052 - #0088

1шт.

*

71HC-30014

HEAD GUARD SUB ASSY

15L,SEE ILLUST #0089 - #0118

1шт.

*

71HC-30013

HEAD GUARD SUB ASSY

18L,SEE ILLUST #0060 - #0095

1шт.

*

71HC-30014

HEAD GUARD SUB ASSY

18L,SEE ILLUST #0096 - #0125

1шт.

*

71HC-30013

HEAD GUARD SUB ASSY

20LA,SEE ILLUST #0009 - #0014

1шт.

*

71HC-30014

HEAD GUARD SUB ASSY

20LA,SEE ILLUST #0015 - #0023

1шт.

1

71HC-31002

STAY WA-LH

15L #0088

1шт.

1

71HC-31003

STAY WA-LH

15L #0089 - #0118

1шт.

1

71HC-31002

STAY WA-LH

18L #0095

1шт.

1

71HC-31003

STAY WA-LH

18L #0096 - #0125

1шт.

1

71HC-31002

STAY WA-LH

20LA #0014

1шт.

1

71HC-31003

STAY WA-LH

20LA #0015 - #0023

1шт.

2

71HC-32001

STAY WA-RH

15L #0088

1шт.

2

71HC-32002

STAY WA-RH

15L #0089 - #0118

1шт.

2

71HC-32001

STAY WA-RH

18L #0095

1шт.

2

71HC-32002

STAY WA-RH

18L #0096 - #0125

1шт.

2

71HC-32001

STAY WA-RH

20LA #0014

1шт.

2

71HC-32002

STAY WA-RH

20LA #0015 - #0023

1шт.

3

71HC-33002

OHG WA-TOP

TOP-PRESS TYPE

1шт.

4

71HA-34000

PROTECTOR-LAMP

2шт.

5

71FG-30220

MIRROR-BACK

2шт.

6

71FG-30360

BRACKET-MIRROR,LH

1шт.

7

71FG-30370

BRACKET-MIRROR,RH

1шт.

9

71HF-31240

PAD-RUBBER

1шт.

10

51FA-90040

COVER-AIR INTAKE

1шт.

11

71FH-30050

GRIP

1шт.

12

S035-082026

BOLT-W/WASHER

4шт.

13

S035-123036

BOLT-W/WASHER

8шт.

14

S403-10200B

WASHER-PLAIN

4шт.

15

S179-080656

SCREW-SOCKET RD HD

2шт.

16

S295-080006

CAP NUT-DOMED

2шт.

17

S295-100006

NUT-DOMED CAP

2шт.

18

S037-106056

BOLT-W/WASHER

2шт.

19

S880-132040

GROMMET

3шт.

20

71FY-31031

CAP-RUBBER

2шт.

21

S403-08200B

WASHER-PLAIN

2шт.

22

S681-190400

GROMMET

2шт.

23

S411-080006

WASHER-SPRING

2шт.

24

F12840020

LAMP-FLASHER

2шт.

25

F12840010

LAMP SUB ASSY-WORK

2шт.

26

21FH-77020

LAMP-COMBINATION

2шт.

27

21HA-10041

HARNESS-HEADGUARD

1шт.

28

21FG-10360

HARNESS(R/L)-SUPPORT

1шт.

*

71HC-30021

HEAD GUARD SUB ASSY

15L,SEE ILLUST #0052 - #0088

1шт.

*

71HC-30022

HEAD GUARD SUB ASSY

15L,SEE ILLUST #0089 - #0118

1шт.

*

71HC-30021

HEAD GUARD SUB ASSY

18L,SEE ILLUST #0060 - #0095

1шт.

*

71HC-30022

HEAD GUARD SUB ASSY

18L,SEE ILLUST #0096 - #0125

1шт.

*

71HC-30021

HEAD GUARD SUB ASSY

20LA,SEE ILLUST #0009 - #0014

1шт.

*

71HC-30022

HEAD GUARD SUB ASSY

20LA,SEE ILLUST #0015 - #0023

1шт.

1

71HC-31002

STAY WA-LH

15L #0088

1шт.

1

71HC-31003

STAY WA-LH

15L #0089 - #0118

1шт.

1

71HC-31002

STAY WA-LH

18L #0095

1шт.

1

71HC-31003

STAY WA-LH

18L #0096 - #0125

1шт.

1

71HC-31002

STAY WA-LH

20LA #0014

1шт.

1

71HC-31003

STAY WA-LH

20LA #0015 - #0023

1шт.

2

71HC-32001

STAY WA-RH

15L #0088

1шт.

2

71HC-32002

STAY WA-RH

15L #0089 - #0118

1шт.

2

71HC-32001

STAY WA-RH

18L #0095

1шт.

2

71HC-32002

STAY WA-RH

18L #0096 - #0125

1шт.

2

71HC-32001

STAY WA-RH

20LA #0014

1шт.

2

71HC-32002

STAY WA-RH

20LA #0015 - #0023

1шт.

3

71HC-40000

OHG WA-TOP

TOP-FLAT BAR

1шт.

4

71HA-34000

PROTECTOR-LAMP

2шт.

5

71FG-30220

MIRROR-BACK

2шт.

6

71FG-30360

BRACKET-MIRROR,LH

1шт.

7

71FG-30370

BRACKET-MIRROR,RH

1шт.

9

71HF-31240

PAD-RUBBER

1шт.

10

51FA-90040

COVER-AIR INTAKE

1шт.

11

71FH-30050

GRIP

1шт.

12

S035-082026

BOLT-W/WASHER

4шт.

13

S035-123036

BOLT-W/WASHER

8шт.

14

S403-10200B

WASHER-PLAIN

4шт.

15

S179-080656

SCREW-SOCKET RD HD

2шт.

16

S295-080006

CAP NUT-DOMED

2шт.

17

S295-100006

NUT-DOMED CAP

2шт.

18

S037-106056

BOLT-W/WASHER

2шт.

19

S880-132040

GROMMET

3шт.

20

71FY-31031

CAP-RUBBER

2шт.

21

S403-08200B

WASHER-PLAIN

2шт.

22

S681-190400

GROMMET

2шт.

23

S411-080006

WASHER-SPRING

2шт.

24

F12840020

LAMP-FLASHER

2шт.

25

F12840010

LAMP SUB ASSY-WORK

2шт.

26

21FH-77020

LAMP-COMBINATION

2шт.

27

21HA-10041

HARNESS-HEADGUARD

1шт.

28

21FG-10360

HARNESS(R/L)-SUPPORT

1шт.
