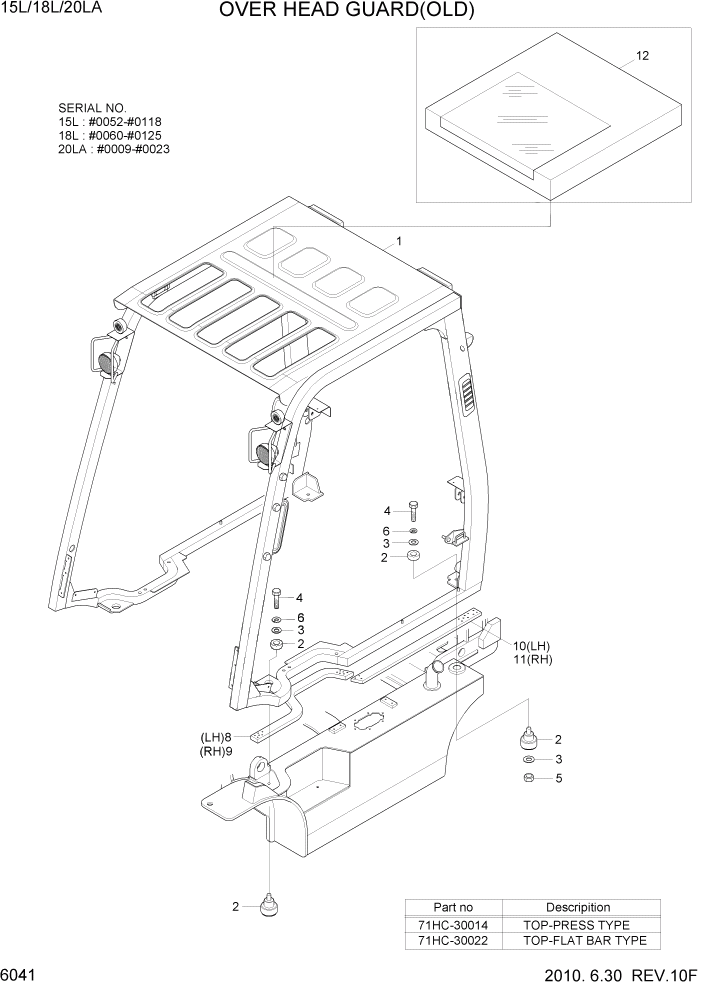

Запчасти Hyundai 15L/18L/20LA PAGE 6041 OVER HEARD GUARD(OLD) СТРУКТУРА

1

71HC-30013

HEAD GUARD SUB ASSY

15L,SEE ILLUST #0052 - #0088

1шт.

1

71HC-30014

HEAD GUARD SUB ASSY

15L,SEE ILLUST #0089 - #0118

1шт.

1

71HC-30013

HEAD GUARD SUB ASSY

18L,SEE ILLUST #0060 - #0095

1шт.

1

71HC-30014

HEAD GUARD SUB ASSY

18L,SEE ILLUST #0096 - #0125

1шт.

1

71HC-30013

HEAD GUARD SUB ASSY

20LA,SEE ILLUST #0009 - #0014

1шт.

1

71HC-30014

HEAD GUARD SUB ASSY

20LA,SEE ILLUST #0015 - #0023

1шт.

1

71HC-30021

HEAD GUARD SUB ASSY

15L,SEE ILLUST #0052 - #0088

1шт.

1

71HC-30022

HEAD GUARD SUB ASSY

15L,SEE ILLUST #0089 - #0118

1шт.

1

71HC-30021

HEAD GUARD SUB ASSY

18L,SEE ILLUST #0060 - #0095

1шт.

1

71HC-30022

HEAD GUARD SUB ASSY

18L,SEE ILLUST #0096 - #0125

1шт.

1

71HC-30021

HEAD GUARD SUB ASSY

20LA,SEE ILLUST #0009 - #0014

1шт.

1

71HC-30022

HEAD GUARD SUB ASSY

20LA,SEE ILLUST #0015 - #0023

1шт.

2

11S1-3016

RUBBER-MOUNT

4шт.

3

51FA-90100-DA

WASHER-MOUNT

6шт.

4

S017-120906

BOLT-HEX

4шт.

5

S275-12000B

NUT-SELF LOCKING

2шт.

6

S411-120006

WASHER-SPRING

4шт.

8

71HC-30060

SPONGE-STEP,LH

1шт.

9

71HC-30070

SPONGE-STEP,RH

1шт.

10

71HC-30080

SPONGE-STEP,LH

1шт.

11

71HC-30090

SPONGE-STEP,RH

1шт.
