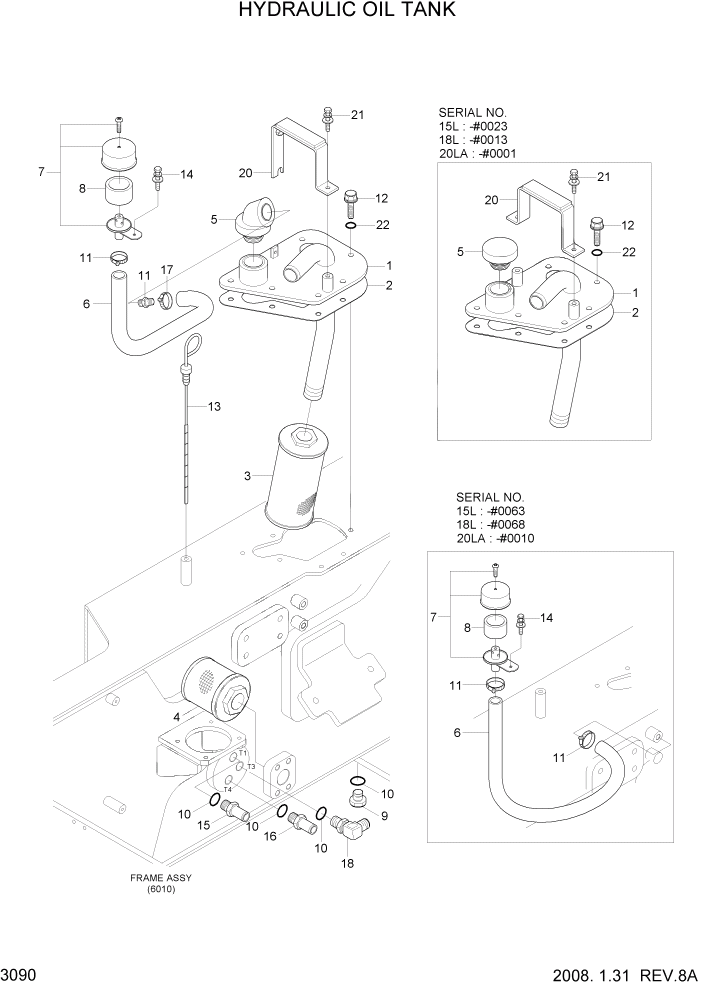

Запчасти Hyundai 15L/18L/20LA PAGE 3090 HYDRAULIC OIL TANK ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

31HC-30015

FLANGE WA-HYD TANK

15L #0023

1шт.

1

31HC-30016

FLANGE WA-HYD TANK

15L #0024

1шт.

1

31HC-30015

FLANGE WA-HYD TANK

18L #0013

1шт.

1

31HC-30016

FLANGE WA-HYD TANK

18L #0014

1шт.

1

31HC-30015

FLANGE WA-HYD TANK

20LA #0001

1шт.

1

31HC-30016

FLANGE WA-HYD TANK

20LA #0001

1шт.

2

31HA-30020

GASKET-HYD TANK

1шт.

3

F42650010

FILTER-RETURN

1шт.

4

FHC1007100

STRAINER-SUCTION

1шт.

5

31HA-30050

CAP-HYD OIL

15L #0063

1шт.

5

31HM-30010

CAP-HYD OIL

15L #0064

1шт.

5

31HA-30050

CAP-HYD OIL

18L #0068

1шт.

5

31HM-30010

CAP-HYD OIL

18L #0069

1шт.

5

31HA-30050

CAP-HYD OIL

20LA #0010

1шт.

5

31HM-30010

CAP-HYD OIL

20LA #0011

1шт.

6

31FF-81590

HOSE-RUBBER(350L)

15L #0025

1шт.

6

31FF-81640

HOSE-RUBBER(O15.9X400L)

15L #0026 - #0063

1шт.

6

31HM-30040

HOSE-A/BREATHER

15L #0064

1шт.

6

31FF-81590

HOSE-RUBBER(350L)

18L #0020

1шт.

6

31FF-81640

HOSE-RUBBER(O15.9X400L)

18L #0021 - #0068

1шт.

6

31HM-30040

HOSE-A/BREATHER

18L #0069

1шт.

6

31FF-81590

HOSE-RUBBER(350L)

20LA #0004

1шт.

6

31FF-81640

HOSE-RUBBER(O15.9X400L)

20LA #0005 - #0010

1шт.

6

31HM-30040

HOSE-A/BREATHER

20LA #0011

1шт.

7

31FV-30031

CAP-AIR BREATHER

1шт.

8

F23650200

FILTER-AIR BREATHER

1шт.

9

31FA-30430

PLUG-MAGNETIC

15L #0034

1шт.

9

31HM-30020

PLUG-MAGNETIC

15L #0035

1шт.

9

31FA-30430

PLUG-MAGNETIC

18L #0039

1шт.

9

31HM-30020

PLUG-MAGNETIC

18L #0040

1шт.

9

31FA-30430

PLUG-MAGNETIC

20LA #0007

1шт.

9

31HM-30020

PLUG-MAGNETIC

20LA #0008

1шт.

10

S631-014004

O-RING

4шт.

11

S520-027000

CLAMP-HOSE

2шт.

12

31HA-30041

BOLT-HEX,FLANGE

7шт.

13

31HA-30060

DIPSTICK-HYD TANK

1шт.

14

S035-061526

BOLT-W/WASHER

1шт.

15

31HA-20160

CONNECTOR-BULK HOSE

1шт.

16

31HA-20170

CONNECTOR-BULK HOSE

1шт.

17

31HM-30031

CONNECTOR-BULK HOSE

15L #0064

1шт.

17

31HM-30031

CONNECTOR-BULK HOSE

18L #0069

1шт.

17

31HM-30031

CONNECTOR-BULK HOSE

20LA #0011

1шт.

18

X520-110012

ELBOW-90,ORFS

1шт.

20

31HC-30020

CLAMP-BATTERY

15L #0023

1шт.

20

31HC-30021

CLAMP-BATTERY

15L #0024

1шт.

20

31HC-30020

CLAMP-BATTERY

18L #0013

1шт.

20

31HC-30021

CLAMP-BATTERY

18L #0014

1шт.

20

31HC-30020

CLAMP-BATTERY

20LA #0001

1шт.

20

31HC-30021

CLAMP-BATTERY

20LA #0001

1шт.

21

S035-082026

BOLT-W/WASHER

2шт.

22

S631-008004

O-RING

7шт.
