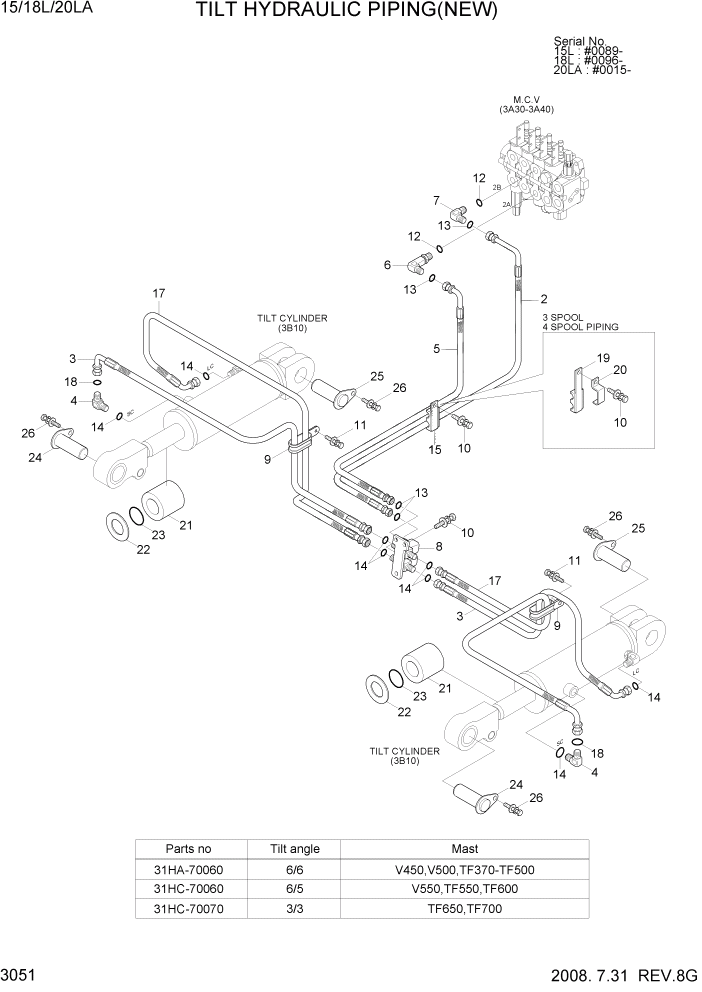

Запчасти Hyundai 15L/18L/20LA PAGE 3051 TILT HYDRAULIC PIPING(NEW) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

@

TILT PIPING GROUP

NOT #0089

1шт.

*

@

TILT PIPING GROUP

NOT #0096

1шт.

*

@

TILT PIPING GROUP

NOT #0015

1шт.

2

31HC-70092

HOSE ASSY-ORFS 0X90

1шт.

3

P933-044011

HOSE ASSY-ORFS 0X90

2шт.

4

31HM-70010

ELBOW-90D,ORFS

2шт.

5

31HC-70102

HOSE ASSY-ORFS 0X90

1шт.

6

31HA-10070

ELBOW-90D,LONG

1шт.

7

31HA-10060

ELBOW-90

1шт.

8

31HA-70012

TEE BLOCK WA

1шт.

9

31HM-70041

2

10

S035-082526

BOLT-W/WASHER

3шт.

11

S035-081526

BOLT-W/WASHER

2шт.

12

S611-016001

O-RING

2шт.

13

S621-012001

O-RING

4шт.

14

S621-011001

O-RING

8шт.

15

31HA-70120

CLAMP-HOSE

2-SPOOL

1шт.

17

P933-044012

HOSE ASSY-ORFS 0X90

2шт.

18

S631-014004

O-RING

2шт.

19

31HA-70130

CLAMP-HOSE

3-SPOOL

1шт.

20

31HA-70140

CLAMP-HOSE

15L,4-SPOOL #0094

1шт.

20

31HA-70140

CLAMP-HOSE

18L,4-SPOOL #0106

1шт.

20

31HA-70140

CLAMP-HOSE

20LA,4-SPOOL #0016

1шт.

21

31HA-70060

SPACER-TILT CYL-63MM

SEE ILLUST

2шт.

21

31HC-70060

SPACER-TILT CYL-70MM

SEE ILLUST

2шт.

21

31HC-70070

SPACER-TILT CYL-84MM

SEE ILLUST

2шт.

22

31FE-70210

SHIM(1.0T)

V450-TF700

4шт.

23

S631-035004

O-RING

V450-TF700

2шт.

24

FHC1002200

PIN

W/O MAST

2шт.

25

61HM-18000

PIN WA

W/O MAST

2шт.

26

S037-102526

BOLT-W/WASHER

W/O MAST

4шт.
