Запчасти Hyundai 15L/18L/20LA PAGE 7060 3-SPOOL HYDRAULIC PIPING(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

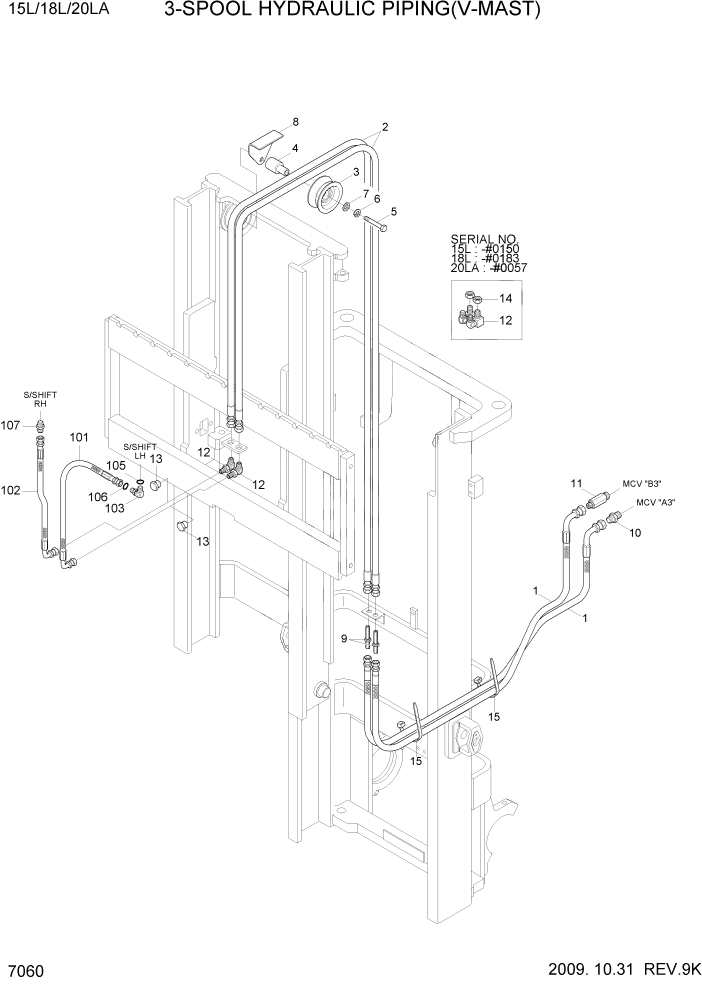

Схема запчастей Hyundai 15L/18L/20LA - PAGE 7060 3-SPOOL HYDRAULIC PIPING(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

Артикул

Название

Примечание

Количество

1

P933-044027

HOSE ASSY-ORFS 0X90

15L #0138

2шт.

1

P933-043027

HOSE ASSY-ORFS 0X90

15L #0139

2шт.

1

P933-044027

HOSE ASSY-ORFS 0X90

18L #0158

2шт.

1

P933-043027

HOSE ASSY-ORFS 0X90

18L #0159

2шт.

1

P933-044027

HOSE ASSY-ORFS 0X90

20LA #0046

2шт.

1

P933-043027

HOSE ASSY-ORFS 0X90

20LA #0047

2шт.

2

P910-044041

HOSE ASSY-ORFS 0X0

V250, 15L #0138

2шт.

2

P910-043041

HOSE ASSY-ORFS 0X0

V250, 15L #0139

2шт.

2

P910-044041

HOSE ASSY-ORFS 0X0

V250, 18L #0158

2шт.

2

P910-043041

HOSE ASSY-ORFS 0X0

V250, 18L #0159

2шт.

2

P910-044041

HOSE ASSY-ORFS 0X0

V250, 20LA #0046

2шт.

2

P910-043041

HOSE ASSY-ORFS 0X0

V250, 20LA #0047

2шт.

2

P910-044045

HOSE ASSY-ORFS 0X0

V270, 15L #0138

2шт.

2

P910-043045

HOSE ASSY-ORFS 0X0

V270, 15L #0139

2шт.

2

P910-044045

HOSE ASSY-ORFS 0X0

V270, 18L #0158

2шт.

2

P910-043045

HOSE ASSY-ORFS 0X0

V270, 18L #0159

2шт.

2

P910-044045

HOSE ASSY-ORFS 0X0

V270, 20LA #0046

2шт.

2

P910-043045

HOSE ASSY-ORFS 0X0

V270, 20LA #0047

2шт.

2

P910-044051

HOSE ASSY-ORFS 0X0

V300, 15L #0138

2шт.

2

P910-043051

HOSE ASSY-ORFS 0X0

V300, 15L #0139

2шт.

2

P910-044051

HOSE ASSY-ORFS 0X0

V300, 18L #0158

2шт.

2

P910-043051

HOSE ASSY-ORFS 0X0

V300, 18L #0159

2шт.

2

P910-044051

HOSE ASSY-ORFS 0X0

V300, 20LA #0046

2шт.

2

P910-043051

HOSE ASSY-ORFS 0X0

V300, 20LA #0047

2шт.

2

P910-044057

HOSE ASSY-ORFS 0X0

V330, 15L #0138

2шт.

2

P910-043057

HOSE ASSY-ORFS 0X0

V330, 15L #0139

2шт.

2

P910-044057

HOSE ASSY-ORFS 0X0

V330, 18L #0158

2шт.

2

P910-043057

HOSE ASSY-ORFS 0X0

V330, 18L #0159

2шт.

2

P910-044057

HOSE ASSY-ORFS 0X0

V330, 20LA #0046

2шт.

2

P910-043057

HOSE ASSY-ORFS 0X0

V330, 20LA #0047

2шт.

2

P910-044061

HOSE ASSY-ORFS 0X0

V350, 15L #0138

2шт.

2

P910-043061

HOSE ASSY-ORFS 0X0

V350, 15L #0139

2шт.

2

P910-044061

HOSE ASSY-ORFS 0X0

V350, 18L #0158

2шт.

2

P910-043061

HOSE ASSY-ORFS 0X0

V350, 18L #0159

2шт.

2

P910-044061

HOSE ASSY-ORFS 0X0

V350, 20LA #0046

2шт.

2

P910-043061

HOSE ASSY-ORFS 0X0

V350, 20LA #0047

2шт.

2

P910-044065

HOSE ASSY-ORFS 0X0

V370, 15L #0138

2шт.

2

P910-043065

HOSE ASSY-ORFS 0X0

V370, 15L #0139

2шт.

2

P910-044065

HOSE ASSY-ORFS 0X0

V370, 18L #0158

2шт.

2

P910-043065

HOSE ASSY-ORFS 0X0

V370, 18L #0159

2шт.

2

P910-044065

HOSE ASSY-ORFS 0X0

V370, 20LA #0046

2шт.

2

P910-043065

HOSE ASSY-ORFS 0X0

V370, 20LA #0047

2шт.

2

P910-044071

HOSE ASSY-ORFS 0X0

V400, 15L #0138

2шт.

2

P910-043071

HOSE ASSY-ORFS 0X0

V400, 15L #0139

2шт.

2

P910-044071

HOSE ASSY-ORFS 0X0

V400, 18L #0158

2шт.

2

P910-043071

HOSE ASSY-ORFS 0X0

V400, 18L #0159

2шт.

2

P910-044071

HOSE ASSY-ORFS 0X0

V400, 20LA #0046

2шт.

2

P910-043071

HOSE ASSY-ORFS 0X0

V400, 20LA #0047

2шт.

2

P910-044085

HOSE ASSY-ORFS 0X0

V450, 15L #0138

2шт.

2

P910-043085

HOSE ASSY-ORFS 0X0

V450, 15L #0139

2шт.

2

P910-044085

HOSE ASSY-ORFS 0X0

V450, 18L #0158

2шт.

2

P910-043085

HOSE ASSY-ORFS 0X0

V450, 18L #0159

2шт.

2

P910-044085

HOSE ASSY-ORFS 0X0

V450, 20LA #0046

2шт.

2

P910-043085

HOSE ASSY-ORFS 0X0

V450, 20LA #0047

2шт.

2

P910-044095

HOSE ASSY-ORFS 0X0

V500, 15L #0138

2шт.

2

P910-043095

HOSE ASSY-ORFS 0X0

V500, 15L #0139

2шт.

2

P910-044095

HOSE ASSY-ORFS 0X0

V500, 18L #0158

2шт.

2

P910-043095

HOSE ASSY-ORFS 0X0

V500, 18L #0159

2шт.

2

P910-044095

HOSE ASSY-ORFS 0X0

V500, 20LA #0046

2шт.

2

P910-043095

HOSE ASSY-ORFS 0X0

V500, 20LA #0047

2шт.

2

P910-044105

HOSE ASSY-ORFS 0X0

V550, 15L #0138

2шт.

2

P910-043105

HOSE ASSY-ORFS 0X0

V550, 15L #0139

2шт.

2

P910-044105

HOSE ASSY-ORFS 0X0

V550, 18L #0158

2шт.

2

P910-043105

HOSE ASSY-ORFS 0X0

V550, 18L #0159

2шт.

2

P910-044105

HOSE ASSY-ORFS 0X0

V550, 20LA #0046

2шт.

2

P910-043105

HOSE ASSY-ORFS 0X0

V550, 20LA #0047

2шт.

3

31HH-80300

PULLEY-HOSE

1шт.

4

31FV-90130

PIN-HOSE PULLEY

1шт.

5

S017-120606

BOLT-HEX

1шт.

6

S411-120006

WASHER-SPRING

1шт.

7

S441-120006

WASHER-HARDENED

1шт.

8

61HH-18510

GUARD

1шт.

9

X540-120001

CONNECTOR-ORFS

2шт.

10

31HG-90140

CONNECTOR

1шт.

11

31HG-90120

CONNECTOR

1шт.

12

31FY-90500

ELBOW WA

2шт.

13

X710-100102

CAP-HYD,ORFS

2шт.

14

33FP-90380-DA

NUT

15L #0138

4шт.

14

33FP-90380-DA

NUT

15L #0139

2шт.

14

33FP-90380-DA

NUT

18L #0158

4шт.

14

33FP-90380-DA

NUT

18L #0159

2шт.

14

33FP-90380-DA

NUT

20LA #0046

4шт.

14

33FP-90380-DA

NUT

20LA #0047

2шт.

15

S552-102370

CLAMP-BAND

3шт.

16

S403-141006

WASHER-PLAIN

15L #0138

2шт.

16

S403-141006

WASHER-PLAIN

18L #0158

2шт.

16

S403-141006

WASHER-PLAIN

20LA #0046

2шт.

101

P913-044008

HOSE ASSY-ORFS 0X0

SIDE SHIFT #0138

1шт.

101

P913-043008

HOSE ASSY

SIDE SHIFT #0139 - #0167

1шт.

101

P930-043009

HOSE ASSY-ORFS 0X90

15L #0168

1шт.

101

P913-044008

HOSE ASSY-ORFS 0X0

SIDE SHIFT #0158

1шт.

101

P913-043008

HOSE ASSY

SIDE SHIFT #0159 - #0186

1шт.

101

P930-043009

HOSE ASSY-ORFS 0X90

18L #0187

1шт.

101

P913-044008

HOSE ASSY-ORFS 0X0

SIDE SHIFT #0046

1шт.

101

P913-043008

HOSE ASSY

SIDE SHIFT #0047 - #0074

1шт.

101

P930-043009

HOSE ASSY-ORFS 0X90

20LA #0075

1шт.

102

P913-044006

HOSE ASSY-ORFS 0X0

SIDE SHIFT #0138

1шт.

102

P913-043006

HOSE ASSY

SIDE SHIFT #0139 - #0167

1шт.

102

P930-043007

HOSE ASSY-ORFS 0X90

15L #0168

1шт.

102

P913-044006

HOSE ASSY-ORFS 0X0

SIDE SHIFT #0158

1шт.

102

P913-043006

HOSE ASSY

SIDE SHIFT #0159 - #0186

1шт.

102

P930-043007

HOSE ASSY-ORFS 0X90

18L #0187

1шт.

102

P913-044006

HOSE ASSY-ORFS 0X0

SIDE SHIFT #0046

1шт.

102

P913-043006

HOSE ASSY

SIDE SHIFT #0047 - #0074

1шт.

102

P930-043007

HOSE ASSY-ORFS 0X90

20LA #0075

1шт.

103

X520-310001

ELBOW-90,ORFS

SIDE SHIFT

1шт.

104

33FY-90600

CONNECTOR

SIDE SHIFT #0167

1шт.

104

33FY-90600

CONNECTOR

15L #0168

1шт.

104

33FY-90600

CONNECTOR

SIDE SHIFT #0186

1шт.

104

33FY-90600

CONNECTOR

18L #0187

1шт.

104

33FY-90600

CONNECTOR

SIDE SHIFT #0074

1шт.

104

33FY-90600

CONNECTOR

20LA #0075

1шт.

104

33FY-90600

CONNECTOR

SIDE SHIFT

1шт.

105

S611-012001

O-RING

15L #0168

1шт.

105

S611-012001

O-RING

18L #0187

1шт.

105

S611-012001

O-RING

20LA #0075

1шт.

106

S621-011001

O-RING

15L #0168

1шт.

106

S621-011001

O-RING

18L #0187

1шт.

106

S621-011001

O-RING

20LA #0075

1шт.

107

33FY-90600

CONNECTOR

15L #0168

1шт.

107

33FY-90600

CONNECTOR

18L #0187

1шт.

107

33FY-90600

CONNECTOR

20LA #0075

1шт.

12

31FY-90500

ELBOW WA

15L #0150

2шт.

12

31HN-90700

ELBOW-90,ORFS

15L #0151

2шт.

12

31FY-90500

ELBOW WA

18L #0183

2шт.

12

31HN-90700

ELBOW-90,ORFS

18L #0184

2шт.

12

31FY-90500

ELBOW WA

20LA #0057

2шт.

12

31HN-90700

ELBOW-90,ORFS

20LA #0058

2шт.

13

X710-100102

CAP-HYD,ORFS

2шт.

14

33FP-90380-DA

NUT

15L #0138

4шт.

14

33FP-90380-DA

NUT

15L #0139 - #0150

2шт.

14

33FP-90380-DA

NUT

18L #0158

4шт.

14

33FP-90380-DA

NUT

18L #0159 - #0183

2шт.

14

33FP-90380-DA

NUT

20LA #0057

4шт.

15

S552-102370

CLAMP-BAND

3шт.

16

S403-141006

WASHER-PLAIN

15L #0138

2шт.

16

S403-141006

WASHER-PLAIN

18L #0158

2шт.

16

S403-141006

WASHER-PLAIN

20LA #0046

2шт.

101

P910-044008

HOSE ASSY-ORFS 0X0

S/SHIFT,15L #0138

1шт.

101

P910-043008

HOSE ASSY-ORFS 0X0

S/SHIFT,15L #0139 - #0167

1шт.

101

P930-043009

HOSE ASSY-ORFS 0X90

S/SHIFT,15L #0168

1шт.

101

P910-044008

HOSE ASSY-ORFS 0X0

S/SHIFT,18L #0158

1шт.

101

P910-043008

HOSE ASSY-ORFS 0X0

S/SHIFT,18L #0159 - #0186

1шт.

101

P930-043009

HOSE ASSY-ORFS 0X90

S/SHIFT,18L #0187

1шт.

101

P910-044008

HOSE ASSY-ORFS 0X0

S/SHIFT,20L #0046

1шт.

101

P910-043008

HOSE ASSY-ORFS 0X0

S/SHIFT,20L #0047 - #0074

1шт.

101

P930-043009

HOSE ASSY-ORFS 0X90

S/SHIFT,20L #0075

1шт.

102

P910-044006

HOSE ASSY-ORFS 0X0

S/SHIFT,15L #0138

1шт.

102

P910-043006

HOSE ASSY-ORFS 0X0

S/SHIFT,15L #0139 - #0167

1шт.

102

P930-043007

HOSE ASSY-ORFS 0X90

S/SHIFT,15L #0168

1шт.

102

P910-044006

HOSE ASSY-ORFS 0X0

S/SHIFT,18L #0158

1шт.

102

P910-043006

HOSE ASSY-ORFS 0X0

S/SHIFT,18L #0159 - #0186

1шт.

102

P930-043007

HOSE ASSY-ORFS 0X90

S/SHIFT,18L #0187

1шт.

102

P910-044006

HOSE ASSY-ORFS 0X0

S/SHIFT,20L #0046

1шт.

102

P910-043006

HOSE ASSY-ORFS 0X0

S/SHIFT,20L #0047 - #0074

1шт.

102

P930-043007

HOSE ASSY-ORFS 0X90

S/SHIFT,20L #0075

1шт.

103

X520-310001

ELBOW-90,ORFS

S/SHIFT,15L #0138

1шт.

103

X520-310001

ELBOW-90,ORFS

S/SHIFT,15L #0139 - #0167

2шт.

103

X520-310001

ELBOW-90,ORFS

S/SHIFT,15L #0168

1шт.

103

X520-310001

ELBOW-90,ORFS

S/SHIFT,18L #0158

1шт.

103

X520-310001

ELBOW-90,ORFS

S/SHIFT,18L #0159 - #0186

2шт.

103

X520-310001

ELBOW-90,ORFS

S/SHIFT,18L #0187

1шт.

103

X520-310001

ELBOW-90,ORFS

S/SHIFT,20LA #0046

1шт.

103

X520-310001

ELBOW-90,ORFS

S/SHIFT,20LA #0047 - #0074

2шт.

103

X520-310001

ELBOW-90,ORFS

S/SHIFT,20LA #0075

1шт.

105

S611-012001

O-RING

S/SHIFT,15L #0074

2шт.

105

S611-012001

O-RING

S/SHIFT,15L #0075

1шт.

105

S611-012001

O-RING

S/SHIFT,18L #0167

2шт.

105

S611-012001

O-RING

S/SHIFT,18L #0168

1шт.

105

S611-012001

O-RING

S/SHIFT,20LA #0074

2шт.

105

S611-012001

O-RING

S/SHIFT,20LA #0075

1шт.

106

S621-011001

O-RING

S/SHIFT,15L #0074

2шт.

106

S621-011001

O-RING

S/SHIFT,15L #0075

1шт.

106

S621-011001

O-RING

S/SHIFT,18L #0167

2шт.

106

S621-011001

O-RING

S/SHIFT,18L #0168

1шт.

106

S621-011001

O-RING

S/SHIFT,20LA #0074

2шт.

106

S621-011001

O-RING

S/SHIFT,20LA #0075

1шт.

107

33FY-90600

CONNECTOR

1шт.

Выбрано товаров: 178
