Запчасти Hyundai 15/18/20G-7A PAGE 7040 CARR,BACKREST & FORK(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

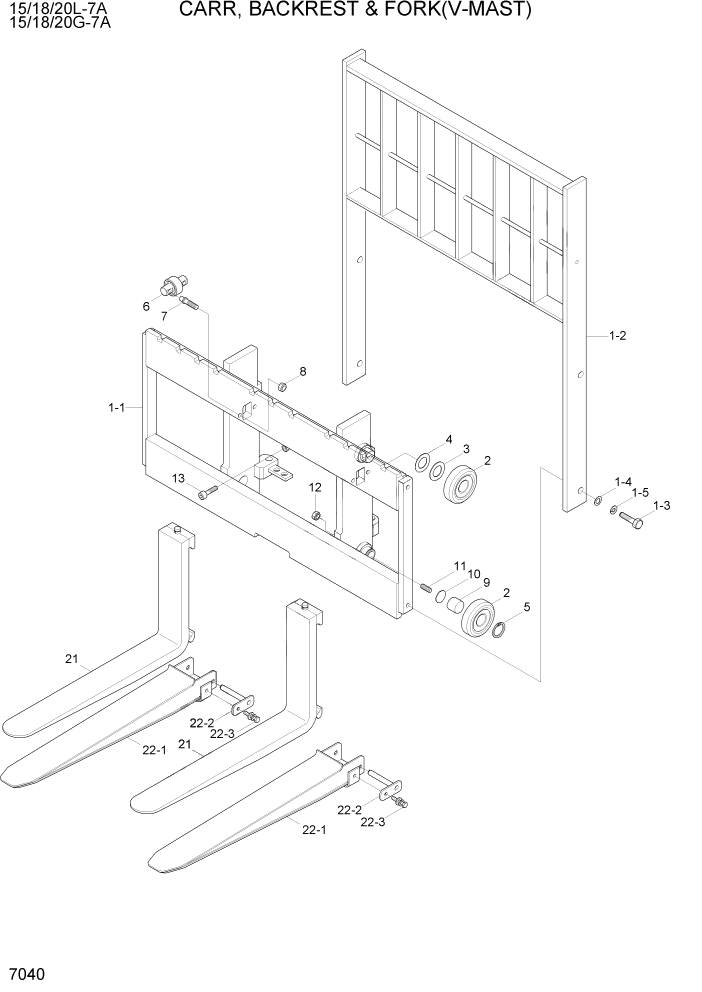

Схема запчастей Hyundai 15/18/20G-7A - PAGE 7040 CARR,BACKREST & FORK(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

Артикул

Название

Примечание

Количество

1

61HH-25010

CARR & BKR SUB ASSY

1шт.

1-1

61HH-21011

CARRIAGE WA

1.5TON

1шт.

1-2

61FJ-23430

BACKREST WA

1шт.

1-3

S017-16035D

BOLT-HEX

4шт.

1-4

S403-161006

WASHER-PLAIN

4шт.

1-5

S411-160006

WASHER-SPRING

4шт.

2

61FY-18100

L/ROLLER BEARING(99)

STD

4шт.

2

61FY-18110

L/ROLLER BEARING(98.7)

UNDER SIZE

4шт.

2

61FY-18120

L/ROLLER BEARING(99.3)

OVER SIZE

4шт.

3

5261101800

SHIM(0.5T)

2шт.

4

5261101900

SHIM(1.0T)

2шт.

5

S601-035004

RING-RETAINING

2шт.

6

6600207000

BEARING-SIDE ROLLER

2шт.

7

5261135800

BOLT-ADJUST

4шт.

8

S205-161006

NUT-HEX

4шт.

9

61FY-27050

BUSHING

2шт.

10

61FY-27060

BACK PLATE

2шт.

11

S111-120306

SCREW-SET HEX SOCKET

2шт.

12

S205-121006

NUT-HEX

2шт.

13

S109-120306

BOLT-SOCKET

1шт.

21

64FP-12010

FORK ASSY(750)

1.5/1.8TON,INI

2шт.

21

64FP-12020

FORK ASSY(850)

1.5/1.8TON,INI

2шт.

21

64FP-12030

FORK ASSY(900)

1.5/1.8TON,INI

2шт.

21

64FP-12040

FORK ASSY(1050)

1.5/1.8TON,INI

2шт.

21

64FP-12050

FORK ASSY(1200)

1.5/1.8TON,INI

2шт.

21

64FP-12060

FORK ASSY(1350)

1.5/1.8TON,INI

2шт.

21

64FP-12070

FORK ASSY(1500)

1.5/1.8TON,INI

2шт.

21

64FP-12010G

FORK ASSY(750)

1.5TON,CHINA

2шт.

21

64FP-12010G

FORK ASSY(750)

1.8TON,CHINA

2шт.

21

64FP-12020G

FORK ASSY(850)

1.5TON,CHINA

2шт.

21

64FP-12020G

FORK ASSY(850)

1.8TON,CHINA

2шт.

21

64FP-12030G

FORK ASSY(900)

1.5TON,CHINA

2шт.

21

64FP-12030G

FORK ASSY(900)

1.8TON,CHINA

2шт.

21

64FP-12040G

FORK ASSY(1050)

1.5TON,CHINA

2шт.

21

64FP-12040G

FORK ASSY(1050)

1.8TON,CHINA

2шт.

21

64FP-12050G

FORK ASSY(1200)

1.5TON,CHINA

2шт.

21

64FP-12050G

FORK ASSY(1200)

1.8TON,CHINA

2шт.

21

64FP-12060G

FORK ASSY(1350)

1.5TON,CHINA

2шт.

21

64FP-12060G

FORK ASSY(1350)

1.8TON,CHINA

2шт.

21

64FP-12070G

FORK ASSY(1500)

1.5TON,CHINA

2шт.

21

64FP-12070G

FORK ASSY(1500)

1.8TON,CHINA

2шт.

21

64FY-12010

FORK ASSY(750)

1.5TON,CASCADE

2шт.

21

64FY-12010

FORK ASSY(750)

1.8TON,CASCADE

2шт.

21

64FY-12020

FORK ASSY(850)

1.5TON,CASCADE

2шт.

21

64FY-12020

FORK ASSY(850)

1.8TON,CASCADE

2шт.

21

64FY-12030

FORK ASSY(900)

1.5TON,CASCADE

2шт.

21

64FY-12030

FORK ASSY(900)

1.8TON,CASCADE

2шт.

21

64FY-12040

FORK ASSY(1050)

1.5TON,CASCADE

2шт.

21

64FY-12040

FORK ASSY(1050)

1.8TON,CASCADE

2шт.

21

64FY-12050

FORK ASSY(1200)

1.5TON,CASCADE

2шт.

21

64FY-12050

FORK ASSY(1200)

1.8TON,CASCADE

2шт.

21

64FY-12060

FORK ASSY(1350)

1.5TON,CASCADE

2шт.

21

64FY-12060

FORK ASSY(1350)

1.8TON,CASCADE

2шт.

21

64FY-12070

FORK ASSY(1500)

1.5TON,CASCADE

2шт.

21

64FY-12070

FORK ASSY(1500)

1.8TON,CASCADE

2шт.

21

64FD-11010

FORK ASSY(900)

2.0TON,INI

2шт.

21

64FD-11020

FORK ASSY(950)

2.0TON,INI

2шт.

21

64FD-11030

FORK ASSY(1000)

2.0TON,INI

2шт.

21

64FD-11040

FORK ASSY(1050)

2.0TON,INI

2шт.

21

64FD-11050

FORK ASSY(1150)

2.0TON,INI

2шт.

21

64FD-11060

FORK ASSY(1200)

2.0TON,INI

2шт.

21

64FD-11070

FORK ASSY(1350)

2.0TON,INI

2шт.

21

64FD-11080

FORK ASSY(1500)

2.0TON,INI

2шт.

21

64FD-11090

FORK ASSY(1600)

2.0TON,INI

2шт.

21

64FD-11010G

FORK ASSY(900)

2.0TON,CHINA

2шт.

21

64FD-11020G

FORK ASSY(950)

2.0TON,CHINA

2шт.

21

64FD-11030G

FORK ASSY(1000)

2.0TON,CHINA

2шт.

21

64FD-11040G

FORK ASSY(1050)

2.0TON,CHINA

2шт.

21

64FD-11050G

FORK ASSY(1150)

2.0TON,CHINA

2шт.

21

64FD-11060G

FORK ASSY(1200)

2.0TON,CHINA

2шт.

21

64FD-11070G

FORK ASSY(1350)

2.0TON,CHINA

2шт.

21

64FD-11080G

FORK ASSY(1500)

2.0TON,CHINA

2шт.

21

64FD-11090G

FORK ASSY(1600)

2.0TON,CHINA

2шт.

21

64HM-11010

FORK ASSY(900)

2.0TON,CASCADE

2шт.

21

64HM-11020

FORK ASSY(950)

2.0TON,CASCADE

2шт.

21

64HM-11030

FORK ASSY(1000)

2.0TON,CASCADE

2шт.

21

64HM-11040

FORK ASSY(1050)

2.0TON,CASCADE

2шт.

21

64HM-11050

FORK ASSY(1150)

2.0TON,CASCADE

2шт.

21

64HM-11060

FORK ASSY(1200)

2.0TON,CASCADE

2шт.

21

64HM-11070

FORK ASSY(1350)

2.0TON,CASCADE

2шт.

21

64HM-11080

FORK ASSY(1500)

2.0TON,CASCADE

2шт.

21

64HM-11090

FORK ASSY(1600)

2.0TON,CASCADE

2шт.

22

69FJ-81010

EXT FORK ASSY(1300L)

1.5/1.8TON

2шт.

22

69FJ-81020

EXT FORK ASSY(1500L)

1.5/1.8TON

2шт.

22

69FJ-81030

EXT FORK ASSY(1700L)

1.5/1.8TON

2шт.

22

69FD-81010

EXT FORK ASSY(1300L)

2.0TON

2шт.

22

69FD-81020

EXT FORK ASSY(1500L)

2.0TON

2шт.

22

69FD-81030

EXT FORK ASSY(1700L)

2.0TON

2шт.

22-1

69FJ-81100

EXT FORK (1300L)

1.5/1.8TON

1шт.

22-1

69FJ-81200

EXT FORK (1500L)

1.5/1.8TON

1шт.

22-1

69FJ-81300

EXT FORK (1700L)

1.5/1.8TON

1шт.

22-1

69FD-81100

EXT FORK (1300L)

2.0TON

1шт.

22-1

69FD-81200

EXT FORK (1500L)

2.0TON

1шт.

22-1

69FD-81300

EXT FORK (1700L)

2.0TON

1шт.

22-2

69FJ-81500

LOCKING PIN

1шт.

22-3

S037-102026

BOLT-W/WASHER

1шт.

Выбрано товаров: 96
