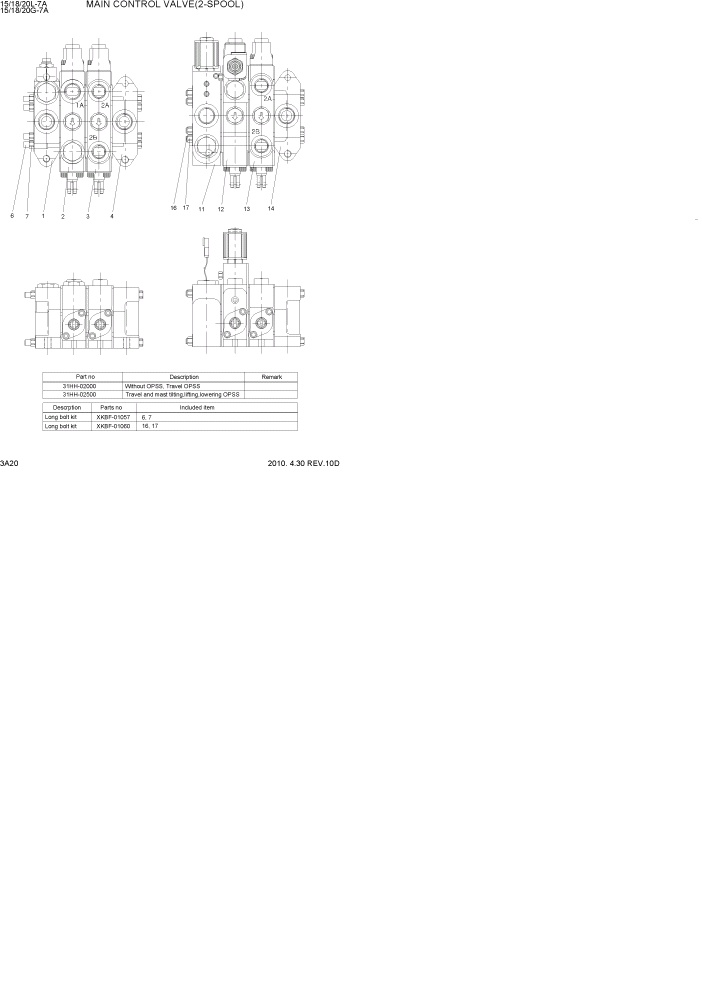

Запчасти Hyundai 15/18/20G-7A PAGE 3A20 MAIN CONTROL VALVE(2-SPOOL) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

31HH-02000

MCV-2SP(NO/TR OPSS)

SEE ILLUST

1шт.

1

XKBF-01115

INLET BLOCK ASSY

SEE 3A50

1шт.

2

XKBF-01116

LIFT BLOCK ASSY

SEE 3A70

1шт.

3

XKBF-01051

TILT BLOCK ASSY

SEE 3A80

1шт.

4

XKBF-01052

BLOCK ASSY-OUTLET

SEE 3A60

1шт.

K6

XKBF-01053

LONG BOLT

4шт.

K7

XKBF-00566

NUT

4шт.

K

XKBF-01058

LONG BOLT KIT

SEE ILLUST

1шт.

*

31HH-02500

MCV-2SP(TR-MA OPSS)

SEE ILLUST

1шт.

11

XKBF-01049

INLET BLOCK ASSY

SEE 3A50

1шт.

12

XKBF-01050

LIFT BLOCK ASSY

SEE 3A70

1шт.

13

XKBF-01051

TILT BLOCK ASSY

SEE 3A80

1шт.

14

XKBF-01052

BLOCK ASSY-OUTLET

SEE 3A60

1шт.

K16

XKBF-01056

LONG BOLT

4шт.

K17

XKBF-00566

NUT

4шт.

K

XKBF-01058

LONG BOLT KIT

SEE ILLUST

1шт.
