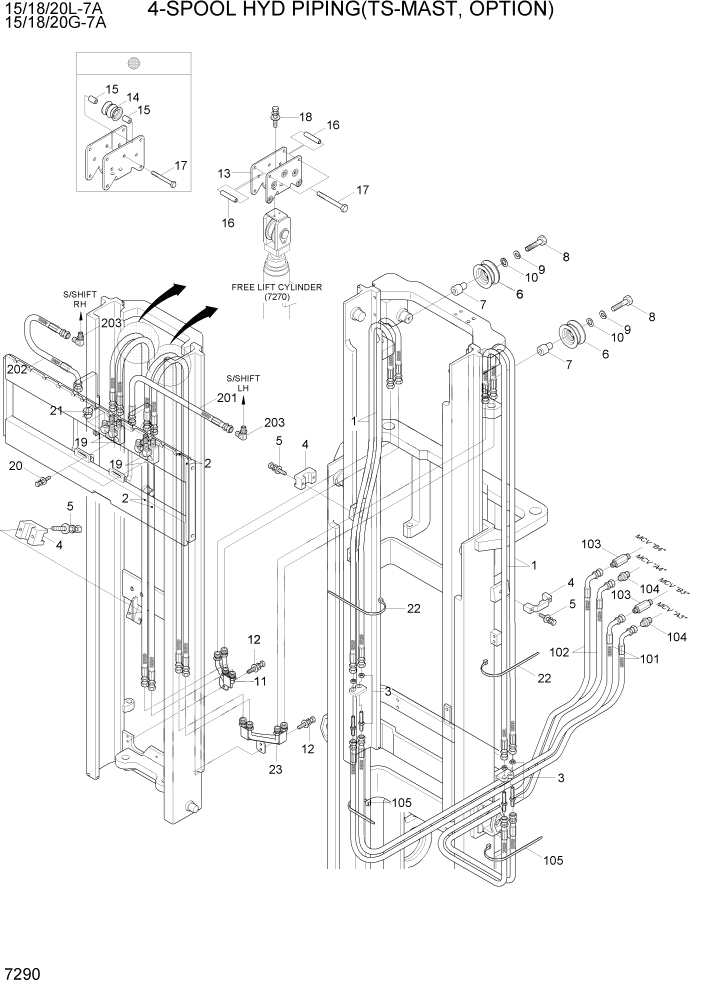

Запчасти Hyundai 15/18/20G-7A PAGE 7290 4-SPOOL HYDRAULIC PIPING(TS-MAST,OPTION) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P910-044038

HOSE ASSY-ORFS 0X0

TS370

4шт.

1

P910-044042

HOSE ASSY-ORFS 0X0

TS400

4шт.

1

P910-044046

HOSE ASSY-ORFS 0X0

TS430

4шт.

1

P910-044050

HOSE ASSY-ORFS 0X0

TS450

4шт.

1

P910-044052

HOSE ASSY-ORFS 0X0

TS470

4шт.

1

P910-044056

HOSE ASSY-ORFS 0X0

TS500

4шт.

1

P910-044064

HOSE ASSY-ORFS 0X0

TS550

4шт.

1

P910-044072

HOSE ASSY-ORFS 0X0

TS600

4шт.

1

P910-044080

HOSE ASSY-ORFS 0X0

TS650

4шт.

1

P910-044088

HOSE ASSY-ORFS 0X0

TS700

4шт.

2

P910-044039

HOSE ASSY-ORFS 0X0

TS370

4шт.

2

P910-044041

HOSE ASSY-ORFS 0X0

TS400

4шт.

2

P910-044043

HOSE ASSY-ORFS 0X0

TS430

4шт.

2

P910-044044

HOSE ASSY-ORFS 0X0

TS450

4шт.

2

P910-044046

HOSE ASSY-ORFS 0X0

TS470

4шт.

2

P910-044048

HOSE ASSY-ORFS 0X0

TS500

4шт.

2

P910-044051

HOSE ASSY-ORFS 0X0

TS550

4шт.

2

P910-044055

HOSE ASSY-ORFS 0X0

TS600

4шт.

2

P910-044059

HOSE ASSY-ORFS 0X0

TS650

4шт.

2

P910-044063

HOSE ASSY-ORFS 0X0

TS700

4шт.

3

X540-120001

CONNECTOR-ORFS

4шт.

4

33FP-90200

CLAMP

4шт.

5

S035-063526

BOLT-W/WASHER

8шт.

6

31HH-80300

PULLEY-HOSE

2шт.

7

31FV-90150

PIN-HOSE PULLEY

2шт.

8

S017-120456

BOLT-HEX

2шт.

9

S411-120006

WASHER-SPRING

2шт.

10

S441-12000B

WASHER-HARDENED

2шт.

11

34HH-90110

PIPE WA

1шт.

12

S035-082026

BOLT-W/WASHER

4шт.

13

34FY-90120

PLATE

2шт.

14

34FY-90110

ROLLER-HOSE

10шт.

15

S731-007010

BUSHING-DU

20шт.

16

34FY-90130

SPACER

4шт.

17

S035-066526

BOLT-W/WASHER

14шт.

18

S035-081526

BOLT-W/WASHER

4шт.

19

31HG-90130

ELBOW-90

4шт.

20

S037-102526

BOLT-W/WASHER

4шт.

21

X710-100102

CAP-HYD,ORFS

4шт.

22

S552-102370

CLAMP-BAND

4шт.

23

34HH-91010

PIPE WA

1шт.

101

P933-044027

HOSE ASSY-ORFS 0X90

2шт.

102

P933-044031

HOSE ASSY-ORFS 0X90

2шт.

103

31HG-90140

CONNECTOR

2шт.

104

31HG-90120

CONNECTOR

2шт.

105

S552-102370

CLAMP-BAND

6шт.

201

P910-044006

HOSE ASSY-ORFS 0X0

1шт.

202

P930-044006

HOSE ASSY-ORFS 0X90

1шт.

203

X520-310001

ELBOW-90,ORFS

2шт.
