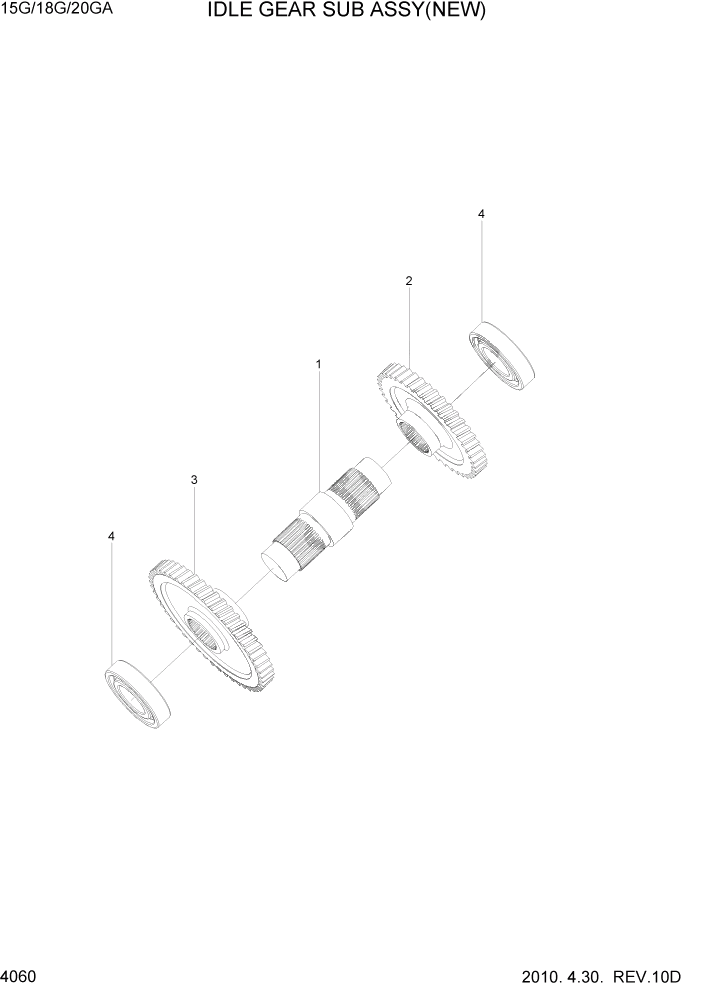

Запчасти Hyundai 15G/18G/20GA-7 PAGE 4060 IDLE GEAR SUB ASSY(NEW) СИЛОВАЯ СИСТЕМА

*

@

TRANSMISSION ASSY

NOT

1шт.

*

@

TRANSMISSION ASSY

NOT

1шт.

1

XKCF-00470

IDLE GEAR-SHAFT

1шт.

2

XKCF-00471

IDLE GEAR-UPPER

1шт.

3

XKCF-00472

IDLE GEAR-LOW

1шт.

4

XKCF-00466

BEARING-BALL

2шт.

6

XKCF-00061

PLATE

5шт.

7

XKCF-00062

SPACER

1шт.

8

XKCF-00087

RING-SEAL

2шт.

10

XKCF-00089

O-RING

1шт.

11

XKCF-00064

RING-SNAP

1шт.

12

XKCF-00065

BEARING-NEEDLE

2шт.

13

XKCF-00066

THRUST-NEEDLE BEARING

1шт.

14

XKCF-00067

THRUST WASHER

1шт.

15

XKCF-00379

SPRING-C/L

1шт.

16

XKCF-00069

SNAP RING-SPRING C/L

1шт.

17

XKCF-00070

SEAL RING-SMALL

1шт.

18

XKCF-00071

COVER-SPRING C/L

1шт.

19

XKCF-00090

BEARING-TAPER ROLLER

1шт.

20

XKCF-00072

BEARING-TAPER ROLLER

1шт.

22

XKCF-00612

RING-SNAP

#0001

1шт.

23

XKCF-00078

WASHER-THRUST

1шт.

24

XKCF-00079

O-RING

1шт.

26

XKCF-00083

PLATE-SIDE

1шт.

27

XKCF-00351

WASHER-THRUST

1шт.

28

XKCF-00373

DRUM SUB ASSY-REVERSE

1шт.
