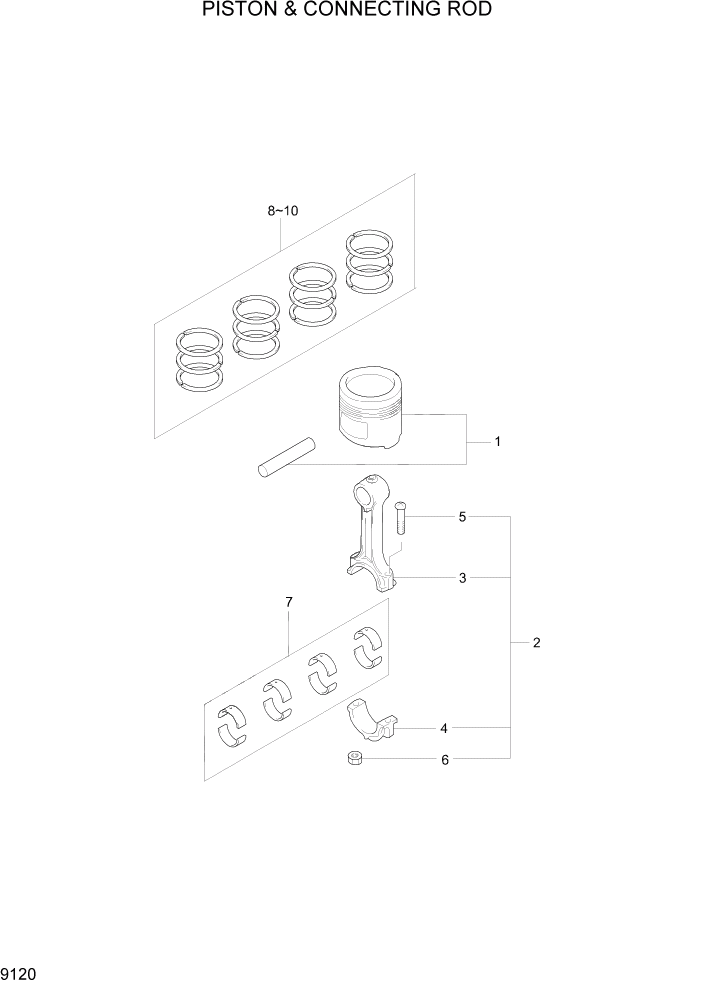

Запчасти Hyundai 15G/18G/20GA-7 PAGE 9120 PISTON & CONNECTING ROD ДВИГАТЕЛЬ БАЗА

1

23410-23802

PISTON WITH PIN

STD A

4шт.

1

23410-23812

PISTON WITH PIN

STD B

4шт.

1

23410-23822

PISTON WITH PIN

STD B

4шт.

2

23510-237

ROD ASSY-CONNECTING

4шт.

2

23510-2371

ROD ASSY-CONNECTING

4шт.

3

23511-237

ROD-CONNECTING

4шт.

3

23511-2371

ROD-CONNECTING

4шт.

4

23512-235

CAP-CONNECTING ROD

4шт.

4

23512-2351

CAP-CONNECTING ROD

4шт.

5

23513-3201

BOLT-CONNECTING ROD

8шт.

6

23514-32004

NUT-C/ROD

8шт.

7

23611-236

BEARING

STD AA

8шт.

7

23611-2361

BEARING

STD A

8шт.

7

23611-2362

BEARING

STD B

8шт.

7

23611-2363

BEARING

STD C

8шт.

7

23611-2364

BEARING

STD D

8шт.

N8

23431-2305

RING-PISTON STD(NO.1)

NOT

4шт.

N9

23432-2325

RING-PISTON STD(NO.2)

NOT

4шт.

N10

23433-2305

RING ASSY-OIL STD

NOT

4шт.
