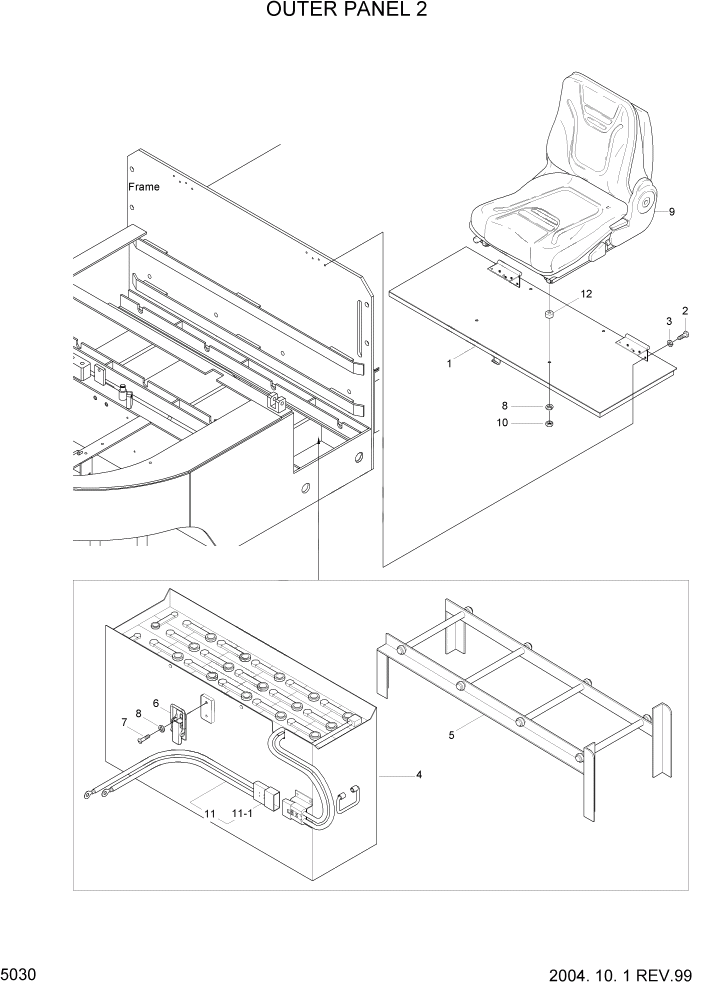

Запчасти Hyundai HBP15 PAGE 5030 OUTER PANEL 2 РАМА & КОРПУС

1

B41110011

COVER-BATTERY

HBP15 #2000

1шт.

1

B41110011H

COVER WA-BATTERY

HBP15 #2001 - #2122

1шт.

1

B41110012

COVER WA-BATTERY

HBP15 #2123

1шт.

1

B41110011

COVER-BATTERY

HBT40 #3046

1шт.

1

B41110011H

COVER WA-BATTERY

HBT40 #3047 - #3338

1шт.

1

B41110012

COVER WA-BATTERY

HBT40 #3339

1шт.

2

201506010

BOLT-HEX

8шт.

3

233306000

WASHER-SPRING

8шт.

4

B41820310

BATTERY

HBP15 #3001

1шт.

4

B41820310H

BATTERY(201-WET)

HBP15 #3002

1шт.

4

B41820310

BATTERY

HBT40 #3046

1шт.

4

B41820310H

BATTERY(201-WET)

HBT40 #3047

1шт.

4

310001011

BATTERY

HBP15,OPT #3001

1шт.

4

310001011H

BATTERY(201-DRY)

HBP15,OPT #3002

1шт.

4

310001011

BATTERY

HBT40,OPT #3046

1шт.

4

310001011H

BATTERY(201-DRY)

HBT40,OPT #3047

1шт.

4

310001060-A

BATTERY

HBP15,OPT #3001

1шт.

4

310001060H-A

BATTERY(268-WET)

HBP15,OPT #3002

1шт.

4

310001060-A

BATTERY

HBT40,OPT #3046

1шт.

4

310001060H-A

BATTERY(268-WET)

HBT40,OPT #3047

1шт.

5

6600166000-02

BATTERY STAND ASSY

1шт.

6

B41110040

CLIP ASSY

1шт.

7

20C108012

SCREW-ROUND HEAD

2шт.

8

233308000

WASHER-SPRING

6шт.

9

FCC0710500

SEAT ASSY

HBP15 #3015

1шт.

9

F12120300

SEAT ASSY(PKT)

HBP15 #3016

1шт.

10

221108000

NUT-HEX

4шт.

11

310021290

CONNECTOR ASSY

1шт.

11-1

B52820030

CONNECTOR-BATT

EXPORT #0001

1шт.

11-1

B71800060

CONNECTOR-BATT

KOREA #0001

1шт.

12

71FD-10120

SPACER

HBP15 #2053

4шт.

12

71FD-10120

SPACER

HBT40 #2070

4шт.
