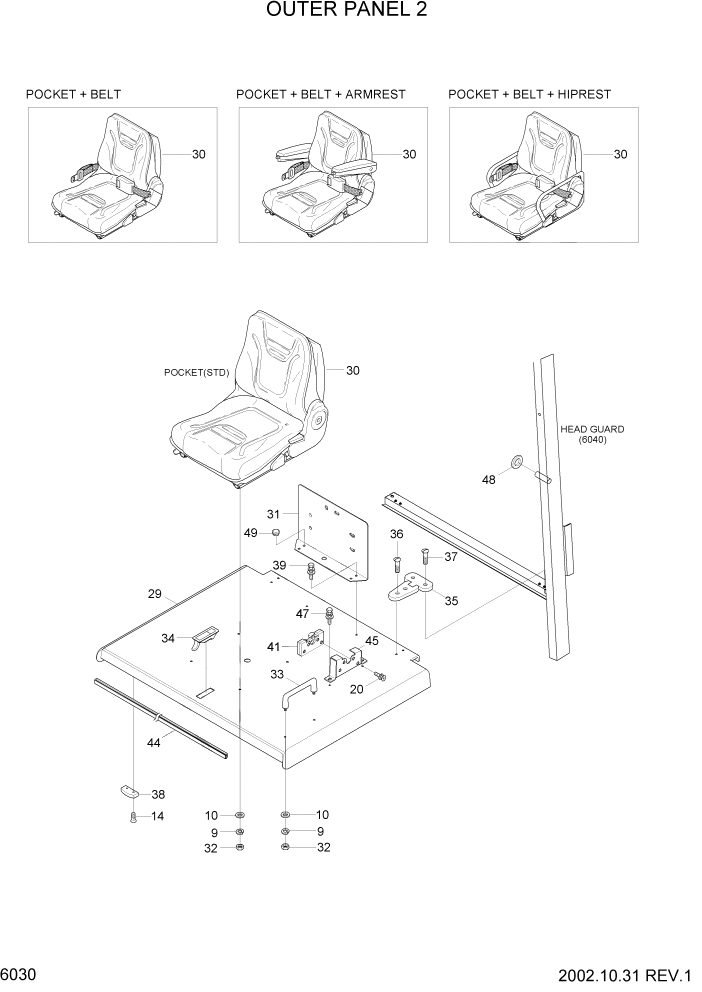

Запчасти Hyundai HBF15/HBF18-3 PAGE 6030 OUTER PANEL 2 СТРУКТУРА

9

S411-080002

WASHER-SPRING

6шт.

10

S403-082002

WASHER-PLAIN

6шт.

14

S131-051046

SCREW-W/WASHER C/RD

8шт.

20

S132-061656

SCREW-W/WASHER

4шт.

29

B71110072

COVER-BATTERY

1шт.

30

F12120300

SEAT ASSY

STD

1шт.

30

F12120400

SEAT ASSY(PKT+BT)

OPT

1шт.

30

F12120200

SEAT ASSY(PKT+BT+AR)

OPT

1шт.

30

F12120600

SEAT ASSY(PKT+BT+HR)

OPT

1шт.

31

Q101207000H-03

BRACKET-NUMBER PLATE

1шт.

32

S205-081002

NUT-HEX

6шт.

33

6334068200

HANDLE

1шт.

34

B52110200

LATCH

1шт.

35

ED13020000

HINGE ASSY

2шт.

36

S141-060302

SCREW-C/R,FLAT HD

HBF15-3 #0034

6шт.

36

S141-060302

SCREW-C/R,FLAT HD

HBF15-3 #0035

2шт.

36

S141-060302

SCREW-C/R,FLAT HD

HBF18-3 #0003

6шт.

36

S141-060302

SCREW-C/R,FLAT HD

HBF18-3 #0004

2шт.

37

S141-060452

SCREW-C/R,FLAT HD

HBF15-3 #0034

2шт.

37

S141-060252

SCREW-C/R,FLAT HD

HBF15-3 #0035

6шт.

37

S141-060452

SCREW-C/R,FLAT HD

HBF18-3 #0003

2шт.

37

S141-060252

SCREW-C/R,FLAT HD

HBF18-3 #0004

6шт.

38

3EB5011140-01

CUSHION

4шт.

39

S035-082522

BOLT-W/WASHER

2шт.

41

F14103810

LATCH ASSY

1шт.

44

B71110160

SEAL

HBF15-3 #0034

1шт.

44

B71110161

SEAL

HBF15-3 #0035

1шт.

44

B71110160

SEAL

HBF18-3 #0003

1шт.

44

B71110161

SEAL

HBF18-3 #0004

1шт.

45

B71110180

COVER-LATCH

1шт.

47

S035-082022

BOLT-W/WASHER

2шт.

48

S403-101002

WASHER-PLAIN

1шт.

49

FAC0800110

CLIP

3шт.
