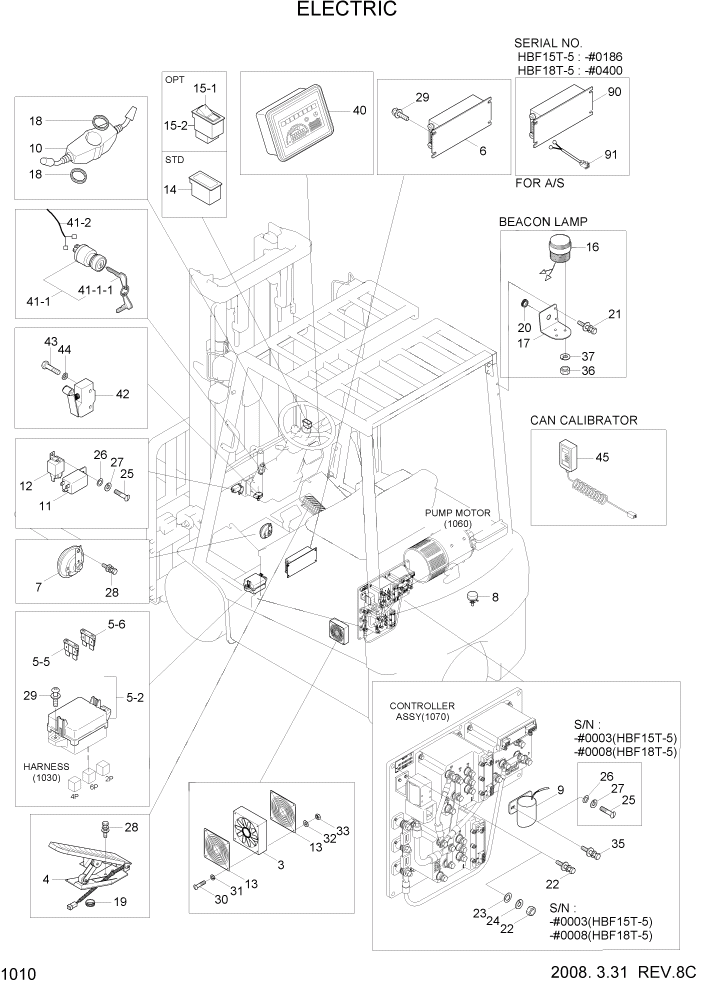

Запчасти Hyundai HBF15/HBF18T-5 PAGE 1010 ELECTRIC ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

3

B52860031

FAN

1шт.

4

21FH-78470

ACCELERATOR ASSY

1шт.

5

21FH-72050

FUSE BOX ASSY

1шт.

5-2

21FH-72160

COVER & DECAL

1шт.

5-5

S841-101500

FUSE

2шт.

5-6

S841-101000

FUSE

10шт.

N6

21FH-52010

DC-DC CONVERTER

NOT #0186

1шт.

6

21FH-72260

DC-DC CONVERTER

HBF15T-5 #0187

1шт.

N6

21FH-52010

DC-DC CONVERTER

NOT #0400

1шт.

6

21FH-72260

DC-DC CONVERTER

HBF18T-5 #0401

1шт.

N6

21FH-52020

DC-DC CONVERTER

NOT #0186

1шт.

N6

21FH-52020

DC-DC CONVERTER

NOT #0400

1шт.

N6-1

266025020

FUSE-20A

NOT

2шт.

7

21M8-00070

HORN-HIGH

1шт.

8

B51830030

STEERING SENSOR

SEE 5010

1шт.

9

21FD-30310

BUZZER-BACK

HBF15T-5 #0142

1шт.

9

21FD-30311

BACK BUZZER(12V)

HBF15T-5 #0143

1шт.

9

21FD-30310

BUZZER-BACK

HBF18T-5 #0347

1шт.

9

21FD-30311

BACK BUZZER(12V)

HBF18T-5 #0348

1шт.

10

B51830010

SWITCH-COMBI

1шт.

11

21M6-40051

FLASHER UNIT ASSY

HBF15T-5 #0023

1шт.

11

21M6-40052

FLASHER UNIT ASSY

HBF15T-5 #0024

1шт.

11

21M6-40051

FLASHER UNIT ASSY

HBF18T-5 #0041

1шт.

11

21M6-40052

FLASHER UNIT ASSY

HBF18T-5 #0042

1шт.

12

21E3-0011

RELAY

1шт.

13

B52110320

GUARD- FAN

2шт.

14

21E6-10460

COVER

STD

1шт.

15

21M6-00400

SWITCH-BEACON

BEACON LAMP

1шт.

15-1

21S1-31510

SWITCH

BEACON LAMP

1шт.

15-2

21E6-10540

INSERT-BEACON

BEACON LAMP

1шт.

16

F23842010

STROBE LAMP-RED

RED

1шт.

16

21FG-10810

STROBE LAMP-AMBER

AMBER,HBF15T-5 #0089

1шт.

16

21FG-10810

STROBE LAMP-AMBER

AMBER,HBF18T-5 #0235

1шт.

16

21FG-10820

STROBE LAMP-BLUE

BLUE,HBF15T-5 #0089

1шт.

16

21FG-10820

STROBE LAMP-BLUE

BLUE,HBF18T-5 #0235

1шт.

16-1

21FG-10850

GLOBE-RED

RED,NOT SHOWN

1шт.

16-1

21FG-10860

GLOBE-AMBER

AMBER,NOT SHOWN

1шт.

16-1

21FG-10870

GLOBE-BLUE

BLUE,NOT SHOWN

1шт.

17

21FH-72010

BRACKET-BEACON

B/L, HBF15T-5 #0003

1шт.

17

21FH-72011

BRACKET-BEACON

B/L, HBF15T-5 #0004

1шт.

17

21FH-72010

BRACKET-BEACON

B/L, HBF18T-5 #0008

1шт.

17

21FH-72011

BRACKET-BEACON

B/L, HBF18T-5 #0009

1шт.

18

F12140020

GROMMET

2шт.

19

S681-290400

GROMMET

1шт.

20

S681-130800

GROMMET

BEACON LAMP

1шт.

21

S035-082026

BOLT-W/WASHER

BEACON LAMP

2шт.

22

S205-081006

NUT-HEX

HBF15T-5 #0003

8шт.

22

S035-082526

BOLT-W/WASHER

HBF15T-5 #0004

8шт.

22

S205-081006

NUT-HEX

HBF18T-5 #0008

8шт.

22

S035-082526

BOLT-W/WASHER

HBF18T-5 #0009

8шт.

23

S403-081006

WASHER-PLAIN

HBF15T-5 #0003

8шт.

23

S403-081006

WASHER-PLAIN

HBF18T-5 #0008

8шт.

24

S411-080006

WASHER-SPRING

HBF15T-5 #0003

8шт.

24

S411-080006

WASHER-SPRING

HBF18T-5 #0008

8шт.

25

S161-060106

SCREW-CROSS R/ROUND

HBF15T-5 #0003

3шт.

25

S161-060106

SCREW-CROSS R/ROUND

HBF15T-5 #0004

1шт.

25

S161-060106

SCREW-CROSS R/ROUND

HBF18T-5 #0008

3шт.

25

S161-060106

SCREW-CROSS R/ROUND

HBF18T-5 #0009

1шт.

26

S403-061006

WASHER-PLAIN

HBF15T-5 #0003

3шт.

26

S403-061006

WASHER-PLAIN

HBF15T-5 #0004

1шт.

26

S403-061006

WASHER-PLAIN

HBF18T-5 #0008

3шт.

26

S403-061006

WASHER-PLAIN

HBF18T-5 #0009

1шт.

27

S411-060006

WASHER-SPRING

HBF15T-5 #0003

3шт.

27

S411-060006

WASHER-SPRING

HBF15T-5 #0004

1шт.

27

S411-060006

WASHER-SPRING

HBF18T-5 #0008

3шт.

27

S411-060006

WASHER-SPRING

HBF18T-5 #0009

1шт.

28

S035-082026

BOLT-W/WASHER

3шт.

29

S132-061546

SCREW-W/WASHER

6шт.

30

S161-040456

SCREW-CROSS R/ROUND

4шт.

31

S411-040006

WASHER-SPRING

4шт.

32

S403-041006

WASHER-PLAIN

4шт.

33

S203-041006

NUT-HEX

4шт.

35

S035-081526

BOLT-W/WASHER

HBF15T-5 #0004

2шт.

35

S035-081526

BOLT-W/WASHER

HBF18T-5 #0009

2шт.

36

S203-041006

NUT-HEX

B/L, HBF15T-5 #0004

3шт.

36

S203-041006

NUT-HEX

B/L, HBF18T-5 #0009

3шт.

37

S411-040006

WASHER-SPRING

B/L, HBF15T-5 #0004

3шт.

37

S411-040006

WASHER-SPRING

HBF18T-5 #0009

3шт.

40

B51870010

PANEL-MONITOR

1шт.

41

21FH-82060

SWITCH ASSY-KEY

1шт.

41-1

21FH-52050

SWITCH-KEY

1шт.

41-1-1

21FH-52080

KEY

2шт.

41-2

21FH-85030

HARNESS-KEY SWITCH

1шт.

42

21FH-72030

SWITCH ASSY-PARKING

1шт.

43

S015-040256

BOLT-HEX

2шт.

44

S403-041006

WASHER-PLAIN

2шт.

45

B71860070

CAN-CALIBRATOR ASSY

OPTION

1шт.

90

21FH-72260

DC-DC CONVERTER

FOR A/S,1.5TON #0186

1шт.

90

21FH-72260

DC-DC CONVERTER

FOR A/S,1.8TON #0400

1шт.

91

21FH-75130

HARNESS-CONVERTER

FOR A/S,1.5TON #0186

1шт.

91

21FH-75130

HARNESS-CONVERTER

FOR A/S,1.8TON #0400

1шт.
