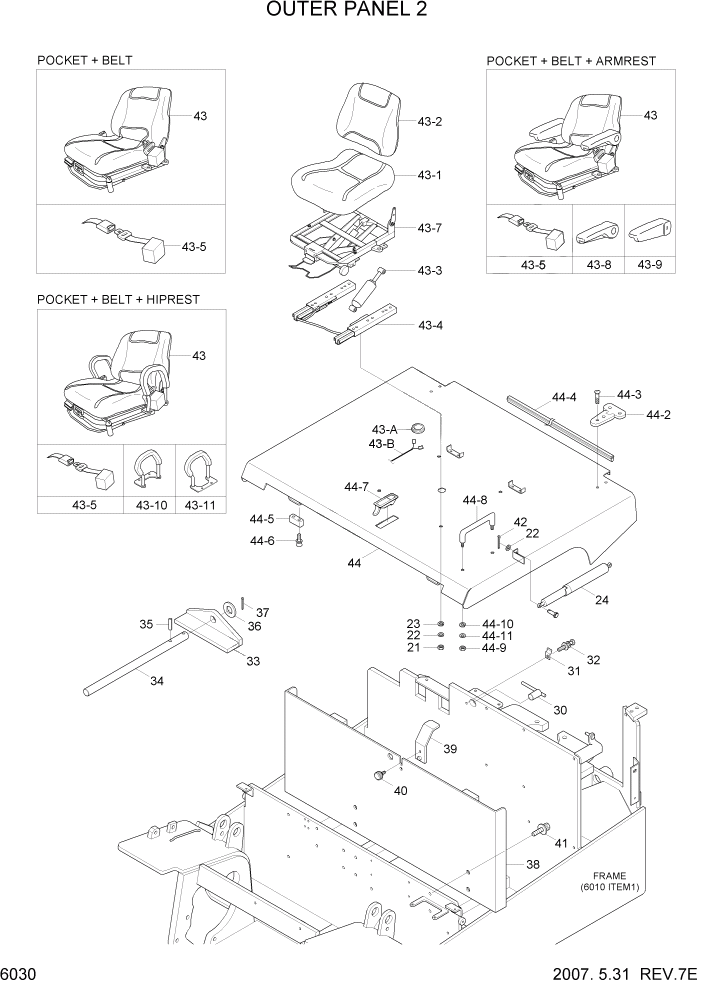

Запчасти Hyundai HBF15/HBF18T-5 PAGE 6030 OUTER PANEL 2 СТРУКТУРА

21

S203-081006

NUT-HEX

4шт.

22

S403-081006

WASHER-PLAIN

6шт.

23

S411-080006

WASHER-SPRING

4шт.

24

71FY-10060

GAS SPRING

1шт.

30

71FH-10280

STOPPER-BATTERY

1шт.

31

B51110220

CLIP

1шт.

32

S035-081526

BOLT-W/WASHER

1шт.

33

B51100710

BRACKET

FOR USA

1шт.

34

B51100720

ROD

FOR USA

1шт.

35

S471-800306

PIN-SPRING

FOR USA

1шт.

36

S441-200006

WASHER-HARDENED

FOR USA

2шт.

37

S501-200006

PIN-SELF LOCKING

FOR USA

1шт.

38

B51110251

SUPPORT WA

FOR USA

1шт.

39

B51110261

BRACKET

FOR USA

1шт.

40

FAC0700820-01

KNOB

FOR USA

1шт.

41

S037-102056

BOLT-W/WASHER

FOR USA

4шт.

42

S461-200156

PIN-SPLIT

2шт.

43

71FH-10510

SEAT ASSY(PKT)

HBF15T-5 #0160

1шт.

43

71FH-10511

SEAT ASSY(PKT)

HBF15T-5 #0161

1шт.

43

71FH-10510

SEAT ASSY(PKT)

HBF18T-5 #0378

1шт.

43

71FH-10511

SEAT ASSY(PKT)

HBF18T-5 #0379

1шт.

43

71FH-10520

SEAT ASSY(PKT+BT)

HBF15T-5 #0160

1шт.

43

71FH-10521

SEAT ASSY(PKT+BT)

HBF15T-5 #0161

1шт.

43

71FH-10520

SEAT ASSY(PKT+BT)

HBF18T-5 #0378

1шт.

43

71FH-10521

SEAT ASSY(PKT+BT)

HBF18T-5 #0379

1шт.

43

71FH-10530

SEAT ASSY(PKT+BT+HR)

HBF15T-5 #0160

1шт.

43

71FH-10531

SEAT ASSY(PKT+BT+HR)

HBF15T-5 #0161

1шт.

43

71FH-10530

SEAT ASSY(PKT+BT+HR)

HBF18T-5 #0378

1шт.

43

71FH-10531

SEAT ASSY(PKT+BT+HR)

HBF18T-5 #0379

1шт.

43

71FH-10540

SEAT ASSY(PKT+BT+AR)

HBF15T-5 #0160

1шт.

43

71FH-10541

SEAT ASSY(PKT+BT+AR)

HBF15T-5 #0161

1шт.

43

71FH-10540

SEAT ASSY(PKT+BT+AR)

HBF18T-5 #0378

1шт.

43

71FH-10541

SEAT ASSY(PKT+BT+AR)

HBF18T-5 #0379

1шт.

43-A

310006540

SWITCH-SEAT

1шт.

43-B

B51800050

HARNESS-SEAT

1шт.

43-1

H31013-100

CUSION ASSY

HBF15T-5 #0001 - #0160

1шт.

43-1

H31013-100C

CUSION ASSY

HBF15T-5 #0161

1шт.

43-1

H31013-100

CUSION ASSY

HBF18T-5 #0001 - #0378

1шт.

43-1

H31013-100C

CUSION ASSY

HBF18T-5 #0379

1шт.

43-2

H31013-200

BACK ASSY

HBF15T-5 #0001 - #0160

1шт.

43-2

H31013-200B

BACK ASSY

HBF15T-5 #0161

1шт.

43-2

H31013-200

BACK ASSY

HBF18T-5 #0001 - #0378

1шт.

43-2

H31013-200B

BACK ASSY

HBF18T-5 #0379

1шт.

43-3

H31013-360

SHOCK ABSORBER ASSY

#0001

1шт.

43-4

H31013-600

SLIDE TRACK ASSY

HBF15T-5 #0001 - #0160

1шт.

43-4

H31013-600B

SLIDE TRACK ASSY

HBF15T-5 #0161

1шт.

43-4

H31013-600

SLIDE TRACK ASSY

HBF18T-5 #0001 - #0378

1шт.

43-4

H31013-600B

SLIDE TRACK ASSY

HBF18T-5 #0379

1шт.

43-5

89890-8A610

BELT-SEAT

WITH BELT #0001

1шт.

43-7

H31023-301

SUSPENSION

HBF15T-5 #0001 - #0160

1шт.

43-7

H31023-301G

SUSPENSION

HBF15T-5 #0161

1шт.

43-7

H31023-301

SUSPENSION

HBF18T-5 #0001 - #0378

1шт.

43-7

H31023-301G

SUSPENSION

HBF18T-5 #0379

1шт.

43-8

H31010-500

ARM RESTRAINT-LH

WITH ARM-REST #0001

1шт.

43-9

H31015-500

ARM RESTRAINT-RH

WITH ARM-REST #0001

1шт.

43-1

H31010-700

HIP RESTRAINT-LH

WITH HIP-REST #0001

1шт.

43-11

H31015-700

HIP RESTRAINT-RH

WITH HIP-REST #0001

1шт.

44

71FY-10200

BATT COVER ASSY

1шт.

44-1

71FY-10020

BATTERY COVER WA

1шт.

44-2

FHC0705300H

HINGE

2шт.

44-3

S141-060206

SCREW-FLAT HD

8шт.

44-4

B51100640

WEATHER STRIP

1шт.

44-5

F12100190

CUSHION

4шт.

44-6

S131-051546

SCREW-W/WASHER

8шт.

44-7

B52110200

LATCH

1шт.

44-8

71FH-10140

HANDLE

1шт.

44-9

S205-081006

NUT-HEX

2шт.

44-1

S403-082006

WASHER-PLAIN

2шт.

44-11

S411-080006

WASHER-SPRING

2шт.
