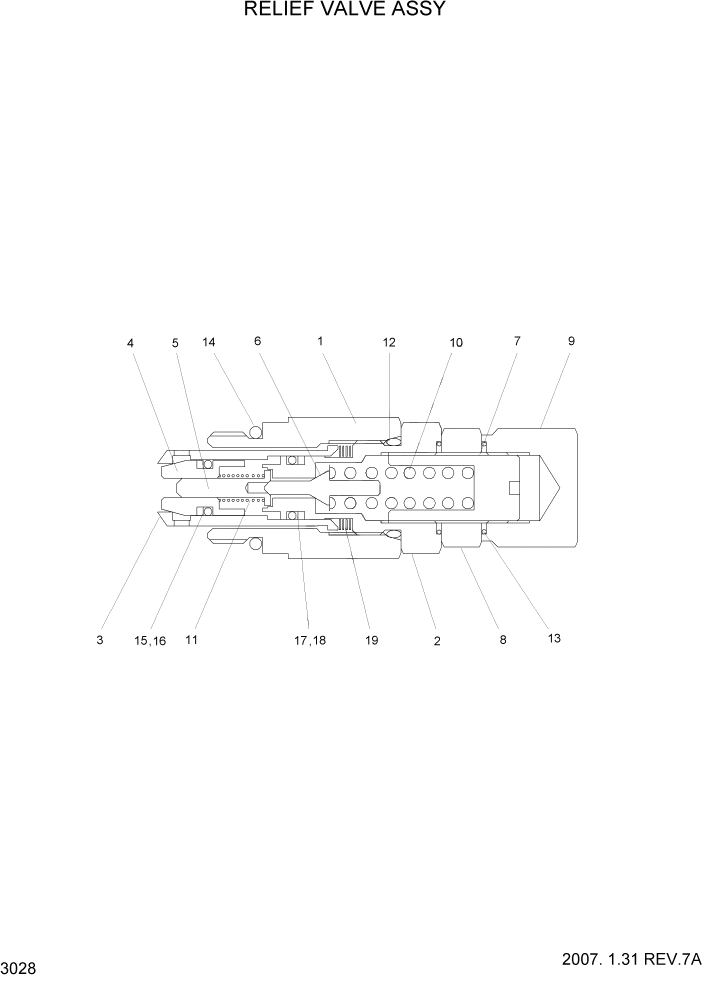

Запчасти Hyundai HBF15/HBF18T-5 PAGE 3028 RELIEF VALVE ASSY ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

XKBF-00448

RELIEF VALVE ASSY

MAIN,HBF15T-5 #0017 - #0125

1шт.

*

XKBF-00866

RELIEF VALVE ASSY

MAIN,15,SEE3029 #0126

1шт.

*

XKBF-00448

RELIEF VALVE ASSY

MAIN,HBF18T-5 #0034 - #0326

1шт.

*

XKBF-00866

RELIEF VALVE ASSY

MAIN,18,SEE3029 #0327

1шт.

*

XKBF-00302

RELIEF VALVE ASSY

AUX,HBF15T-5 #0017 - #0125

1шт.

*

XKBF-00867

RELIEF VALVE ASSY

AUX,HBF15T-5 #0126

1шт.

*

XKBF-00302

RELIEF VALVE ASSY

AUX,HBF18T-5 #0034 - #0326

1шт.

*

XKBF-00867

RELIEF VALVE ASSY

AUX,HBF18T-5 #0327

1шт.

1

XKBF-00255

HOUSING

1шт.

2

XKBF-00256

BODY

1шт.

3

XKBF-00257

SOCKET

1шт.

4

XKBF-00258

MAIN POPPET

1шт.

5

XKBF-00315

PLUNGER

1шт.

6

XKBF-00363

PILOT POPPET

1шт.

7

XKBF-00261

ADJUST SCREW

1шт.

8

XKBF-00262

NUT

1шт.

9

XKBF-00263

CAP NUT

1шт.

10

XKBF-00264

PILOT SPRING

1шт.

11

XKBF-00265

MAIN SPRING

1шт.

12

XKBF-00266

O-RING

1шт.

13

XKBF-00267

O-RING SEAL

2шт.

14

XKBF-00268

O-RING SEAL

1шт.

15

XKBF-00269

O-RING

1шт.

16

XKBF-00270

BACK UP RING

1шт.

17

XKBF-00271

O-RING SEAL

1шт.

18

XKBF-00272

BACK UP RING

1шт.

19

XKBF-00273

WAVE WASHER

1шт.

K

XKBF-00318

SPOOL SEAL KIT

SEE ILLUST

1шт.
