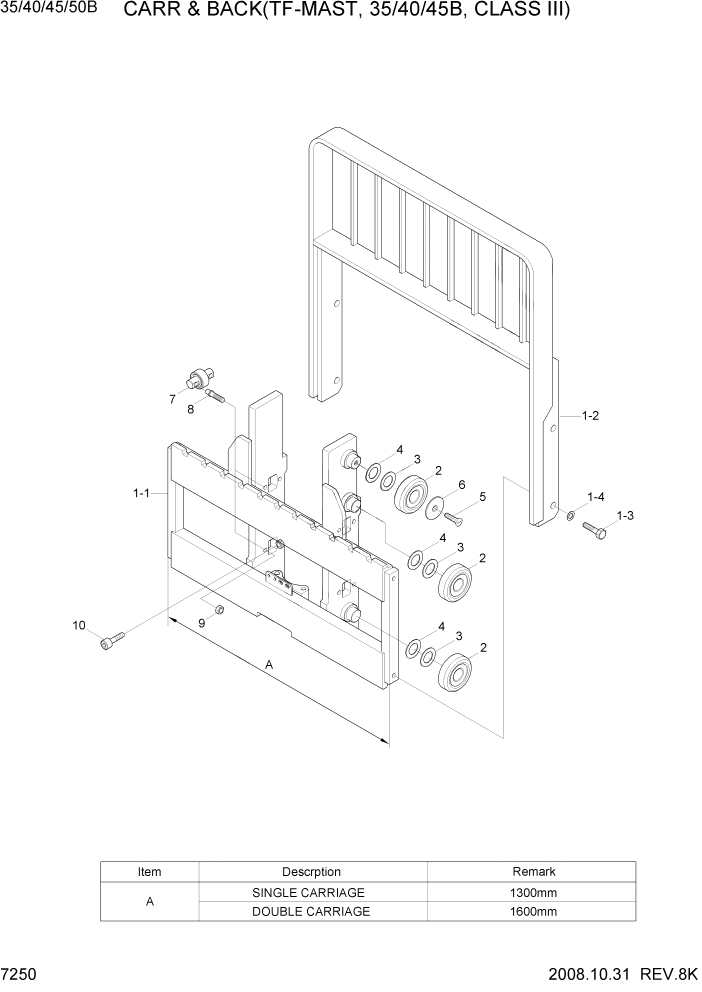

Запчасти Hyundai 35/40/45/50B PAGE 7250 CARR & BACK(TF-MAST,35/40/45B,C-III) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

63HD-27040

CARR.& BACKREST ASSY

S,35/40B

1шт.

*

63HD-27060

CARR.& BACKREST ASSY

D,35/40B

1шт.

*

63HD-37040

CARR & BACKREST ASSY

S,45B

1шт.

*

63HD-37060

CARR & BACKREST ASSY

D,45B

1шт.

1

63HD-25040

CARR.& BACK SUB ASSY

S,35/40B

1шт.

1

63HD-25060

CARR.& BACK SUB ASSY

D,35/40B

1шт.

1

63HD-35040

CARR.& BACK SUB ASSY

S,45B

1шт.

1

63HD-35060

CARR.& BACK SUB ASSY

D,45B

1шт.

1-1

63HD-21040

CARRIAGE WA(SINGLE)

S,35/40B

1шт.

1-1

63HD-21060

CARRIAGE WA(DOUBLE)

D,35/40B

1шт.

1-1

63HD-31040

CARRIAGE WA(SINGLE)

S,45B

1шт.

1-1

63HD-31060

CARRIAGE WA(DOUBLE)

D,45B

1шт.

1-2

61FV-23010

BACKREST WA

SINGLE

1шт.

1-2

61FV-23020

BACKREST WA

DOUBLE

1шт.

1-3

S017-16050D

BOLT-HEX

4шт.

1-4

S441-160006

WASHER-HARDENED

4шт.

2

6625011800-01

BEARING-L/ROLLER(127.0)

STD

6шт.

2

6625011801-01

BEARING-L/ROLLER(127.5)

OVERSIZE,35B #0007

6шт.

2

6625011802-01

BEARING-L/ROLLER(126.5)

UNDERSIZE,35B #0007

6шт.

2

6625011801-01

BEARING-L/ROLLER(127.5)

OVERSIZE,40B #0006

6шт.

2

6625011800-01

BEARING-L/ROLLER

6шт.

2

6625011802-01

BEARING-L/ROLLER(126.5)

UNDERSIZE,40B #0006

6шт.

2

6625011801-01

BEARING-L/ROLLER(127.5)

OVERSIZE,45B #0007

6шт.

2

6625011802-01

BEARING-L/ROLLER(126.5)

UNDERSIZE,45B #0007

6шт.

2

6625011801-01

BEARING-L/ROLLER(127.5)

OVERSIZE,50B #0011

6шт.

2

6625011802-01

BEARING-L/ROLLER(126.5)

UNDERSIZE,50B #0011

6шт.

3

5261101400

SHIM(0.5T)

6шт.

4

5261101500

SHIM(1.0T)

6шт.

5

61F7-28010

BOLT-FLAT HD

2шт.

6

61F7-28021

WASHER-RETAINING

2шт.

7

61FE-28100

BEARING-SIDE ROLLER

4шт.

8

61FB-28040

SCREW-ADJUST

8шт.

9

S205-161006

NUT-HEX

8шт.

10

S109-120306

BOLT-SOCKET

1шт.
