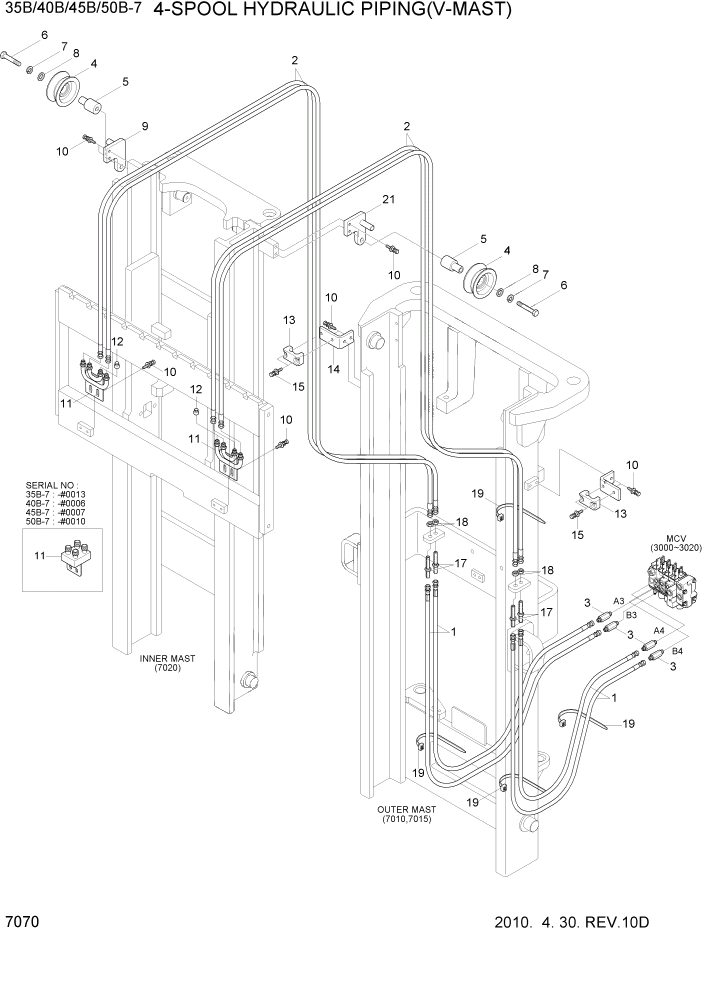

Запчасти Hyundai 35/40/45/50B PAGE 7070 4-SPOOL HYDRAULIC PIPING(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P923-064025

HOSE ASSY-ORFS 0X45

35B #0004

2шт.

1

P923-064026

HOSE ASSY-ORFS 0X45

35B #0005

2шт.

1

P923-064025

HOSE ASSY-ORFS 0X45

40B #0004

2шт.

1

P923-064026

HOSE ASSY-ORFS 0X45

40B #0005

2шт.

1

P923-064025

HOSE ASSY-ORFS 0X45

45B #0005

2шт.

1

P923-064026

HOSE ASSY-ORFS 0X45

45B #0006

2шт.

1

P923-064025

HOSE ASSY-ORFS 0X45

50B #0007

2шт.

1

P923-064026

HOSE ASSY-ORFS 0X45

50B #0008

2шт.

2

P910-064052

HOSE ASSY-ORFS 0X0

V270, 35B #0004

2шт.

2

P910-064052

HOSE ASSY-ORFS 0X0

V260,50B

4шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

V290,50B

4шт.

2

P910-064064

HOSE ASSY-ORFS 0X0

V320,50B

4шт.

2

P910-064070

HOSE ASSY-ORFS 0X0

V340,50B

4шт.

2

P910-064073

HOSE ASSY-ORFS 0X0

V360,50B

4шт.

2

P910-064082

HOSE ASSY-ORFS 0X0

V390,50B

4шт.

2

P910-064091

HOSE ASSY-ORFD 0X0

V440,50B

4шт.

2

P910-064101

HOSE ASSY-ORFS 0X0

V490,50B

4шт.

2

P910-064051

HOSE ASSY-ORFS 0X0

V270, 35B #0005

2шт.

2

P910-064052

HOSE ASSY-ORFS 0X0

V270, 40B #0004

2шт.

2

P910-064051

HOSE ASSY-ORFS 0X0

V270, 40B #0005

2шт.

2

P910-064052

HOSE ASSY-ORFS 0X0

V270, 45B #0005

2шт.

2

P910-064051

HOSE ASSY-ORFS 0X0

V270, 45B #0006

2шт.

2

P910-064052

HOSE ASSY-ORFS 0X0

V260, 50B #0007

2шт.

2

P910-064051

HOSE ASSY-ORFS 0X0

V260, 50B #0008

2шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

V300, 35B #0004

2шт.

2

P910-064057

HOSE ASSY-ORFS 0X0

V300, 35B #0005

2шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

V300, 40B #0004

2шт.

2

P910-064057

HOSE ASSY-ORFS 0X0

V300, 40B #0005

2шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

V300, 45B #0005

2шт.

2

P910-064057

HOSE ASSY-ORFS 0X0

V300, 45B #0006

2шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

V300, 50B #0007

2шт.

2

P910-064057

HOSE ASSY-ORFS 0X0

V300, 50B #0008

2шт.

2

P910-064064

HOSE ASSY-ORFS 0X0

V330, 35B #0004

2шт.

2

P910-064063

HOSE ASSY-ORFS 0X0

V330, 35B #0005

2шт.

2

P910-064064

HOSE ASSY-ORFS 0X0

V330, 40B #0004

2шт.

2

P910-064063

HOSE ASSY-ORFS 0X0

V330, 40B #0005

2шт.

2

P910-064064

HOSE ASSY-ORFS 0X0

V330, 45B #0005

2шт.

2

P910-064063

HOSE ASSY-ORFS 0X0

V330, 45B #0006

2шт.

2

P910-064064

HOSE ASSY-ORFS 0X0

V330 50B #0007

2шт.

2

P910-064063

HOSE ASSY-ORFS 0X0

V330 50B #0008

2шт.

2

P910-064070

HOSE ASSY-ORFS 0X0

V350, 35B #0004

2шт.

2

P910-064069

HOSE ASSY-ORFS 0X0

V350, 35B #0005

2шт.

2

P910-064070

HOSE ASSY-ORFS 0X0

V350, 40B #0004

2шт.

2

P910-064069

HOSE ASSY-ORFS 0X0

V350, 40B #0005

2шт.

2

P910-064070

HOSE ASSY-ORFS 0X0

V350, 45B #0005

2шт.

2

P910-064069

HOSE ASSY-ORFS 0X0

V350, 45B #0006

2шт.

2

P910-064070

HOSE ASSY-ORFS 0X0

V350, 50B #0007

2шт.

2

P910-064069

HOSE ASSY-ORFS 0X0

V350, 50B #0008

2шт.

2

P910-064073

HOSE ASSY-ORFS 0X0

V370, 35B #0004

2шт.

2

P910-064072

HOSE ASSY-ORFS 0X0

V370, 35B #0005

2шт.

2

P910-064073

HOSE ASSY-ORFS 0X0

V370, 40B #0004

2шт.

2

P910-064072

HOSE ASSY-ORFS 0X0

V370, 40B #0005

2шт.

2

P910-064073

HOSE ASSY-ORFS 0X0

V370, 45B #0005

2шт.

2

P910-064072

HOSE ASSY-ORFS 0X0

V370, 45B #0006

2шт.

2

P910-064073

HOSE ASSY-ORFS 0X0

V370, 50B #0006

2шт.

2

P910-064072

HOSE ASSY-ORFS 0X0

V370, 50B #0007

2шт.

2

P910-064082

HOSE ASSY-ORFS 0X0

V400, 35B #0004

2шт.

2

P910-064081

HOSE ASSY-ORFS 0X0

V400, 35B #0005

2шт.

2

P910-064082

HOSE ASSY-ORFS 0X0

V400, 40B #0004

2шт.

2

P910-064081

HOSE ASSY-ORFS 0X0

V400, 40B #0005

2шт.

2

P910-064082

HOSE ASSY-ORFS 0X0

V400, 45B #0005

2шт.

2

P910-064081

HOSE ASSY-ORFS 0X0

V400, 45B #0006

2шт.

2

P910-064082

HOSE ASSY-ORFS 0X0

V400, 50B #0006

2шт.

2

P910-064081

HOSE ASSY-ORFS 0X0

V400, 50B #0007

2шт.

2

P910-064091

HOSE ASSY-ORFD 0X0

V450, 35B #0004

2шт.

2

P910-064090

HOSE ASSY-ORFS 0X0

V450, 35B #0005

2шт.

2

P910-064091

HOSE ASSY-ORFD 0X0

V450, 40B #0004

2шт.

2

P910-064090

HOSE ASSY-ORFS 0X0

V450, 40B #0005

2шт.

2

P910-064091

HOSE ASSY-ORFD 0X0

V450, 45B #0005

2шт.

2

P910-064090

HOSE ASSY-ORFS 0X0

V450, 45B #0006

2шт.

2

P910-064091

HOSE ASSY-ORFD 0X0

V450, 50B #0006

2шт.

2

P910-064090

HOSE ASSY-ORFS 0X0

V450, 50B #0007

2шт.

2

P910-064101

HOSE ASSY-ORFS 0X0

V500, 35B #0004

2шт.

2

P910-064100

HOSE ASSY-ORFS 0X0

V500, 35B #0005

2шт.

2

P910-064101

HOSE ASSY-ORFS 0X0

V500, 40B #0004

2шт.

2

P910-064100

HOSE ASSY-ORFS 0X0

V500, 40B #0005

2шт.

2

P910-064101

HOSE ASSY-ORFS 0X0

V500, 45B #0005

2шт.

2

P910-064100

HOSE ASSY-ORFS 0X0

V500, 45B #0006

2шт.

2

P910-064101

HOSE ASSY-ORFS 0X0

V500, 50B #0006

2шт.

2

P910-064100

HOSE ASSY-ORFS 0X0

V500, 50B #0007

2шт.

5

31FV-90130

PIN-HOSE PULLEY

2шт.

6

S017-120606

BOLT-HEX

2шт.

7

S411-120006

WASHER-SPRING

2шт.

8

S441-120006

WASHER-HARDENED

2шт.

9

31HD-90020

BRACKET WA-RH,PULLEY

1шт.

10

S037-103026

BOLT-W/WASHER

16шт.

11

34FK-90401

BLOCK WA

2шт.

12

X710-100103

CAP-HYD,ORFS

4шт.

3

31FQ-10070

CONNECTOR

4шт.

4

34FG-90201

PULLEY-HOSE

2шт.

5

31FV-90130

PIN-HOSE PULLEY

2шт.

6

S017-120606

BOLT-HEX

2шт.

7

S411-120006

WASHER-SPRING

2шт.

8

S441-120006

WASHER-HARDENED

2шт.

9

31HD-90020

BRACKET WA-RH,PULLEY

1шт.

10

S037-103026

BOLT-W/WASHER

16шт.

11

34FK-90401

BLOCK WA

35B #0006

2шт.

11

33FV-90030

BRACKET WA-HOSE

35B #0007 - #0013

2шт.

11

34FG-90210

PIPE WA

35B #0014

2шт.

11

34FK-90401

BLOCK WA

40B #0005

2шт.

11

33FV-90030

BRACKET WA-HOSE

40B #0006 - #0006

2шт.

11

34FG-90210

PIPE WA

40B #0007

2шт.

11

34FK-90401

BLOCK WA

45B #0006

2шт.

11

33FV-90030

BRACKET WA-HOSE

45B #0007 - #0007

2шт.

11

34FG-90210

PIPE WA

45B #0008

2шт.

11

34FK-90401

BLOCK WA

50B #0009

2шт.

11

33FV-90030

BRACKET WA-HOSE

50B #0010 - #0010

2шт.

11

33FG-90210

CLAMP-HOSE

50B #0011

2шт.

12

X710-100103

CAP-HYD,ORFS

4шт.

13

34FG-90260

CLAMP-HOSE

2шт.

14

31HD-90050

PLATE

2шт.

15

S035-063526

BOLT-W/WASHER

4шт.

17

31FG-80210

CONNECTOR

4шт.

18

31FG-80430

NUT-HEX

4шт.

19

S552-050203

CLAMP-BAND

16шт.

20

P923-064043

HOSE ASSY-ORFS 0X45

35B #0004

2шт.

20

P923-064043

HOSE ASSY-ORFS 0X45

40B #0004

2шт.

20

P923-064043

HOSE ASSY-ORFS 0X45

45B #0005

2шт.

20

P923-064043

HOSE ASSY-ORFS 0X45

50B #0007

2шт.

21

31HD-90010

BRACKET WA-LH,PULLEY

1шт.
