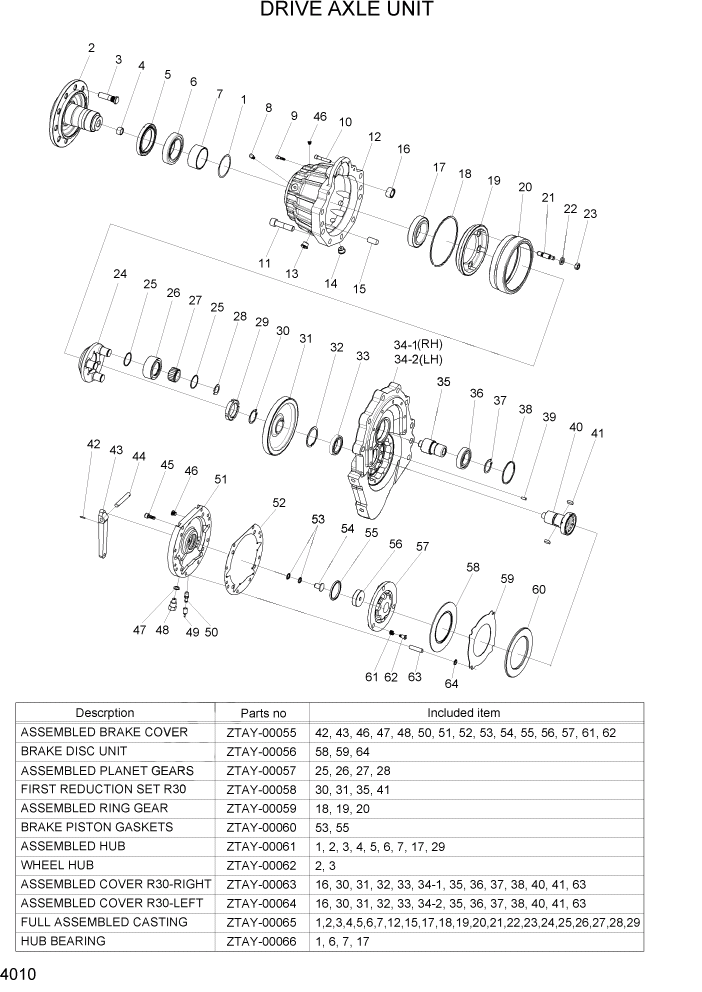

Запчасти Hyundai 35/40/45/50B PAGE 4010 DRIVE AXLE UNIT СИЛОВАЯ СИСТЕМА

*

81HD-37100

DRIVE UNIT ASSY-LH

LH #0022

1шт.

*

81HD-37101

DRIVE UNIT ASSY-LH

LH, 35B #0023

1шт.

*

81HD-37100

DRIVE UNIT ASSY-LH

LH #0009

1шт.

*

81HD-37101

DRIVE UNIT ASSY-LH

LH, 40B #0010

1шт.

*

81HD-37100

DRIVE UNIT ASSY-LH

LH #0010

1шт.

*

81HD-37101

DRIVE UNIT ASSY-LH

LH, 45B #0011

1шт.

*

81HD-37100

DRIVE UNIT ASSY-LH

LH #0016

1шт.

*

81HD-37101

DRIVE UNIT ASSY-LH

LH, 50B #0017

1шт.

*

81HD-37200

DRIVE UNIT ASSY-RH

RH #0022

1шт.

*

81HD-37201

DRIVE UNIT ASSY-RH

RH, 35B #0023

1шт.

*

81HD-37200

DRIVE UNIT ASSY-RH

RH #0009

1шт.

*

81HD-37201

DRIVE UNIT ASSY-RH

RH, 40B #0010

1шт.

*

81HD-37200

DRIVE UNIT ASSY-RH

RH #0010

1шт.

*

81HD-37201

DRIVE UNIT ASSY-RH

RH, 45B #0011

1шт.

*

81HD-37200

DRIVE UNIT ASSY-RH

RH #0016

1шт.

*

81HD-37201

DRIVE UNIT ASSY-RH

RH, 50B #0017

1шт.

1

@

SPACER

NOT

1шт.

2

@

WHEEL HUB

NOT

1шт.

3

ZTAY-00001

WHEEL FIXING SCREW

10шт.

4

ZTAY-00002

NEEDLE CAGE

1шт.

5

ZTAY-00003

SHAFT SEAL

1шт.

6

@

TAPER ROLLER BEARING

NOT

1шт.

7

@

SET-RIGHT SPACER

NOT

1шт.

8

ZTAY-00004

BREATHER PLUG

1шт.

9

ZTAY-00005

SOCKET HEAD SCREW

3шт.

10

ZTAY-00006

SOCKET HEAD SCREW

2шт.

11

ZTAY-00007

SOCKET HEAD SCREW

7шт.

12

ZTAY-00008

HOUSING

1шт.

13

ZTAY-00009

SCREW PLUG

3шт.

14

ZTAY-00010

MAGNETIC SCREW PLUG

1шт.

15

ZTAY-00011

LOCKING PIN

2шт.

16

ZTAY-00012

NEEDLE CAGE

1шт.

17

@

TAPER ROLLER BEARING

NOT

1шт.

18

@

RETAINING RING

NOT

1шт.

19

@

RING-GEAR CARR DISC

NOT

1шт.

20

@

RING GEAR

NOT

1шт.

21

ZTAY-00013

STUD

6шт.

22

ZTAY-00014

WASHER

6шт.

23

ZTAY-00015

HEX NUT

6шт.

24

ZTAY-00016

PLANET CARRIER

1шт.

25

@

RETAINING RING

NOT

6шт.

26

@

PLANET GEAR

NOT

3шт.

27

@

ROLLER BEARING

NOT

3шт.

28

ZTAY-00017

RETAINING RING

3шт.

29

ZTAY-00018

LOCKNUT

1шт.

30

ZTAY-00019

RETAINING RING

1шт.

31

@

HELIX GEAR

NOT

1шт.

32

ZTAY-00020

RETAINING RING

1шт.

33

ZTAY-00021

BALL BEARING

1шт.

34-1

ZTAY-00022

COVER-RIGHT

RH

1шт.

34-2

ZTAY-00023

COVER-LEFT

LH

1шт.

35

@

HELIX PINION

NOT

1шт.

36

ZTAY-00024

BALL BEARING

1шт.

37

ZTAY-00025

RETAINING RING

1шт.

38

ZTAY-00026

RETAINING RING

1шт.

39

ZTAY-00029

LOCKING PIN

2шт.

40

ZTAY-00030

SUN PINION

1шт.

41

ZTAY-00031

FEATHER KEY

2шт.

42

ZTAY-00032

ELASTIC PIN

2шт.

43

ZTAY-00033

LEVER

1шт.

44

ZTAY-00034

PIN

1шт.

45

ZTAY-00035

SOCKET HEAD SCREW

8шт.

46

ZTAY-00036

SCREW PLUG

5шт.

47

ZTAY-00037

WASHER

1шт.

48

ZTAY-00038

CONNECTION

1шт.

49

ZTAY-00039

BLEEDER NIPPLE CAP

1шт.

50

ZTAY-00040

BLEEDER NIPPLE

1шт.

51

ZTAY-00041

BRAKE HOUSING

1шт.

52

ZTAY-00042

SEAL

1шт.

53

ZTAY-00043

PISTON SEAL

2шт.

54

ZTAY-00044

PISTON

1шт.

55

ZTAY-00045

STEP SEAL

1шт.

56

ZTAY-00046

PISTON

1шт.

57

ZTAY-00047

DISK PUSHER

1шт.

58

ZTAY-00048

FRICTION DISK

6шт.

59

ZTAY-00049

STEEL DISK

7шт.

60

ZTAY-00050

SUPPORT DISK

1шт.

61

ZTAY-00051

SPRING

3шт.

62

ZTAY-00052

FIXING SCREW

3шт.

63

ZTAY-00053

LOCKING PIN

4шт.

64

ZTAY-00054

SPRING

24шт.

K1

ZTAY-00055

ASSEMBLED BRAKE COVER

SEE ILLUST

1шт.

K2

ZTAY-00056

BRAKE DISC UNIT

SEE ILLUST

1шт.

K3

ZTAY-00057

ASSEMBLED PLANET GEARS

SEE ILLUST

1шт.

K4

ZTAY-00058

FIRST REDUCTION SET R30

SEE ILLUST

1шт.

K5

ZTAY-00059

ASSEMBLED RING GEAR

SEE ILLUST

1шт.

K6

ZTAY-00060

BRAKE PISTON GASKETS

SEE ILLUST

1шт.

K7

ZTAY-00061

ASSEMBLED HUB

SEE ILLUST

1шт.

K8

ZTAY-00062

WHEEL HUB

SEE ILLUST

1шт.

K9

ZTAY-00063

ASSEMBLED COVER-RIGHT

SEE ILLUST

1шт.

K10

ZTAY-00064

ASSEMBLED COVER-LEFT

SEE ILLUST

1шт.

K11

ZTAY-00065

FULL ASSEMBLED CASTING

SEE ILLUST

1шт.

K12

ZTAY-00066

HUB BEARINGS

SEE ILLUST

1шт.
