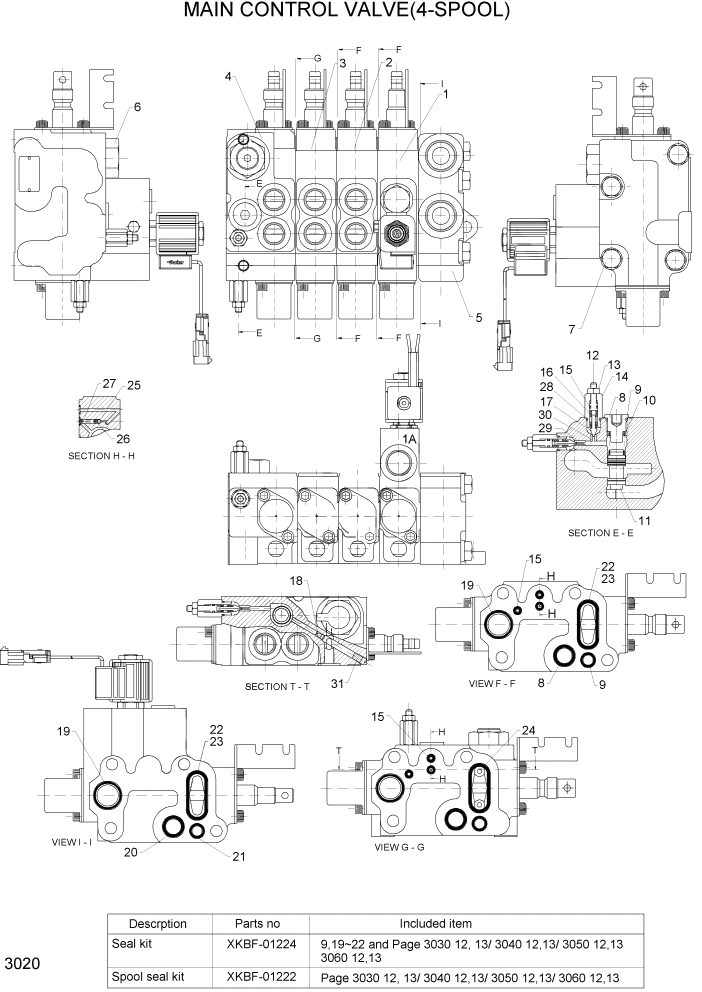

Запчасти Hyundai 35/40/45/50B PAGE 3020 MAIN CONTROL VALVE(4-SPOOL) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

33HD-02500

MCV-4SPOOL

1шт.

1

XKBF-01188

LIFT BLOCK ASSY

SEE 3030

1шт.

2

XKBF-01198

TILT BLOCK ASSY

SEE 3040

1шт.

3

XKBF-01205

AUX BLOCK ASSY

SEE 3050

1шт.

4

XKBF-01208

AUX BLOCK ASSY

SEE 3060

1шт.

5

XKBF-01209

T COVER

1шт.

6

XKBF-01210

GAGE PLUG

1шт.

NK7

XKBF-01211

LONG BOLT

NOT

4шт.

8

@

PLUG-HYDROSTAT

NOT

1шт.

NK9

XKBF-01177

O-RING

NOT

1шт.

10

@

SPRING-HYDROSTAT

NOT

1шт.

11

@

SLEEVE-HYDROSTAT

NOT

1шт.

NK12

XKBF-01213

PISTON-RELIEF

NOT

2шт.

NK13

XKBF-00984

NUT

NOT

2шт.

NK14

XKBF-01214

PLUG-RELIEF

NOT

2шт.

NK15

XKBF-01215

O-RING

NOT

9шт.

NK16

XKBF-00986

SPRING-RELIEF

NOT

2шт.

NK17

XKBF-00987

POPPET-PILOT

NOT

2шт.

18

@

BLIND PLUG

NOT

1шт.

NK19

XKBF-01183

O-RING

NOT

4шт.

NK20

XKBF-01217

O-RING

NOT

4шт.

NK21

XKBF-01218

O-RING

NOT

4шт.

NK22

XKBF-01219

O-RING

NOT

4шт.

23

@

RETAINER O-RING

NOT

4шт.

24

@

PLUG-BLIND

NOT

2шт.

25

@

BALL-STEEL

NOT

3шт.

26

@

SPRING-LOAD SEN

NOT

3шт.

27

@

SPRING-LOAD SEN

NOT

3шт.

28

@

O-RING

NOT

2шт.

29

@

SEAT-SYSTEM RELIEF

NOT

1шт.

30

@

SEAT-SECONDARY RELIEF

NOT

1шт.

31

@

PLUG

NOT

1шт.

K

XKBF-01046

TIE STUD-2 KIT

INCL 7

1шт.

K

XKBF-01221

KIT-SEAL,SECTION

INCL 9,19-22

1шт.

K

XKBF-01222

KIT-SEAL,SPOOL

SEE ILLUST

1шт.

K

XKBF-01223

KIT-RELIEF V/V

INCL 9,12-17

1шт.

K

XKBF-01224

KIT-SEAL

SEE ILLUST

1шт.
