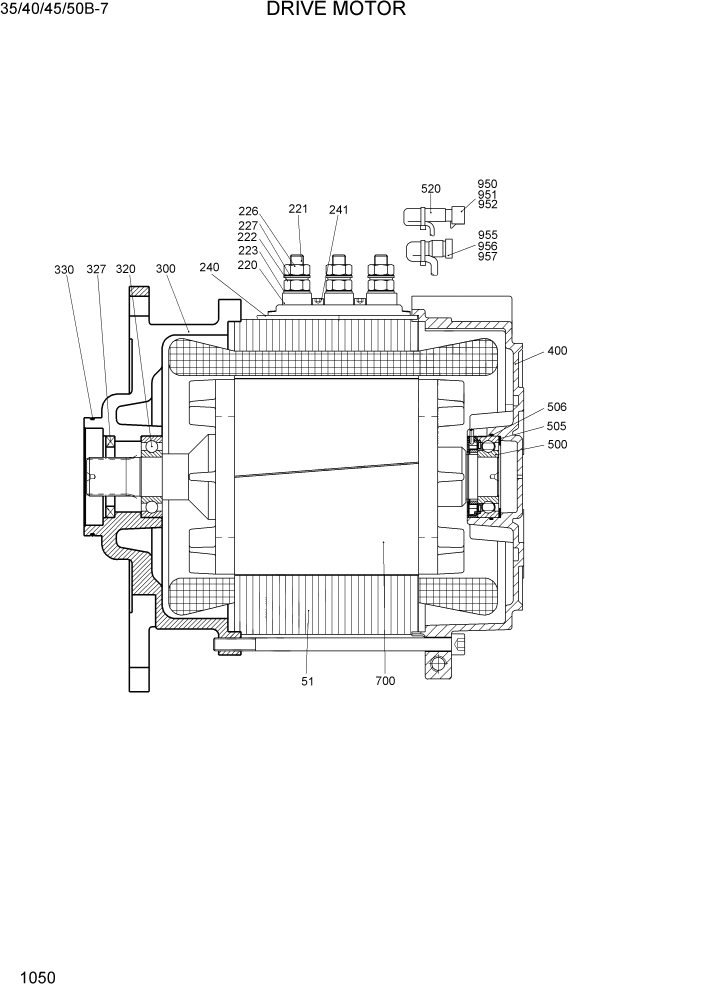

Запчасти Hyundai 35/40/45/50B PAGE 1050 DRIVE MOTOR ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

*

21HD-72071

MOTOR-TRACTION

N51

@

STATOR-CPL

NOT

1шт.

220

ZTBA-00007

TERMINAL

1шт.

N221

@

BOLT-HEXAGON

NOT

3шт.

N222

50014730

NUT-HEXAGON

NOT

3шт.

N223

50014673

DISK

NOT

3шт.

N226

50014730

NUT-HEXAGON

NOT

3шт.

N227

@

DISK-SCHNORR

NOT

3шт.

N240

@

BOARD-TERMINAL

NOT

1шт.

N241

50015047

SCREW-CYLINDER

NOT

2шт.

N300

@

ENDSHIELD

NOT

1шт.

320

ZTBA-00026

BALL BEARING

1шт.

327

ZTBA-00040

SHAFT SEALING RING

1шт.

330

ZTBA-00039

O-RING

1шт.

N400

@

COMMUTATOR-END PLATE

NOT

1шт.

500

ZTBA-00030

BEARING-SENSOR

1шт.

N505

50013974

WASHER-WAVY

NOT

1шт.

N506

50048553

O-RING

NOT

1шт.

520

ZTBA-00031

SENSOR-TEMP

1шт.

N700

@

ROTOR CPL

NOT

1шт.

N950

@

CONNECTOR

NOT

1шт.

N951

@

FLAT-TABS, AMP

NOT

2шт.

N952

@

PLUG-SEAL, AMP

NOT

2шт.

N955

@

CONNECTOR

NOT

1шт.

N956

@

FLAT-TABS, AMP

NOT

4шт.

N957

@

PLUG-SEAL, AMP

NOT

4шт.

N9999

@

SZ-AC-MOTOR

NOT

4шт.

N

@

NOT SUPPLIED PARTS

NOT

ARшт.
