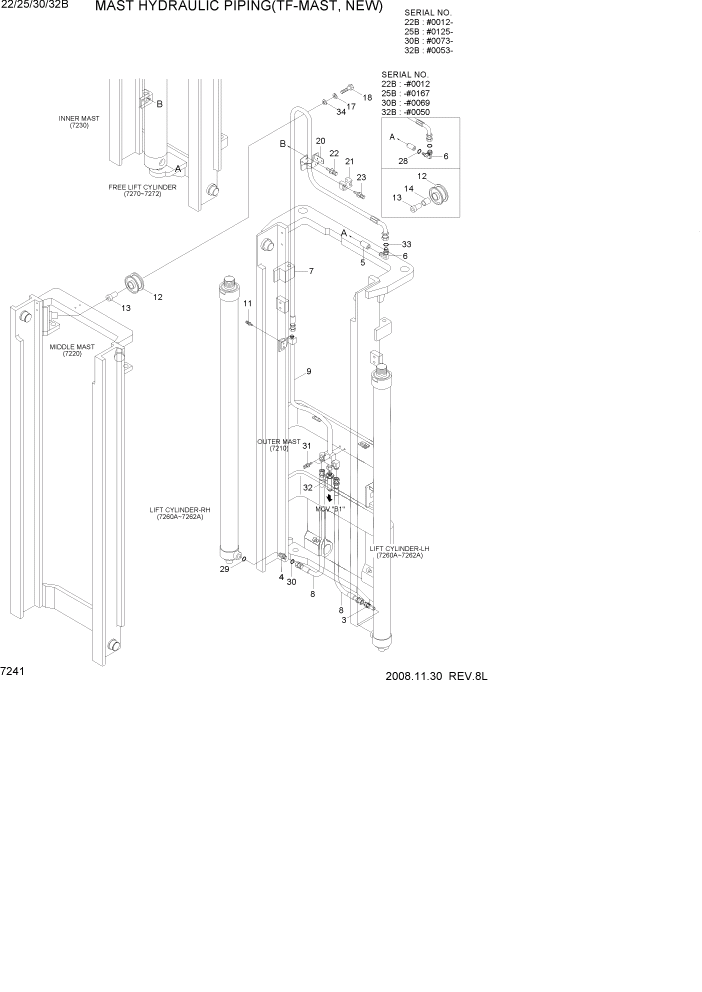

Запчасти Hyundai 22/25/30/32B-7 PAGE 7241 MAST HYDRAULIC PIPING(TF-MAST, NEW) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

@

MAST PIPING GROUP

NOT #0012

1шт.

*

@

MAST PIPING GROUP

NOT #0125

1шт.

*

@

MAST PIPING GROUP

NOT #0073

1шт.

*

@

MAST PIPING GROUP

NOT #0053

1шт.

3

31FG-05200

VALVE-VELOCITY FUSE

1шт.

4

X500-110003

CONNECTOR-ORFS

1шт.

5

EE19170100

DOWN SAFETY VALVE

1шт.

6

X520-110023

ELBOW-90,ORFS

22B #0012

1шт.

6

33HH-80130

ELBOW-90,ORFS

22B #0013

1шт.

6

X520-110023

ELBOW-90,ORFS

1шт.

6

X520-110023

ELBOW-90,ORFS

25B #0166

1шт.

6

33HH-80130

ELBOW-90,ORFS

25B #0167

1шт.

6

33HH-80130

ELBOW-90,ORFS

30/32B

1шт.

7

P930-104041

HOSE ASSY-ORFS 0X90

TF370,22B #0012

1шт.

7

P930-104041

HOSE ASSY-ORFS 0X90

TF370,25B #0125

1шт.

7

P930-104041

HOSE ASSY-ORFS 0X90

TF370,30B #0073

1шт.

7

P930-104043

HOSE ASSY-ORFS 0X90

TF370,32B #0053

1шт.

7

P930-104045

HOSE ASSY-ORFS 0X0

TF400,22B #0012

1шт.

7

P930-104045

HOSE ASSY-ORFS 0X0

TF400,25B #0125

1шт.

7

P930-104045

HOSE ASSY-ORFS 0X0

TF400,30B #0073

1шт.

7

P930-104047

HOSE ASSY-ORFS 0X0

TF400,32B #0053

1шт.

7

P930-104049

HOSE ASSY-ORFS 0X90

TF430,22B #0012

1шт.

7

P930-104049

HOSE ASSY-ORFS 0X90

TF430,25B #0125

1шт.

7

P930-104049

HOSE ASSY-ORFS 0X90

TF430,30B #0073

1шт.

7

P930-104051

HOSE ASSY-ORFS 0X90

TF430,32B #0053

1шт.

7

P930-104053

HOSE ASSY-ORFS 0X0

TF450,22B #0012

1шт.

7

P930-104053

HOSE ASSY-ORFS 0X0

TF450,25B #0125

1шт.

7

P930-104053

HOSE ASSY-ORFS 0X0

TF450,30B #0073

1шт.

7

P930-104055

HOSE ASSY-ORFS 0X0

TF450,32B #0053

1шт.

7

P930-104055

HOSE ASSY-ORFS 0X0

TF470,22B #0012

1шт.

7

P930-104055

HOSE ASSY-ORFS 0X0

TF470,25B #0125

1шт.

7

P930-104055

HOSE ASSY-ORFS 0X0

TF470,30B #0073

1шт.

7

P930-104057

HOSE ASSY-ORFS 0X0

TF470,32B #0053

1шт.

7

P930-104059

HOSE ASSY-ORFS 0X0

TF500,22B #0012

1шт.

7

P930-104059

HOSE ASSY-ORFS 0X0

TF500,25B #0125

1шт.

7

P930-104059

HOSE ASSY-ORFS 0X0

TF500,30B #0073

1шт.

7

P930-104061

HOSE ASSY-ORFS 0X0

TF500,32B #0053

1шт.

7

P930-104067

HOSE ASSY-ORFS 0X0

TF550,22B #0012

1шт.

7

P930-104067

HOSE ASSY-ORFS 0X0

TF550,25B #0125

1шт.

7

P930-104067

HOSE ASSY-ORFS 0X0

TF550,30B #0073

1шт.

7

P930-104069

HOSE ASSY-ORFS 0X0

TF550,32B #0053

1шт.

7

P930-104075

HOSE ASSY-ORFS 0X90

TF600,22B #0012

1шт.

7

P930-104075

HOSE ASSY-ORFS 0X90

TF600,25B #0125

1шт.

7

P930-104075

HOSE ASSY-ORFS 0X90

TF600,30B #0073

1шт.

7

P930-104077

HOSE ASSY-ORFS 0X0

TF600,32B #0053

1шт.

8

P910-084015

HOSE ASSY-ORFS 0X0

2шт.

9

3KFH-80201

PIPE WA

22B #0012

1шт.

9

3KFH-80201

PIPE WA

25B #0125

1шт.

9

3KFH-80201

PIPE WA

30B #0073

1шт.

9

3KFH-80200

PIPE WA

32B #0053

1шт.

11

S035-082036

BOLT-W/WASHER

22B #0012

2шт.

11

S035-082036

BOLT-W/WASHER

25B #0125

2шт.

11

S035-082036

BOLT-W/WASHER

30B #0073

2шт.

11

S035-082036

BOLT-W/WASHER

32B #0053

2шт.

12

FMB0200610

PULLEY-HOSE

22B #0012

1шт.

12

FMB0200610

PULLEY-HOSE

22B #0012

1шт.

12

33HH-80500

PULLEY-HOSE

22B #0013

1шт.

12

FMB0200610

PULLEY-HOSE

25B #0166

1шт.

12

33HH-80500

PULLEY-HOSE

25B #0167

1шт.

12

FMB0200610

PULLEY-HOSE

30B #0069

1шт.

12

33HH-80500

PULLEY-HOSE

30B #0070

1шт.

12

FMB0200610

PULLEY-HOSE

30/32B

1шт.

12

FMB0200610

PULLEY-HOSE

25B #0125

1шт.

12

FMB0200610

PULLEY-HOSE

30B #0073

1шт.

12

FMB0200610

PULLEY-HOSE

32B #0053

1шт.

13

33FY-85010

PIN-HOSE PULLEY

22B #0012

1шт.

13

33FY-85010

PIN-HOSE PULLEY

25B #0125

1шт.

13

33FY-85010

PIN-HOSE PULLEY

30B #0073

1шт.

13

33FY-85010

PIN-HOSE PULLEY

32B #0053

1шт.

13

33FY-85010

PIN-HOSE PULLEY

22B #0012

1шт.

13

31FV-90300

PIN-HOSE PULLEY

22B #0013

1шт.

13

33FY-85010

PIN-HOSE PULLEY

25B #0166

1шт.

13

31FV-90300

PIN-HOSE PULLEY

25B #0167

1шт.

13

31FV-90300

PIN-HOSE PULLEY

30/32B

1шт.

14

S731-020025

BUSHING-DU

22B #0012 - #0012

1шт.

14

S731-020025

BUSHING-DU

25B #0125 - #0167

1шт.

14

S731-020025

BUSHING-DU

30B #0073

1шт.

14

S731-020025

BUSHING-DU

32B #0053

1шт.

17

S411-120006

WASHER-SPRING

22B #0012

1шт.

17

S411-120006

WASHER-SPRING

25B #0125

1шт.

17

S411-120006

WASHER-SPRING

30B #0073

1шт.

17

S411-120006

WASHER-SPRING

32B #0053

1шт.

18

S017-120606

BOLT-HEX

22B #0012

1шт.

18

S017-120606

BOLT-HEX

22B #0012

1шт.

18

S017-120506

BOLT-HEX

22B #0013

1шт.

18

S017-120606

BOLT-HEX

25B #0166

1шт.

18

S017-120506

BOLT-HEX

25B #0167

1шт.

18

S017-120506

BOLT-HEX

30/32B

1шт.

18

S017-120606

BOLT-HEX

25B #0125

1шт.

18

S017-120606

BOLT-HEX

30B #0073

1шт.

18

S017-120606

BOLT-HEX

32B #0053

1шт.

20

33HN-80230

PIPE WA

1шт.

21

33HN-80161

CLAMP-HOSE

1шт.

22

S035-085016

BOLT-W/WASHER,HEX

2шт.

23

S035-063526

BOLT-W/WASHER

2шт.

28

S631-024004

O-RING

1шт.

28

S631-024004

O-RING

22B #0012

1шт.

28

S631-024004

O-RING

25B #0166

1шт.

29

S631-018004

O-RING

1шт.

30

S621-014001

O-RING

1шт.

31

S035-085016

BOLT-W/WASHER,HEX

22B #0012

2шт.

31

S035-085016

BOLT-W/WASHER,HEX

25B #0125

2шт.

31

S035-085016

BOLT-W/WASHER,HEX

30B #0073

2шт.

31

S035-085016

BOLT-W/WASHER,HEX

32B #0053

2шт.

32

31FG-05000

FLOW REGULATOR

22/25B

1шт.

32

31FG-05100

FLOW REGULATOR

30/32B

1шт.

33

S621-016001

O-RING

1шт.

34

S441-12000B

WASHER-HARDENED

22B #0013

1шт.

34

S441-12000B

WASHER-HARDENED

25B #0167

1шт.

34

S441-12000B

WASHER-HARDENED

30/32B

1шт.
