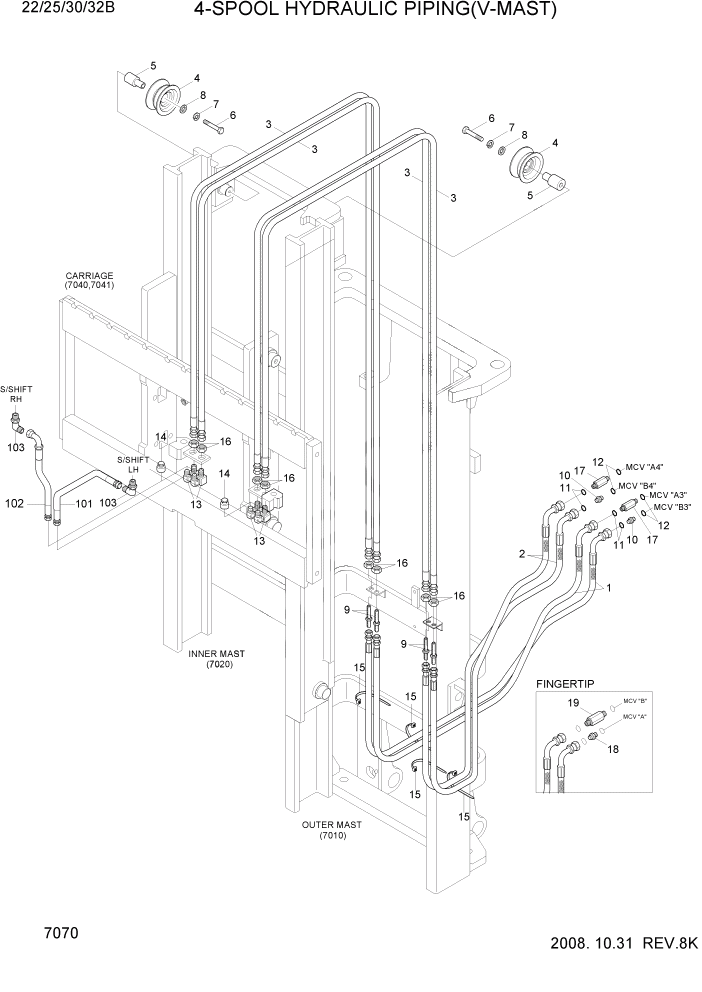

Запчасти Hyundai 22/25/30/32B-7 PAGE 7070 4-SPOOL HYDRAULIC PIPING(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P933-064036

HOSE ASSY-ORFS 0X90

22B #0011

2шт.

1

P933-064034

HOSE ASSY-ORFS 0X90

22B #0012

2шт.

1

P933-064036

HOSE ASSY-ORFS 0X90

25B #0124

2шт.

1

P933-064034

HOSE ASSY-ORFS 0X90

25B #0125

2шт.

1

P933-064036

HOSE ASSY-ORFS 0X90

30B #0072

2шт.

1

P933-064034

HOSE ASSY-ORFS 0X90

30B #0073

2шт.

1

P933-064036

HOSE ASSY-ORFS 0X90

32B #0052

2шт.

1

P933-064034

HOSE ASSY-ORFS 0X90

32B #0053

2шт.

2

P933-064040

HOSE ASSY-ORFS 0X90

22B #0011

2шт.

2

P933-064038

HOSE ASSY-ORFS 0X90

22B #0012

2шт.

2

P933-064040

HOSE ASSY-ORFS 0X90

25B #0124

2шт.

2

P933-064038

HOSE ASSY-ORFS 0X90

25B #0125

2шт.

2

P933-064040

HOSE ASSY-ORFS 0X90

30B #0072

2шт.

2

P933-064038

HOSE ASSY-ORFS 0X90

30B #0073

2шт.

2

P933-064040

HOSE ASSY-ORFS 0X90

32B #0052

2шт.

2

P933-064038

HOSE ASSY-ORFS 0X90

32B #0053

2шт.

3

P910-064051

HOSE ASSY-ORFS 0X0

V300,22B #0011

4шт.

3

P910-064052

HOSE ASSY-ORFS 0X0

V300,22B #0012

4шт.

3

P910-064051

HOSE ASSY-ORFS 0X0

V300,25B #0124

4шт.

3

P910-064052

HOSE ASSY-ORFS 0X0

V300,25B #0125

4шт.

3

P910-064051

HOSE ASSY-ORFS 0X0

V300,30B #0072

4шт.

3

P910-064052

HOSE ASSY-ORFS 0X0

V300,30B #0073

4шт.

3

P910-064051

HOSE ASSY-ORFS 0X0

V300,32B #0052

4шт.

3

P910-064052

HOSE ASSY-ORFS 0X0

V300,32B #0053

4шт.

3

P910-064057

HOSE ASSY-ORFS 0X0

V330,22B #0011

4шт.

3

P910-064058

HOSE ASSY-ORFS 0X0

V330,22B #0012

4шт.

3

P910-064057

HOSE ASSY-ORFS 0X0

V330,25B #0124

4шт.

3

P910-064058

HOSE ASSY-ORFS 0X0

V330,25B #0125

4шт.

3

P910-064057

HOSE ASSY-ORFS 0X0

V330,30B #0072

4шт.

3

P910-064058

HOSE ASSY-ORFS 0X0

V330,30B #0073

4шт.

3

P910-064057

HOSE ASSY-ORFS 0X0

V330,32B #0052

4шт.

3

P910-064058

HOSE ASSY-ORFS 0X0

V330,32B #0053

4шт.

3

P910-064061

HOSE ASSY-ORFS 0X0

V350,22B #0011

4шт.

3

P910-064062

HOSE ASSY-ORFS 0X0

V350,22B #0012

4шт.

3

P910-064061

HOSE ASSY-ORFS 0X0

V350,25B #0124

4шт.

3

P910-064062

HOSE ASSY-ORFS 0X0

V350,25B #0125

4шт.

3

P910-064061

HOSE ASSY-ORFS 0X0

V350,30B #0072

4шт.

3

P910-064062

HOSE ASSY-ORFS 0X0

V350,30B #0073

4шт.

3

P910-064061

HOSE ASSY-ORFS 0X0

V350,32B #0052

4шт.

3

P910-064062

HOSE ASSY-ORFS 0X0

V350,32B #0053

4шт.

3

P910-064067

HOSE ASSY-ORFS 0X0

V370,22B #0011

4шт.

3

P910-064068

HOSE ASSY-ORFS 0X0

V370,22B #0012

4шт.

3

P910-064067

HOSE ASSY-ORFS 0X0

V370,25B #0124

4шт.

3

P910-064068

HOSE ASSY-ORFS 0X0

V370,25B #0125

4шт.

3

P910-064067

HOSE ASSY-ORFS 0X0

V370,30B #0072

4шт.

3

P910-064068

HOSE ASSY-ORFS 0X0

V370,30B #0073

4шт.

3

P910-064067

HOSE ASSY-ORFS 0X0

V370,32B #0052

4шт.

3

P910-064068

HOSE ASSY-ORFS 0X0

V370,32B #0053

4шт.

3

P910-064073

HOSE ASSY-ORFS 0X0

V400,22B #0011

4шт.

3

P910-064074

HOSE ASSY-ORFS 0X0

V400,22B #0012

4шт.

3

P910-064073

HOSE ASSY-ORFS 0X0

V400,25B #0124

4шт.

3

P910-064074

HOSE ASSY-ORFS 0X0

V400,25B #0125

4шт.

3

P910-064073

HOSE ASSY-ORFS 0X0

V400,30B #0072

4шт.

3

P910-064074

HOSE ASSY-ORFS 0X0

V400,30B #0073

4шт.

3

P910-064073

HOSE ASSY-ORFS 0X0

V400,32B #0053

4шт.

3

P910-064074

HOSE ASSY-ORFS 0X0

V400,32B #0053

4шт.

3

P910-064079

HOSE ASSY-ORFS 0X0

V430,22B #0011

4шт.

3

P910-064080

HOSE ASSY-ORFS 0X0

V430,22B #0012

4шт.

3

P910-064079

HOSE ASSY-ORFS 0X0

V430,25B #0124

4шт.

3

P910-064080

HOSE ASSY-ORFS 0X0

V430,25B #0125

4шт.

3

P910-064079

HOSE ASSY-ORFS 0X0

V430,30B #0072

4шт.

3

P910-064080

HOSE ASSY-ORFS 0X0

V430,30B #0073

4шт.

3

P910-064079

HOSE ASSY-ORFS 0X0

V430,32B #0052

4шт.

3

P910-064080

HOSE ASSY-ORFS 0X0

V430,32B #0053

4шт.

3

P910-064085

HOSE ASSY-ORFS 0X0

V450,22B #0011

4шт.

3

P910-064086

HOSE ASSY-ORFS 0X0

V450,22B #0012

4шт.

3

P910-064085

HOSE ASSY-ORFS 0X0

V450,25B #0124

4шт.

3

P910-064086

HOSE ASSY-ORFS 0X0

V450,25B #0125

4шт.

3

P910-064085

HOSE ASSY-ORFS 0X0

V450,30B #0072

4шт.

3

P910-064086

HOSE ASSY-ORFS 0X0

V450,30B #0073

4шт.

3

P910-064085

HOSE ASSY-ORFS 0X0

V450,32B #0052

4шт.

3

P910-064086

HOSE ASSY-ORFS 0X0

V450,32B #0053

4шт.

3

P910-064089

HOSE ASSY-ORFS 0X0

V470,22B #0011

4шт.

3

P910-064090

HOSE ASSY-ORFS 0X0

V470,22B #0012

4шт.

3

P910-064089

HOSE ASSY-ORFS 0X0

V470,25B #0124

4шт.

3

P910-064090

HOSE ASSY-ORFS 0X0

V470,25B #0125

4шт.

3

P910-064089

HOSE ASSY-ORFS 0X0

V470,30B #0072

4шт.

3

P910-064090

HOSE ASSY-ORFS 0X0

V470,30B #0073

4шт.

3

P910-064089

HOSE ASSY-ORFS 0X0

V470,32B #0052

4шт.

3

P910-064090

HOSE ASSY-ORFS 0X0

V470,32B #0053

4шт.

3

P910-064095

HOSE ASSY-ORFS 0X0

V500,22B #0011

4шт.

3

P910-064096

HOSE ASSY-ORFS 0X0

V500,22B #0012

4шт.

3

P910-064095

HOSE ASSY-ORFS 0X0

V500,25B #0124

4шт.

3

P910-064096

HOSE ASSY-ORFS 0X0

V500,25B #0125

4шт.

3

P910-064095

HOSE ASSY-ORFS 0X0

V500,30B #0072

4шт.

3

P910-064096

HOSE ASSY-ORFS 0X0

V500,30B #0073

4шт.

3

P910-064095

HOSE ASSY-ORFS 0X0

V500,32B #0052

4шт.

3

P910-064096

HOSE ASSY-ORFS 0X0

V500,32B #0053

4шт.

4

34FG-90201

PULLEY-HOSE

2шт.

5

31FV-90140

PIN-HOSE PULLEY

22B #0011

2шт.

5

31FV-90130

PIN-HOSE PULLEY

22B #0012

2шт.

5

31FV-90140

PIN-HOSE PULLEY

25B #0124

2шт.

5

31FV-90130

PIN-HOSE PULLEY

25B #0125

2шт.

5

31FV-90140

PIN-HOSE PULLEY

30B #0072

2шт.

5

31FV-90130

PIN-HOSE PULLEY

30B #0073

2шт.

5

31FV-90140

PIN-HOSE PULLEY

32B #0052

2шт.

5

31FV-90130

PIN-HOSE PULLEY

32B #0053

2шт.

6

S017-120606

BOLT-HEX

2шт.

7

S411-120006

WASHER-SPRING

2шт.

8

S441-12000B

WASHER-HARDENED

2шт.

9

31FG-80210

CONNECTOR

4шт.

10

X500-110002

CONNECTOR-ORFS

22B #0011

2шт.

10

31FG-80410

CONNECTOR-ORFS

22B #0012

2шт.

10

X500-110002

CONNECTOR-ORFS

25B #0124

2шт.

10

31FG-80410

CONNECTOR-ORFS

25B #0125

2шт.

10

X500-110002

CONNECTOR-ORFS

30B #0072

2шт.

10

31FG-80410

CONNECTOR-ORFS

30B #0073

2шт.

10

X500-110002

CONNECTOR-ORFS

32B #0052

2шт.

10

31FG-80410

CONNECTOR-ORFS

32B #0053

2шт.

11

S621-012001

O-RING(SEAL LOCK TYPE)

22B #0011

4шт.

11

S621-012001

O-RING(SEAL LOCK TYPE)

25B #0124

4шт.

11

S621-012001

O-RING(SEAL LOCK TYPE)

30B #0072

4шт.

11

S621-012001

O-RING(SEAL LOCK TYPE)

32B #0052

4шт.

12

S631-014001

O-RING

22B #0011

4шт.

12

S631-014001

O-RING

25B #0124

4шт.

12

S631-014001

O-RING

30B #0072

4шт.

12

S631-014001

O-RING

32B #0052

4шт.

13

31FS-90500

ELBOW WA

44шт.

14

X710-100103

CAP

4шт.

15

S552-050203

CLAMP-BAND

4шт.

16

31FG-80430

NUT-HEX

8шт.

17

31N8-40160

CONNECTOR-ORFS.LONG

22B #0011

2шт.

17

31FG-80420

CONNECTOR-LONG

22B #0012

2шт.

17

31N8-40160

CONNECTOR-ORFS.LONG

25B #0124

2шт.

17

31FG-80420

CONNECTOR-LONG

25B #0125

2шт.

17

31N8-40160

CONNECTOR-ORFS.LONG

30B #0072

1шт.

17

31FG-80420

CONNECTOR-LONG

30B #0073

2шт.

17

31N8-40160

CONNECTOR-ORFS.LONG

32B #0052

2шт.

17

31FG-80420

CONNECTOR-LONG

32B #0053

2шт.

18

X500-310002

CONNECTOR-ORFS

FINGERTIP,22B #0012

1шт.

18

X500-310002

CONNECTOR-ORFS

FINGERTIP,25B #0125

1шт.

18

X500-310002

CONNECTOR-ORFS

FINGERTIP,30B #0073

1шт.

18

X500-310002

CONNECTOR-ORFS

FINGERTIP,32B #0053

1шт.

19

31FN-10050

CONNECTOR-LONG

FINGERTIP,22B #0012

1шт.

19

31FN-10050

CONNECTOR-LONG

FINGERTIP,25B #0125

1шт.

19

31FN-10050

CONNECTOR-LONG

FINGERTIP,30B #0073

1шт.

19

31FN-10050

CONNECTOR-LONG

FINGERTIP,32B #0053

1шт.

101

P913-064009

HOSE ASSY-ORFS 0X0

SIDE SHIFT

1шт.

102

P933-064007

HOSE ASSY-ORFS 0X90

SIDE SHIFT

1шт.

103

31FG-80400

ELBOW-90

22/25B,S/SHIFT

2шт.

103

31FG-80700

ELBOW-90

30/32B,S/SHIFT

2шт.
