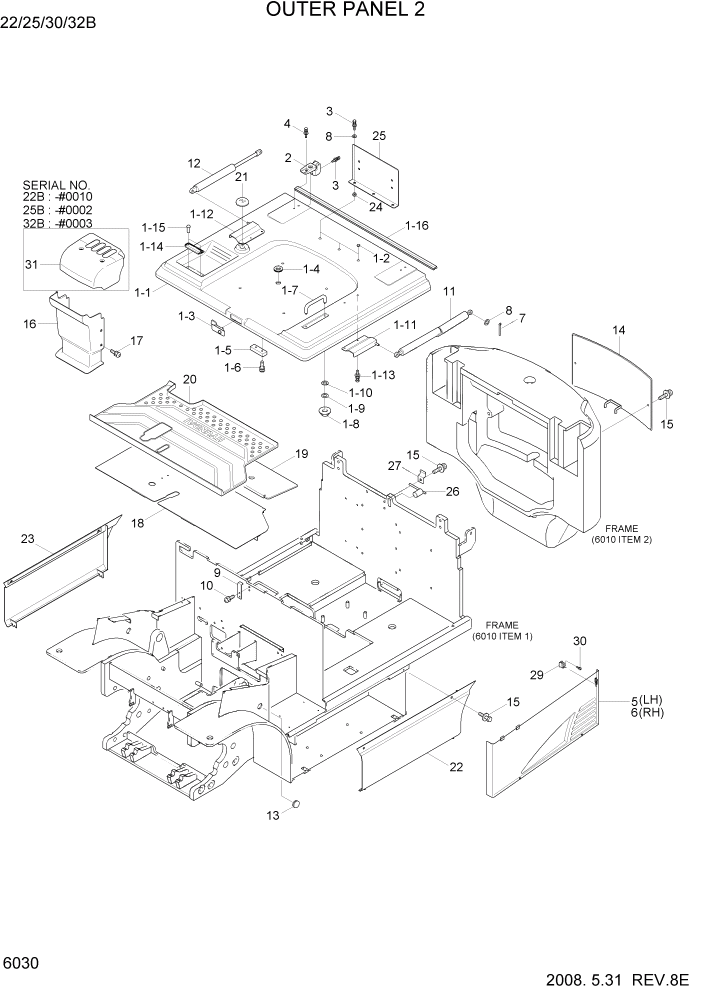

Запчасти Hyundai 22/25/30/32B-7 PAGE 6030 OUTER PANEL 2 СТРУКТУРА

1

71FH-16002

BATTERY COVER ASSY

22/25B

1шт.

1

71FH-17002

BATTERY COVER ASSY

30/32B

1шт.

1

71FH-53960

BATT.COVER ASSY

1шт.

1

71FH-53960

BATT.COVER ASSY

22B #0030

1шт.

1

71FH-53960

BATT.COVER ASSY

#0247

1шт.

1

71FH-53960

BATT.COVER ASSY

25B #0248

1шт.

1

71FH-53960

BATT.COVER ASSY

#0120

1шт.

1

71FH-53960

BATT.COVER ASSY

30B #0121

1шт.

1

71FH-53960

BATT.COVER ASSY

#0063

1шт.

1

71FH-17002

BATTERY COVER ASSY

30/32B

1шт.

1

71FH-53960

BATT.COVER ASSY

32B #0064

1шт.

1

71FH-53970

BATT.COVER ASSY

1шт.

1

71FH-53970

BATT.COVER ASSY

20B #0030

1шт.

1

71FH-53970

BATT.COVER ASSY

#0247

1шт.

1

71FH-53970

BATT.COVER ASSY

25B #0248

1шт.

1

71FH-53970

BATT.COVER ASSY

#0120

1шт.

1

71FH-53970

BATT.COVER ASSY

30B #0121

1шт.

1

71FH-53970

BATT.COVER ASSY

#0063

1шт.

1

71FH-53970

BATT.COVER ASSY

32B #0064

1шт.

1-1

71FH-16011

BATTERY COVER

22/25B

1шт.

1-1

71FH-17011

BATTERY COVER

30/32B

1шт.

1-1

71FH-53980

BATTERY COVER

1шт.

1-1

71FH-53980

BATTERY COVER

22B #0030

1шт.

1-1

71FH-53980

BATTERY COVER

#0241

1шт.

1-1

71FH-53980

BATTERY COVER

25B #0248

1шт.

1-1

71FH-53980

BATTERY COVER

#0120

1шт.

1-1

71FH-53980

BATTERY COVER

30B #0121

1шт.

1-1

71FH-53980

BATTERY COVER

#0063

1шт.

1-1

71FH-53980

BATTERY COVER

32B #0064

1шт.

1-1

71FH-53990

BATTERY COVER

1шт.

1-1

71FH-53990

BATTERY COVER

22B #0030

1шт.

1-1

71FH-53990

BATTERY COVER

#0247

1шт.

1-1

71FH-53990

BATTERY COVER

25B #0248

1шт.

1-1

71FH-53990

BATTERY COVER

#0120

1шт.

1-1

71FH-53990

BATTERY COVER

30B #0121

1шт.

1-1

71FH-53990

BATTERY COVER

#0063

1шт.

1-1

71FH-53990

BATTERY COVER

32B #0064

1шт.

1-2

FAC0800110

CLIP

3шт.

1-3

71FH-10380

LATCH ASSY

1шт.

1-4

S681-410800

GROMMET

1шт.

1-5

F12100190

CUSHION

2шт.

1-6

S131-051546

SCREW-W/WASHER

4шт.

1-7

71FH-10140

HANDLE

1шт.

1-8

S205-081006

NUT-HEX

2шт.

1-9

S403-08200B

WASHER-PLAIN

2шт.

1-1

S411-080006

WASHER-SPRING

2шт.

1-11

71FH-10151

LH BRKT-SPRING

22/25B

1шт.

1-11

71FH-11151

LH BRKT-SPRING

30/32B

1шт.

1-12

71FH-10161

RH BRKT-SPRING

22/25B

1шт.

1-12

71FH-11161

RH BRKT-SPRING

30/32B

1шт.

1-13

S035-062026

BOLT-W/WASHER

4шт.

1-14

71FH-10181

CLIP

1шт.

1-15

9055000309

RIVET

2шт.

1-16

S772-010500

WEATHER STRIP

1шт.

2

71FH-16020

HINGE

2шт.

3

S035-083026

BOLT-W/WASHER

4шт.

4

S035-082026

BOLT-W/WASHER

6шт.

5

71FH-16112

SIDE COVER UPPER-LH

22/25B

1шт.

5

71FH-17112

SIDE COVER UPPER-LH

30/32B

1шт.

6

71FH-16122

SIDE COVER UPPER-RH

22/25B

1шт.

6

71FH-17122

SIDE COVER UPPER-RH

30/32B

1шт.

7

S461-080206

PIN-SPLIT

4шт.

8

S403-082006

WASHER-PLAIN

8шт.

9

71FH-10190

BRACKET-LOCK

1шт.

10

S035-061526

BOLT-W/WASHER

2шт.

11

71HE-12052

GAS SPRING

22/25B

1шт.

11

71FH-17150

GAS SPRING

30/32B

1шт.

12

71HE-12301

GAS SPRING

22/25B

1шт.

12

71FH-11041

GAS SPRING

30/32B

1шт.

13

S661-550800

CAP-RUBBER

22/25/30B

2шт.

13

S661-400800

CAP-RUBBER

32B #0003

2шт.

13

S661-550800

CAP-RUBBER

32B #0004

2шт.

14

71FH-10114

COVER-REAR

1шт.

15

S035-082056

BOLT-W/WASHER

7шт.

16

71FH-16201

COVER-MCV

MANUAL LEVER

1шт.

17

S002-06015B

SCREW-TRUS HEAD

M/LEVER, 22B #0010

6шт.

17

S002-06015B

SCREW-TRUS HEAD

M/LEVER, 22B #0011

4шт.

17

S002-06015B

SCREW-TRUS HEAD

M/LEVER, 25B #0002

6шт.

17

S002-06015B

SCREW-TRUS HEAD

M/LEVER, 25B #0003

4шт.

17

S002-06015B

SCREW-TRUS HEAD

M/LEVER, 30B #0001

4шт.

17

S002-06015B

SCREW-TRUS HEAD

M/LEVER, 32B #0003

6шт.

17

S002-06015B

SCREW-TRUS HEAD

M/LEVER, 32B #0004

4шт.

18

71FH-16051

FLOOR PLATE-FRONT

1шт.

19

71FH-16061

FLOOR PLATE-REAR

MANUAL LEVER

1шт.

19

71FH-16160

FLOOR PLATE-REAR

FINGERTIP

1шт.

20

71FH-16071

MAT-FLOOR

1шт.

21

71FH-10230

CAP-COVER

1шт.

22

71FH-16091

SIDE COVER LOWER-LH

22/25B

1шт.

22

71FH-17091

SIDE COVER LOWER-LH

30/32B

1шт.

23

71FH-16101

SIDE COVER LOWER-RH

22/25B

1шт.

23

71FH-17101

SIDE COVER LOWER-RH

30/32B

1шт.

24

S275-080006

NUT-SELF LOCKING

2шт.

25

71FH-10270

PLATE-LICENSE

PNEUMATIC TIRE

1шт.

26

71FH-10280

STOPPER-BATTERY

1шт.

27

B51110220

CLIP

1шт.

28

F12120300

SEAT ASSY(PKT)

22B #0020

1шт.

28

F12120300

SEAT ASSY(PKT)

25B #0220

1шт.

28

F12120300

SEAT ASSY(PKT)

30B #0105

1шт.

28

F12120300

SEAT ASSY(PKT)

32B #0059

1шт.

29

71MH-54290

HOLDER-ROD

#0049

2шт.

29

71FH-16240

HOLDER

22B #0050

2шт.

29

71MH-54290

HOLDER-ROD

#0392

2шт.

29

71FH-16240

HOLDER

25B #0393

2шт.

29

71MH-54290

HOLDER-ROD

#0156

2шт.

29

71FH-16240

HOLDER

30B #0157

2шт.

29

71MH-54290

HOLDER-ROD

#0082

2шт.

29

71FH-16240

HOLDER

32B #0083

2шт.

30

S161-060106

SCREW-CROSS R/ROUND

2шт.

31

71FH-16211

UPPER COVER

M/LEVER, 22B #0010

1шт.

31

71FH-16211

UPPER COVER

M/LEVER, 25B #0002

1шт.

31

71FH-16211

UPPER COVER

M/LEVER, 32B #0003

1шт.
