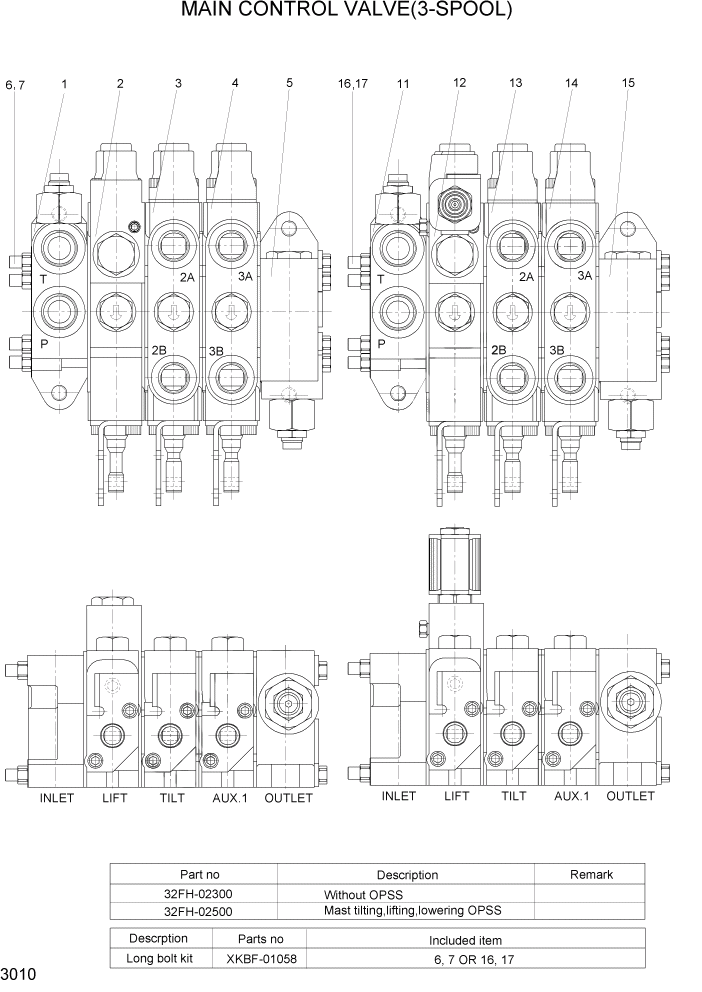

Запчасти Hyundai 22/25/30/32B-7 PAGE 3010 MAIN CONTROL VALVE(3-SPOOL) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

32FH-02300

MAIN CONTROL VALVE-3SP

SEE ILLUST

1шт.

1

XKBF-01156

BLOCK ASSY-INLET

SEE 3030

1шт.

2

XKBF-01164

BLOCK ASSY-LIFT

SEE 3050

1шт.

3

XKBF-01165

BLOCK ASSY-TILT

SEE 3060

1шт.

4

XKBF-01157

BLOCK ASSY-AUX

SEE 3070

1шт.

5

XKBF-01163

BLOCK ASSY-OUTLET

SEE 3040

1шт.

K6

XKBF-01056

LONG BOLT

4шт.

K7

XKBF-00566

NUT

4шт.

K

XKBF-01058

LONG BOLT KIT

SEE ILLUST

1шт.

*

32FH-02500

MCV-3SP(MAST OPSS)

SEE ILLUST

1шт.

11

XKBF-01156

BLOCK ASSY-INLET

SEE 3030

1шт.

12

XKBF-01160

BLOCK ASSY-LIFT

SEE 3050

1шт.

13

XKBF-01165

BLOCK ASSY-TILT

SEE 3060

1шт.

14

XKBF-01157

BLOCK ASSY-AUX

SEE 3070

1шт.

15

XKBF-01163

BLOCK ASSY-OUTLET

SEE 3040

1шт.

K16

XKBF-01056

LONG BOLT

4шт.

K17

XKBF-00566

NUT

4шт.

K

XKBF-01058

LONG BOLT KIT

SEE ILLUST

1шт.
