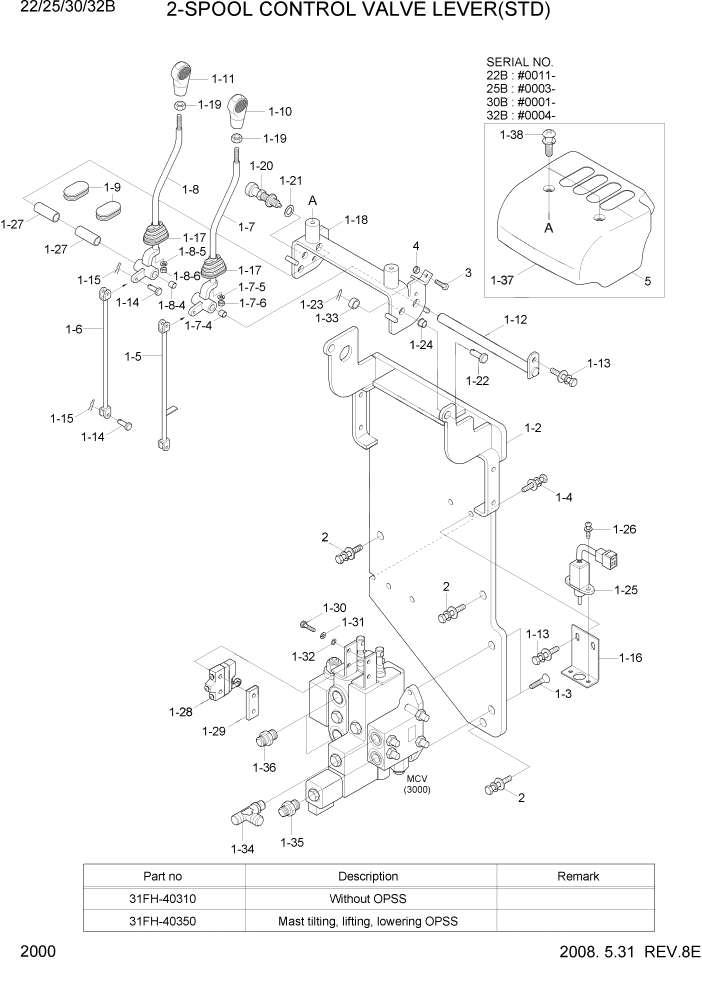

Запчасти Hyundai 22/25/30/32B-7 PAGE 2000 2-SPOOL CONTROL VALVE LEVER(STD) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

31FH-40310

VALVE & LEVER SUB ASSY

SEE ILLUST,22B #0010

1шт.

1

31FH-40311

VALVE & LEVER SUB ASSY

SEE ILLUST,22B #0011

1шт.

1

31FH-40350

VALVE & LEVER SUB-2SP

SEE ILLUST

1шт.

1

31FH-40310

VALVE & LEVER SUB ASSY

SEE ILLUST,25B #0002

1шт.

1

31FH-40311

VALVE & LEVER SUB ASSY

SEE ILLUST,25B #0003

1шт.

1

31FH-40311

VALVE & LEVER SUB ASSY

SEE ILLUST,30B #0001

1шт.

1

31FH-40310

VALVE & LEVER SUB ASSY

SEE ILLUST,32B #0003

1шт.

1

31FH-40311

VALVE & LEVER SUB ASSY

SEE ILLUST,32B #0004

1шт.

1

31FH-40350

VALVE & LEVER SUB-2SP

SEE ILLUST,22B #0010

1шт.

1

31FH-40351

VALVE & LEVER SUB-2SP

SEE ILLUST,22B #0011

1шт.

1

31FH-40350

VALVE & LEVER SUB-2SP

SEE ILLUST,25B #0002

1шт.

1

31FH-40351

VALVE & LEVER SUB-2SP

SEE ILLUST,25B #0003

1шт.

1

31FH-40351

VALVE & LEVER SUB-2SP

SEE ILLUST,30B #0001

1шт.

1

31FH-40350

VALVE & LEVER SUB-2SP

SEE ILLUST,32B #0003

1шт.

1

31FH-40351

VALVE & LEVER SUB-2SP

SEE ILLUST,32B #0004

1шт.

1-1

@

MCV

NOT

1шт.

1-2

31FH-40170

BRACKET-VALVE MTG

1шт.

1-3

81HJ-20261

BOLT-SOCKET FLAT HEAD

2шт.

1-4

S037-103026

BOLT-W/WASHER

1шт.

1-5

31FY-40720

ROD-LIFT

1шт.

1-6

31FY-40710

ROD

1шт.

1-7

31FY-40611

LEVER-LIFT

1шт.

1-7-4

FAC1000680

DU BUSH-FLANGE

2шт.

1-7-5

S411-080006

WASHER-SPRING

1шт.

1-7-6

S205-08100B

NUT-HEX

1шт.

1-8

31FY-40621

LEVER-TILT

1шт.

1-8-4

FAC1000680

DU BUSH-FLANGE

2шт.

1-8-5

S411-080006

WASHER-SPRING

1шт.

1-8-6

S205-08100B

NUT-HEX

1шт.

1-9

71FH-16230

CAP-LEVER

2шт.

1-1

31HA-40500

KNOB-MINI,LIFT

1шт.

1-11

31HA-40510

KNOB-MINI,TILT

1шт.

1-12

31FY-40660

SHAFT

1шт.

1-13

S035-061526

BOLT-W/WASHER

3шт.

1-14

S491-060222

PIN-CLEVIS

4шт.

1-15

S501-060002

PIN-SELF LOCKING

4шт.

1-16

31FH-40070

BRACKET-LIFT SENSOR

1шт.

1-17

71FH-16220

BELLOWS-LEVER

2шт.

1-18

31FY-40652

NUT-HEX

1шт.

1-19

S205-101006

NUT-HEX

2шт.

1-2

31FY-40670

PLUNGER

1шт.

1-21

31FY-40691

WASHER-SPECIAL

1шт.

1-22

S491-100282

PIN-CLEVIS

2шт.

1-23

S501-100002

PIN-SELF LOCKING

2шт.

1-24

S741-100818

DU BUSHING-FLANGE

2шт.

1-25

B51830060

SENSOR-LIFT

1шт.

1-26

S131-051546

SCREW-W/WASHER

2шт.

1-27

B51600110

SPACER

2шт.

1-28

21FY-72040

SWITCH ASSY-2 SPOOL

1шт.

1-29

B52110070

BRACKET

2шт.

1-3

S015-040306

BOLT-HEX

4шт.

1-31

S411-040006

WASHER-SPRING

4шт.

1-32

S403-04100B

WASHER-PLAIN

4шт.

1-33

31FY-40681

SPACER

2шт.

1-34

31HH-20051

TEE-WITH GAUGE PORT

1шт.

1-35

31FG-20110

CONNECTOR

1шт.

1-36

31FG-80410

CONNECTOR-ORFS

2шт.

1-37

71FH-16211

UPPER COVER

22B #0011

1шт.

1-37

71FH-16211

UPPER COVER

25B #0003

1шт.

1-37

71FH-16211

UPPER COVER

30B #0001

1шт.

1-37

71FH-16211

UPPER COVER

32B #0004

1шт.

3

71EH-13150

RUBBER-BUMPER

1шт.

1-38

S002-06015B

SCREW-TRUS HEAD

22B #0011

2шт.

1-38

S002-06015B

SCREW-TRUS HEAD

25B #0003

2шт.

1-38

S002-06015B

SCREW-TRUS HEAD

30B #0001

2шт.

1-38

S002-06015B

SCREW-TRUS HEAD

32B #0004

2шт.

2

S035-082526

BOLT-W/WASHER

3шт.

3

71EH-13150

RUBBER-BUMPER

1шт.

4

S205-101006

NUT-HEX

1шт.

5

71FH-16211

UPPER COVER

22B #0011

1шт.

5

71FH-16211

UPPER COVER

25B #0003

1шт.

5

71FH-16211

UPPER COVER

30B #0001

1шт.

5

71FH-16211

UPPER COVER

32B #0004

1шт.

6

S002-06015B

SCREW-TRUS HEAD

22B #0011

2шт.

6

S002-06015B

SCREW-TRUS HEAD

25B #0003

2шт.

6

S002-06015B

SCREW-TRUS HEAD

30B #0001

2шт.

6

S002-06015B

SCREW-TRUS HEAD

32B #0004

2шт.
