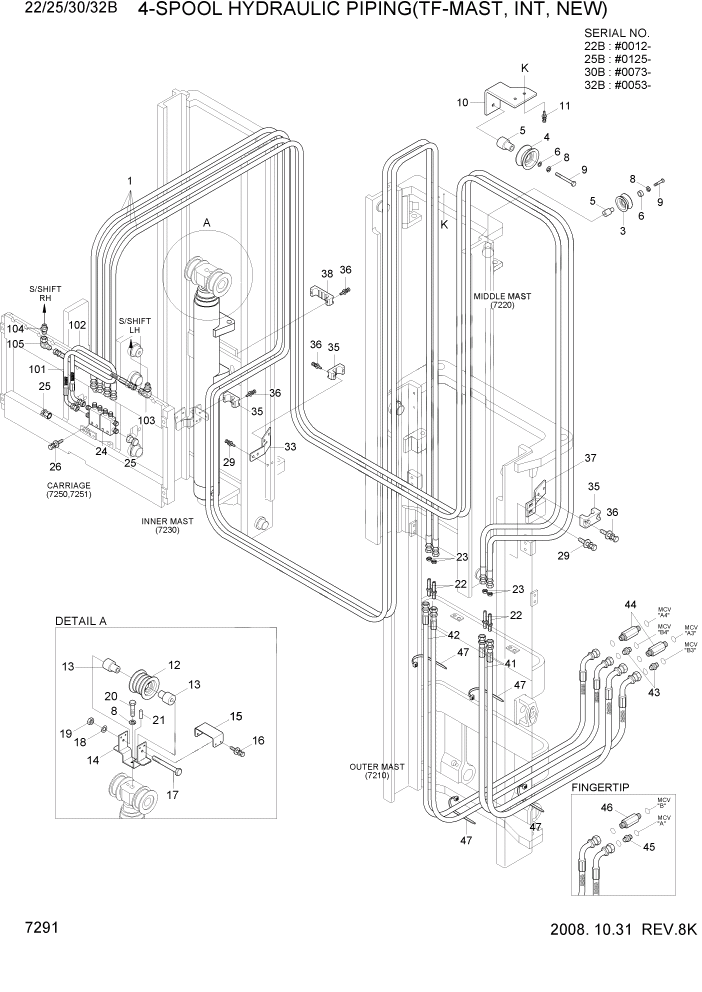

Запчасти Hyundai 22/25/30/32B-7 PAGE 7291 4-SPOOL HYD PIPING(TF-MAST,INT, NEW) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

@

4-SPOOL HYD PIPING

NOT #0012

1шт.

*

@

4-SPOOL HYD PIPING

NOT #0125

1шт.

*

@

4-SPOOL HYD PIPING

NOT #0073

1шт.

*

@

4-SPOOL HYD PIPING

NOT #0053

1шт.

1

P910-064087

HOSE ASSY-ORFS 0X0

TF370,22/25/30B

4шт.

1

P910-064089

HOSE ASSY-ORFS 0X0

TF370,32B

4шт.

1

P910-064093

HOSE ASSY-ORFS 0X0

TF400,22/25/30B

4шт.

1

P910-064095

HOSE ASSY-ORFS 0X0

TF400,32B

4шт.

1

P910-064099

HOSE ASSY-ORFS 0X0

TF430,22/25/30B

4шт.

1

P910-064101

HOSE ASSY-ORFS 0X0

TF430,32B

4шт.

1

P910-064104

HOSE ASSY-ORFS 0X0

TF450,22/25/30B

4шт.

1

P910-064106

HOSE ASSY-ORFS 0X0

TF450,32B

4шт.

1

P910-064108

HOSE ASSY-ORFS 0X0

TF470,22/25/30B

4шт.

1

P910-064110

HOSE ASSY-ORFS 0X0

TF470,32B

4шт.

1

P910-064114

HOSE ASSY-ORFS 0X0

TF500,22/25/30B

4шт.

1

P910-064116

HOSE ASSY-ORFS 0X0

TF500,32B

4шт.

1

P910-064125

HOSE ASSY-ORFS 0X0

TF550,22/25/30B

4шт.

1

P910-064127

HOSE ASSY-ORFS 0X0

TF550,32B

4шт.

1

P910-064137

HOSE ASSY-ORFS 0X0

TF600,22/25/30B

4шт.

1

P910-064139

HOSE ASSY-ORFS 0X0

TF600,32B

4шт.

3

33HN-80100

PULLEY ASSY-HOSE

1шт.

4

34FG-90201

PULLEY-HOSE

1шт.

5

63HN-18300

PIN-HOSE PULLEY

2шт.

6

33HN-90600

SPACER

2шт.

8

S411-120006

WASHER-SPRING

2шт.

9

S017-120756

BOLT-HEX

2шт.

10

33HN-90311

BRACKET-PULLEY

1шт.

11

S035-083536

BOLT-W/WASHER

2шт.

12

33HD-90370

PULLEY-HOSE

1шт.

13

34FG-90351

PIN-HOSE PULLEY

2шт.

14

33HA-90801

BRACKET WA-PULLEY

1шт.

15

34FG-90270

COVER

1шт.

16

S035-081526

BOLT-W/WASHER

4шт.

17

S017-101406

BOLT-HEX

1шт.

18

S403-102006

WASHER-PLAIN

1шт.

19

S275-10000B

NUT-SELF LOCKING

1шт.

20

S017-120506

BOLT-HEX

1шт.

21

S471-800162

PIN-SPRING

1шт.

22

31FG-80210

CONNECTOR

4шт.

23

31FG-80430

NUT-HEX

4шт.

24

34FK-90401

BLOCK WA

2шт.

25

X710-100103

CAP

4шт.

26

S037-102526

SCREW-W/WASHER

4шт.

29

S035-082516

BOLT-W/WASHER

4шт.

33

33HN-90901

BRACKET

1шт.

35

34FG-90260

CLAMP-HOSE

3шт.

36

S035-063526

BOLT-W/WASHER

8шт.

37

33HN-90700

BRACKET

1шт.

38

34FG-90460

CLAMP-HOSE

1шт.

41

P933-064034

HOSE ASSY-ORFS 0X90

2шт.

42

P933-064038

HOSE ASSY-ORFS 0X90

2шт.

43

31FG-80410

CONNECTOR-ORFS

MANUAL LEVER

2шт.

44

31FG-80420

CONNECTOR-LONG

MANUAL LEVER

2шт.

45

X500-310002

CONNECTOR-ORFS

FINGERTIP

2шт.

46

31FN-10050

CONNECTOR-LONG

FINGERTIP

2шт.

47

S552-050203

CLAMP-BAND

4шт.

101

P933-064007

HOSE ASSY-ORFS 0X90

S-SHIFT, 22/25B

1шт.

101

P933-064006

HOSE ASSY-ORFS 0X90

S-SHIFT, 30/32B

1шт.

102

P933-064011

HOSE ASSY-ORFS 0X90

SIDE SHIFT

1шт.

103

31FG-80400

ELBOW-90

SIDE SHIFT

1шт.

104

X500-310002

CONNECTOR-ORFS

SIDE SHIFT

1шт.

105

X850-525200

ELBOW-90,SWIVEL,ORFS

SIDE SHIFT

1шт.
