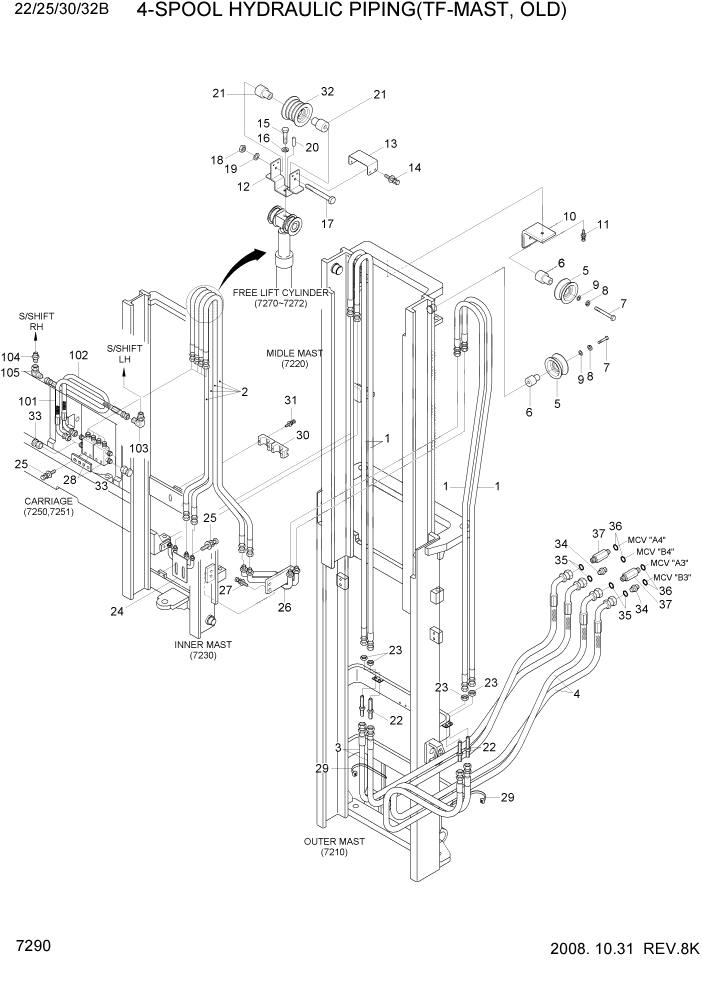

Запчасти Hyundai 22/25/30/32B-7 PAGE 7290 4-SPOOL HYDRAULIC PIPING(TF-MAST, OLD) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

@

4-SPOOL HYD PIPING

NOT #0011

1шт.

*

@

4-SPOOL HYD PIPING

NOT #0124

1шт.

*

@

4-SPOOL HYD PIPING

NOT #0072

1шт.

*

@

4-SPOOL HYD PIPING

NOT #0052

1шт.

1

P910-064043

HOSE ASSY-ORFS 0X0

TF370,22/25/30B

4шт.

1

P910-064047

HOSE ASSY-ORFS 0X0

TF400,22/25/30B

4шт.

1

P910-064051

HOSE ASSY-ORFS 0X0

TF430,22/25/30B

4шт.

1

P910-064055

HOSE ASSY-ORFS 0X0

TF450,22/25/30B

4шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF470,22/25/30B

4шт.

1

P910-064061

HOSE ASSY-ORFS 0X0

TF500,22/25/30B

4шт.

1

P910-064069

HOSE ASSY-ORFS 0X0

TF550,22/25/30B

4шт.

1

P910-064077

HOSE ASSY-ORFS 0X0

TF600,22/25/30B

4шт.

1

P910-064084

HOSE ASSY-ORFS 0X0

TF650,22/25/30B

4шт.

1

P910-064045

HOSE ASSY-ORFS 0X0

TF370,32B

4шт.

1

P910-064049

HOSE ASSY-ORFS 0X0

TF400,32B

4шт.

1

P910-064053

HOSE ASSY-ORFS 0X0

TF430,32B

4шт.

1

P910-064057

HOSE ASSY-ORFS 0X0

TF450,32B

4шт.

1

P910-064059

HOSE ASSY-ORFS 0X0

TF470,32B

4шт.

1

P910-064063

HOSE ASSY-ORFS 0X0

TF500,32B

4шт.

1

P910-064071

HOSE ASSY-ORFS 0X0

TF550,32B

4шт.

1

P910-064079

HOSE ASSY-ORFS 0X0

TF600,32B

4шт.

1

P910-064086

HOSE ASSY-ORFS 0X0

TF650,32B

4шт.

2

P910-064038

HOSE ASSY-ORFS 0X0

TF370

4шт.

2

P910-064040

HOSE ASSY-ORFS 0X0

TF400

4шт.

2

P910-064042

HOSE ASSY-ORFS 0X0

TF430

4шт.

2

P910-064043

HOSE ASSY-ORFS 0X0

TF450

4шт.

2

P910-064045

HOSE ASSY-ORFS 0X0

TF470

4шт.

2

P910-064047

HOSE ASSY-ORFS 0X0

TF500

4шт.

2

P910-064050

HOSE ASSY-ORFS 0X0

TF550

4шт.

2

P910-064054

HOSE ASSY-ORFS 0X0

TF600

4шт.

2

P910-064058

HOSE ASSY-ORFS 0X0

TF650

4шт.

3

P933-064036

HOSE ASSY-ORFS 0X90

2шт.

4

P933-064040

HOSE ASSY-ORFS 0X90

2шт.

5

34FG-90201

PULLEY-HOSE

2шт.

6

31FV-90130

PIN-HOSE PULLEY

2шт.

7

S017-120606

BOLT-HEX

2шт.

8

S411-120006

WASHER-SPRING

2шт.

9

S441-120006

WASHER-HARDENED

2шт.

10

33FH-95300

BRACKET

1шт.

11

S037-124026

BOLT-W/WASHER

1шт.

12

33HA-90801

BRACKET WA-PULLEY

1шт.

13

34FG-90270

COVER

1шт.

14

S035-081526

BOLT-W/WASHER

4шт.

15

S017-120456

BOLT-HEX

1шт.

16

S411-120006

WASHER-SPRING

1шт.

17

S017-101406

BOLT-HEX

1шт.

18

S275-100006

NUT-SELF LOCKING

1шт.

19

S403-102006

WASHER-PLAIN

1шт.

20

S471-800162

PIN-SPRING

1шт.

21

34FG-90351

PIN-HOSE PULLEY

2шт.

22

31FG-80210

CONNECTOR

4шт.

23

31FG-80430

NUT-HEX

4шт.

24

34FG-90210

PIPE WA

1шт.

25

S037-102026

BOLT-W/WASHER

6шт.

26

33FH-95400

PIPE WA

1шт.

27

S035-082026

BOLT-W/WASHER

2шт.

28

34FK-90401

BLOCK WA

2шт.

29

S552-102370

CLAMP-BAND

8шт.

30

34FG-90260

CLAMP-HOSE

2шт.

31

S035-063526

BOLT-W/WASHER

4шт.

32

33HD-90370

PULLEY-HOSE

1шт.

33

X710-100103

CAP

4шт.

34

X500-110002

CONNECTOR-ORFS

2шт.

35

S621-012001

O-RING

4шт.

36

S631-014001

O-RING

4шт.

37

31N8-40160

CONNECTOR-ORFS.LONG

2шт.

101

P933-064007

HOSE ASSY-ORFS 0X90

22/25B,S/SHIFT

1шт.

101

P933-064006

HOSE ASSY-ORFS 0X90

30/32B,S/SHIFT

1шт.

102

P933-064011

HOSE ASSY-ORFS 0X90

SIDE SHIFT

1шт.

103

31FG-80400

ELBOW-90

SIDE SHIFT

1шт.

104

X500-310002

CONNECTOR-ORFS

SIDE SHIFT

1шт.

105

X850-525200

ELBOW-90,SWIVEL,ORFS

SIDE SHIFT

1шт.
