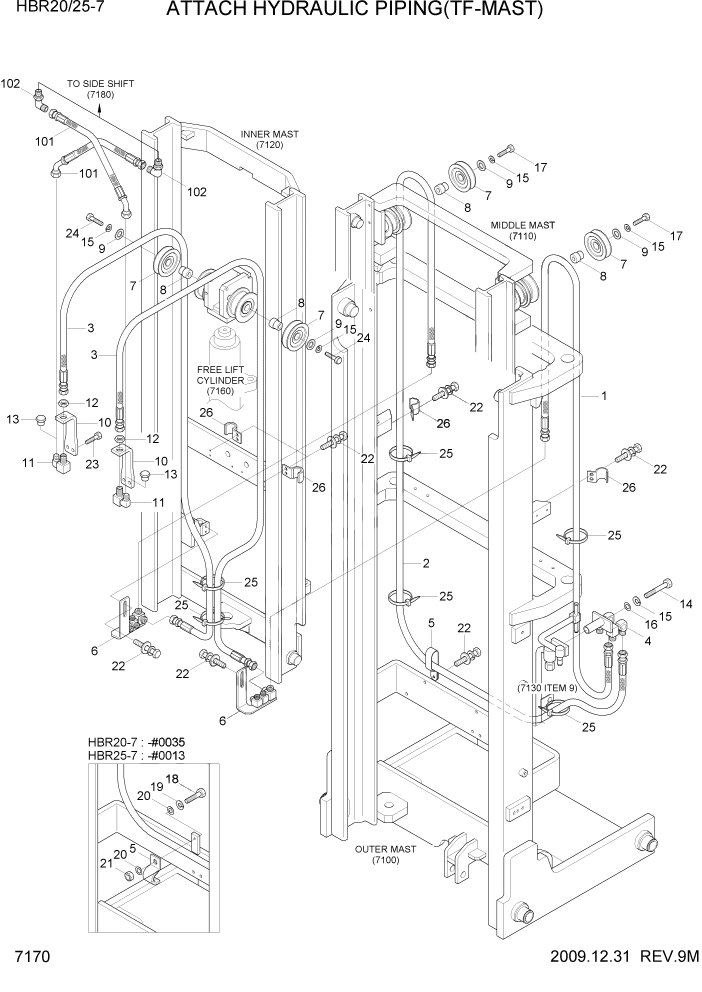

Запчасти Hyundai HBR20/HBR25-7 PAGE 7170 ATTACH HYDRAULIC PIPING(TF-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ
№
Артикул
Название
Примечание
Количество
1
P910-064048
HOSE ASSY-ORFS 0X0
TF370
1шт.
1
P910-064052
HOSE ASSY-ORFS 0X0
TF400
1шт.
1
P910-064056
HOSE ASSY-ORFS 0X0
TF430
1шт.
1
P910-064060
HOSE ASSY-ORFS 0X0
TF450
1шт.
1
P910-064062
HOSE ASSY-ORFS 0X0
TF470
1шт.
1
P910-064066
HOSE ASSY-ORFS 0X0
TF500
1шт.
1
P910-064073
HOSE ASSY-ORFS 0X0
TF550
1шт.
1
P910-064081
HOSE ASSY-ORFS 0X0
TF600
1шт.
1
P910-064089
HOSE ASSY-ORFS 0X0
TF650
1шт.
1
P910-064097
HOSE ASSY-ORFS 0X0
TF700
1шт.
1
P910-064105
HOSE ASSY-ORFS 0X0
HBR20-7 #0161
1шт.
1
P910-064105
HOSE ASSY-ORFS 0X0
HBR25-7 #0151
1шт.
2
P910-064105
HOSE ASSY-ORFS 0X0
TF370
1шт.
2
P910-064076
HOSE ASSY-ORFS 0X0
TF400
1шт.
2
P910-064080
HOSE ASSY-ORFS 0X0
TF430
1шт.
2
P910-064084
HOSE ASSY-ORFS 0X0
TF450
1шт.
2
P910-064086
HOSE ASSY-ORFS 0X0
TF470
1шт.
2
P910-064090
HOSE ASSY-ORFS 0X0
TF500
1шт.
2
P910-064097
HOSE ASSY-ORFS 0X0
TF550
1шт.
2
P910-064105
HOSE ASSY-ORFS 0X0
TF600
1шт.
2
P910-064113
HOSE ASSY-ORFS 0X0
TF650
1шт.
2
P910-064121
HOSE ASSY-ORFS 0X0
TF700
1шт.
2
P910-064129
HOSE ASSY-ORFS 0X0
HBR20-7 #0161
1шт.
2
P910-064129
HOSE ASSY-ORFS 0X0
HBR25-7 #0151
1шт.
3
P910-064033
HOSE ASSY-ORFS 0X0
TF370,HBR20-7 #0035
2шт.
3
P910-064039
HOSE ASSY-ORFS 0X0
TF370,HBR20-7 #0036 - #0160
2шт.
3
P910-064042
HOSE ASSY-ORFS 0X0
TF370,HBR20-7 #0161
2шт.
3
P910-064033
HOSE ASSY-ORFS 0X0
TF370,HBR25-7 #0013
2шт.
3
P910-064039
HOSE ASSY-ORFS 0X0
TF370,HBR25-7 #0014 - #0150
2шт.
3
P910-064042
HOSE ASSY-ORFS 0X0
TF370,HBR25-7 #0151
2шт.
3
P910-064037
HOSE ASSY-ORFS 0X0
TF400,HBR20-7 #0035
2шт.
3
P910-064044
HOSE ASSY-ORFS 0X0
TF400,HBR20-7 #0161
2шт.
3
P910-064037
HOSE ASSY-ORFS 0X0
TF400,HBR25-7 #0013
2шт.
3
P910-064044
HOSE ASSY-ORFS 0X0
TF400,HBR25-7 #0151
2шт.
3
P910-064043
HOSE ASSY-ORFS 0X0
TF430,HBR20-7 #0036 - #0160
2шт.
3
P910-064046
HOSE ASSY-ORFS 0X0
TF430,HBR20-7 #0161
2шт.
3
P910-064043
HOSE ASSY-ORFS 0X0
TF430,HBR25-7 #0014 - #0150
2шт.
3
P910-064046
HOSE ASSY-ORFS 0X0
TF430,HBR25-7 #0151
2шт.
3
P910-064045
HOSE ASSY-ORFS 0X0
TF450,HBR20-7 #0035
2шт.
3
P910-064044
HOSE ASSY-ORFS 0X0
TF450,HBR20-7 #0036 - #0160
2шт.
3
P910-064047
HOSE ASSY-ORFS 0X0
TF450,HBR20-7 #0161
2шт.
3
P910-064045
HOSE ASSY-ORFS 0X0
TF450,HBR25-7 #0013
2шт.
3
P910-064044
HOSE ASSY-ORFS 0X0
TF450,HBR25-7 #0014 - #0150
2шт.
3
P910-064047
HOSE ASSY-ORFS 0X0
TF450,HBR25-7 #0151
2шт.
3
P910-064047
HOSE ASSY-ORFS 0X0
TF470,HBR20-7 #0035
2шт.
3
P910-064046
HOSE ASSY-ORFS 0X0
TF470,HBR20-7 #0036 - #0160
2шт.
3
P910-064049
HOSE ASSY-ORFS 0X0
TF470,HBR20-7 #0161
2шт.
3
P910-064047
HOSE ASSY-ORFS 0X0
TF470,HBR25-7 #0013
2шт.
3
P910-064046
HOSE ASSY-ORFS 0X0
TF470,HBR25-7 #0014 - #0150
2шт.
3
P910-064049
HOSE ASSY-ORFS 0X0
TF470,HBR25-7 #0151
2шт.
3
P910-064051
HOSE ASSY-ORFS 0X0
TF500,HBR20-7 #0035
2шт.
3
P910-064048
HOSE ASSY-ORFS 0X0
TF500,HBR20-7 #0036 - #0160
2шт.
3
P910-064051
HOSE ASSY-ORFS 0X0
TF500,HBR20-7 #0161
2шт.
3
P910-064051
HOSE ASSY-ORFS 0X0
TF500,HBR25-7 #0013
2шт.
3
P910-064048
HOSE ASSY-ORFS 0X0
TF500,HBR25-7 #0014 - #0150
2шт.
3
P910-064051
HOSE ASSY-ORFS 0X0
TF500,HBR25-7 #0151
2шт.
3
P910-064058
HOSE ASSY-ORFS 0X0
TF550,HBR20-7 #0035
2шт.
3
P910-064051
HOSE ASSY-ORFS 0X0
TF550,HBR20-7 #0036 - #0160
2шт.
3
P910-064054
HOSE ASSY-ORFS 0X0
TF550,HBR20-7 #0036
2шт.
3
P910-064058
HOSE ASSY-ORFS 0X0
TF550,HBR25-7 #0013
2шт.
3
P910-064051
HOSE ASSY-ORFS 0X0
TF550,HBR25-7 #0014 - #0150
2шт.
3
P910-064054
HOSE ASSY-ORFS 0X0
TF550,HBR25-7 #0151
2шт.
3
P910-064066
HOSE ASSY-ORFS 0X0
TF600,HBR20-7 #0035
2шт.
3
P910-064055
HOSE ASSY-ORFS 0X0
TF600,HBR20-7 #0036 - #0160
2шт.
3
P910-064057
HOSE ASSY-ORFS 0X0
TF600,HBR20-7 #0161
2шт.
3
P910-064066
HOSE ASSY-ORFS 0X0
TF600,HBR25-7 #0013
2шт.
3
P910-064055
HOSE ASSY-ORFS 0X0
TF600,HBR25-7 #0014 - #0150
2шт.
3
P910-064057
HOSE ASSY-ORFS 0X0
TF600,HBR25-7 #0151
2шт.
3
P910-064074
HOSE ASSY-ORFS 0X0
TF650,HBR20-7 #0035
2шт.
3
P910-064059
HOSE ASSY-ORFS 0X0
TF650,HBR20-7 #0036 - #0160
2шт.
3
P910-064061
HOSE ASSY-ORFS 0X0
TF650,HBR20-7 #0161
2шт.
3
P910-064074
HOSE ASSY-ORFS 0X0
TF650,HBR25-7 #0013
2шт.
3
P910-064059
HOSE ASSY-ORFS 0X0
TF650,HBR25-7 #0014 - #0150
2шт.
3
P910-064061
HOSE ASSY-ORFS 0X0
TF650,HBR25-7 #0151
2шт.
3
P910-064082
HOSE ASSY-ORFS 0X0
TF700,HBR20-7 #0035
2шт.
3
P910-064063
HOSE ASSY-ORFS 0X0
TF700,HBR20-7 #0036 - #0160
2шт.
3
P910-064065
HOSE ASSY-ORFS 0X0
TF700,HBR20-7 #0161
2шт.
3
P910-064082
HOSE ASSY-ORFS 0X0
TF700,HBR25-7 #0013
2шт.
3
P910-064063
HOSE ASSY-ORFS 0X0
TF700,HBR25-7 #0014 - #0150
2шт.
3
P910-064065
HOSE ASSY-ORFS 0X0
TF700,HBR25-7 #0151
2шт.
3
P910-064067
HOSE ASSY-ORFS 0X0
HBR20-7 #0161
2шт.
3
P910-064067
HOSE ASSY-ORFS 0X0
HBR25-7 #0151
2шт.
4
31FS-90110
ELBOW WA
1шт.
5
31FS-80400
CLAMP-HOSE
HBR20-7 #0035
1шт.
5
31L6-02460
CLAMP-TUBE
HBR20-7 #0036
1шт.
5
31FS-80400
CLAMP-HOSE
HBR25-7 #0013
1шт.
5
31L6-02460
CLAMP-TUBE
HBR25-7 #0014
1шт.
7
F42500010
PULLEY ASSY-HOSE
4шт.
8
33FP-90700
PIN-H/PULLEY
4шт.
9
232110000-DA
WASHER-PLAIN
4шт.
10
33FP-90710
SUPPORT-ELBOW
2шт.
11
31FS-90500
ELBOW WA
2шт.
13
X710-100103
CAP-HYD,ORFS
STD
2шт.
14
S017-100806
BOLT-HEX
1шт.
17
S017-100856
BOLT-HEX
2шт.
18
S017-080306
BOLT-HEX
HBR20-7 #0035
1шт.
18
S017-080306
BOLT-HEX
HBR25-7 #0013
1шт.
19
S411-080006
WASHER-SPRING
HBR20-7 #0035
1шт.
19
S411-080006
WASHER-SPRING
HBR25-7 #0013
1шт.
20
S403-081006
WASHER-PLAIN
HBR20-7 #0035
2шт.
20
S403-081006
WASHER-PLAIN
HBR25-7 #0013
2шт.
21
S205-081006
NUT-HEX
HBR20-7 #0035
1шт.
21
S205-081006
NUT-HEX
HBR25-7 #0013
1шт.
24
S017-100456
BOLT-HEX
2шт.
25
S552-102370
CLAMP-BAND
8шт.
26
FMB0000310
CLAMP-HOSE
4шт.
101
P923-064007
HOSE ASSY-ORFS 0X45
SIDE SHIFT
2шт.
102
31FG-80400
ELBOW-90
SIDE SHIFT
2шт.
