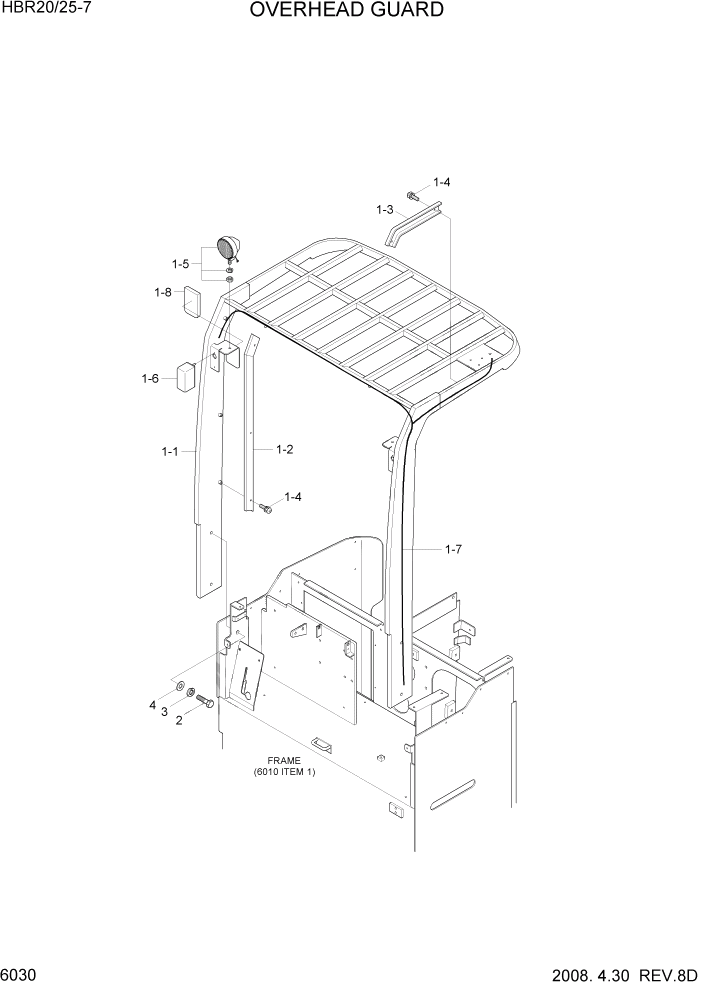

Запчасти Hyundai HBR20/HBR25-7 PAGE 6030 OVERHEAD GUARD СТРУКТУРА

1

71FS-32000

HEAD GUARD ASSY

HBR20-7 #0007

1шт.

1

71FS-32001

HEAD GUARD ASSY

HBR20-7 #0008 - #0185

1шт.

1

71FS-32002

HEAD GUARD ASSY

HBR20-7 #0186

1шт.

1

71FS-32000

HEAD GUARD ASSY

HBR25-7 #0007

1шт.

1

71FS-32001

HEAD GUARD ASSY

HBR25-7 #0008 - #0111

1шт.

1

71FS-32002

HEAD GUARD ASSY

HBR25-7 #0112

1шт.

1-1

71FS-30012

HEAD GUARD WA

HBR20-7 #0007

1шт.

1-1

71FS-30013

HEAD GUARD WA

HBR20-7 #0008 - #0185

1шт.

1-1

71FS-30014

HEAD GUARD WA

HBR20-7 #0186 - #0215

1шт.

1-1

71FS-30015

HEAD GUARD WA

HBR20-7 #0216

1шт.

1-1

71FS-30012

HEAD GUARD WA

HBR25-7 #0007

1шт.

1-1

71FS-30013

HEAD GUARD WA

HBR25-7 #0008 - #0111

1шт.

1-1

71FS-30014

HEAD GUARD WA

HBR25-7 #0112 - #0155

1шт.

1-1

71FS-30015

HEAD GUARD WA

HBR25-7 #0156

1шт.

1-2

71FP-30022

COVER-WIRE

1шт.

1-3

71FP-30041

COVER-WIRE

1шт.

1-4

S131-051046

SCREW-W/WASHER

5шт.

1-5

F12840010

LAMP SUB ASSY-WORK

HBR20-7 #0215

2шт.

1-5

F12840011

LAMP SUB ASSY-WORK

HBR20-7 #0216

2шт.

1-5

F12840010

LAMP SUB ASSY-WORK

HBR25-7 #0155

2шт.

1-5

F12840011

LAMP SUB ASSY-WORK

HBR25-7 #0156

2шт.

1-51

S866-120550

BULB

NOT SHOWN

2шт.

1-6

21FH-77030

LAMP-TURN SIGNAL

2шт.

1-61

S861-072100

BULB-12V/21W

NOT SHOWN

2шт.

1-7

21FS-75010

HARNESS-ACCESSORY

1шт.

1-8

71FP-30050

RUBBER

HBR20-7 #0186

1шт.

1-8

71FP-30050

RUBBER

HBR25-7 #0112

1шт.

2

S017-140306

BOLT-HEX

4шт.

3

S411-140006

WASHER-SPRING

4шт.

4

S403-142006

WASHER-PLAIN

4шт.
