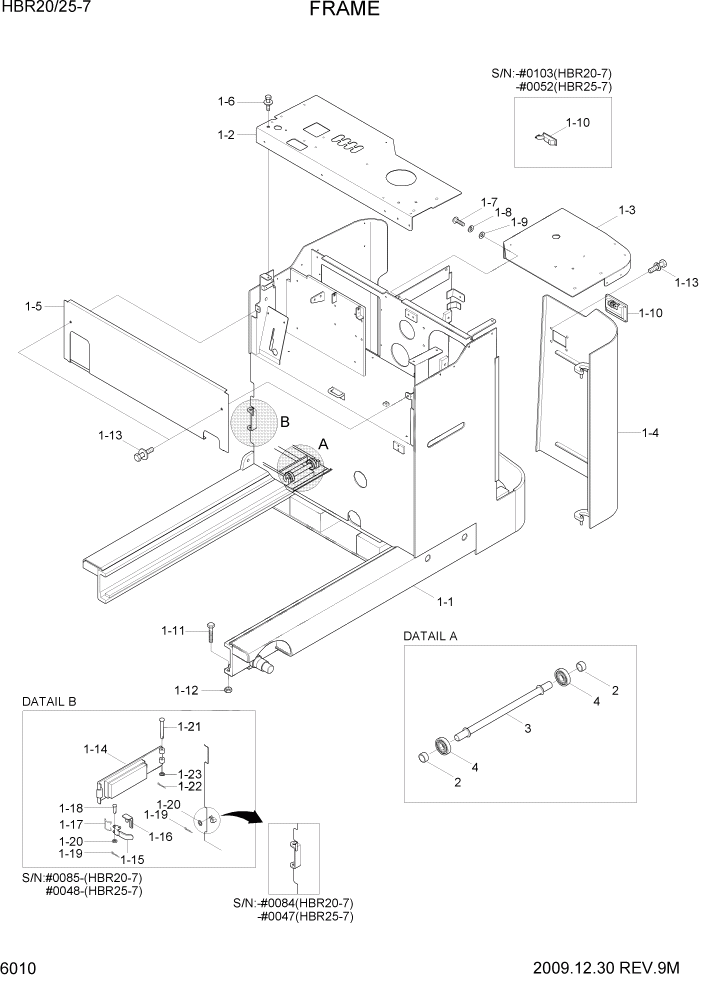

Запчасти Hyundai HBR20/HBR25-7 PAGE 6010 FRAME СТРУКТУРА

*

@

FRAME

NOT #0001

1шт.

1

41FS-11001

FRAME ASSY

HBR20-7,STD #0030

1шт.

1

41FS-11002

FRAME ASSY

HBR20-7,STD #0031 - #0089

1шт.

1

41FS-11003

FRAME ASSY

HBR20-7,STD #0090 - #0103

1шт.

1

41FS-11004

FRAME ASSY

HBR20-7,STD #0104

1шт.

1

41FS-12001

FRAME ASSY

HBR20-7,WIDE #0030

1шт.

1

41FS-12002

FRAME ASSY

HBR20-7,WIDE #0031 - #0089

1шт.

1

41FS-12003

FRAME ASSY

HBR20-7,WIDE #0090 - #0103

1шт.

1

41FS-12004

FRAME ASSY

HBR20-7,WIDE #0104

1шт.

1

41FS-21001

FRAME ASSY

HBR25-7,STD #0011

1шт.

1

41FS-21002

FRAME ASSY

HBR25-7,STD #0012 - #0047

1шт.

1

41FS-21003

FRAME ASSY

HBR25-7,STD #0048 - #0052

1шт.

1

41FS-21004

FRAME ASSY

HBR25-7,STD #0053

1шт.

1

41FS-22001

FRAME ASSY

HBR25-7,WIDE #0011

1шт.

1

41FS-22002

FRAME ASSY

HBR25-7,WIDE #0012 - #0047

1шт.

1

41FS-22003

FRAME ASSY

HBR25-7,WIDE #0048 - #0052

1шт.

1

41FS-22004

FRAME ASSY

TF750 #0053

1шт.

1

41FS-23000

FRAME ASSY

HBR25-7/TF750 #0151

1шт.

1-1

41FS-10012

FRAME WA

HBR20-7,STD #0007

1шт.

1-1

41FS-10013

FRAME WA

HBR20-7,STD #0008 - #0089

1шт.

1-1

41FS-10014

FRAME WA

HBR20-7,STD #0090 - #0160

1шт.

1-1

41FS-10015

FRAME WA

HBR20-7,STD #0161

1шт.

1-1

41FS-10022

FRAME WA

HBR20-7,WIDE #0007

1шт.

1-1

41FS-10023

FRAME WA

HBR20-7,WIDE #0008 - #0089

1шт.

1-1

41FS-10024

FRAME WA

HBR20-7,WIDE #0090 - #0160

1шт.

1-1

41FS-10025

FRAME WA

HBR20-7,WIDE #0161

1шт.

1-1

41FS-20012

FRAME WA

HBR25-7,STD #0007

1шт.

1-1

41FS-20013

FRAME WA

HBR25-7,STD #0008 - #0047

1шт.

1-1

41FS-20014

FRAME WA

HBR25-7,STD #0048 - #0160

1шт.

1-1

41FS-20015

FRAME WA

HBR20-7 #0161

1шт.

1-1

41FS-20022

FRAME WA

HBR25-7,WIDE #0007

1шт.

1-1

41FS-20023

FRAME WA

HBR25-7,WIDE #0008 - #0047

1шт.

1-1

41FS-20024

FRAME WA

HBR25-7,WIDE #0048 - #0160

1шт.

1-1

41FS-20025

FRAME WA

HBR25-7,WIDE #0161

1шт.

1-2

71FS-10022

MAIN COVER

HBR20-7 #0007

1шт.

1-2

71FS-10023

MAIN COVER

HBR20-7 #0008

1шт.

1-2

71FS-10022

MAIN COVER

HBR25-7 #0007

1шт.

1-2

71FS-10023

MAIN COVER

HBR25-7 #0008

1шт.

1-3

71FS-10031

COVER WA

HBR20-7 #0007

1шт.

1-3

71FS-10032

COVER WA

HBR20-7 #0008 - #0030

1шт.

1-3

71FS-10033

COVER WA

HBR20-7 #0031

1шт.

1-3

71FS-10031

COVER WA

HBR25-7 #0007

1шт.

1-3

71FS-10032

COVER WA

HBR25-7 #0008 - #0011

1шт.

1-3

71FS-10033

COVER WA

HBR25-7 #0012

1шт.

1-4

71FS-10011

SIDE DOOR ASSY

HBR20-7 #0007

1шт.

1-4

71FP-10011

SIDE DOOR ASSY

HBR20-7 #0008 - #0103

1шт.

1-4

71FP-10012

SIDE DOOR WA

HBR20-7 #0104

1шт.

1-4

71FS-10011

SIDE DOOR ASSY

HBR25-7 #0007

1шт.

1-4

71FP-10011

SIDE DOOR ASSY

HBR25-7 #0008 - #0052

1шт.

1-4

71FP-10012

SIDE DOOR WA

HBR25-7 #0053

1шт.

1-5

71FS-10102

COVER-FRONT

HBR20-7 #0007

1шт.

1-5

71FS-10103

COVER-FRONT

HBR20-7 #0008

1шт.

1-5

71FS-10102

COVER-FRONT

HBR25-7 #0007

1шт.

1-5

71FS-10103

COVER-FRONT

HBR25-7 #0008

1шт.

1-6

S035-082056

BOLT-W/WASHER

5шт.

1-7

S179-080206

SCREW-SOCKET RD HD

4шт.

1-8

S411-080006

WASHER-SPRING

4шт.

1-9

S403-082006

WASHER-PLAIN

4шт.

1-1

B52110200

LATCH

HBR20-7 #0103

1шт.

1-1

71FP-10410

LATCH-FRONT

HBR20-7 #0104

1шт.

1-1

B52110200

LATCH

HBR25-7 #0052

1шт.

1-1

71FP-10410

LATCH-FRONT

HBR25-7 #0053

1шт.

1-11

206512045

BOLT-FULL THREAD

1шт.

1-12

221312000

NUT-HEX

2шт.

1-13

S035-082056

BOLT-W/WASHER

HBR20-7 #0103

2шт.

1-13

S035-082056

BOLT-W/WASHER

HBR20-7 #0104

4шт.

1-13

S035-082056

BOLT-W/WASHER

HBR25-7 #0052

2шт.

1-13

S035-082056

BOLT-W/WASHER

HBR25-7 #0053

4шт.

1-14

71FP-10360

STOPPER-BATTERY

HBR20-7 #0090

1шт.

1-14

71FP-10360

STOPPER-BATTERY

HBR25-7 #0048

1шт.

1-15

71FP-10370

LATCH

HBR20-7 #0090

1шт.

1-15

71FP-10370

LATCH

HBR25-7 #0048

1шт.

1-16

71FP-10380

PLATE-SAFETY

HBR20-7 #0090

1шт.

1-16

71FP-10380

PLATE-SAFETY

HBR25-7 #0048

1шт.

1-17

71FP-10390

SPRING

HBR20-7 #0090

1шт.

1-17

71FP-10390

SPRING

HBR25-7 #0048

1шт.

1-18

S491-080452

PIN-CLEVIS

HBR20-7 #0090

1шт.

1-18

S491-080452

PIN-CLEVIS

HBR25-7 #0048

1шт.

1-19

S461-200152

PIN-SPLIT

HBR20-7 #0090

1шт.

1-19

S461-200152

PIN-SPLIT

HBR25-7 #0048

1шт.

1-2

S403-082002

WASHER-PLAIN

HBR20-7 #0090

1шт.

1-2

S403-082002

WASHER-PLAIN

HBR25-7 #0048

1шт.

1-21

S491-100952

PIN-CLEVIS

HBR20-7 #0090

1шт.

1-21

S491-100952

PIN-CLEVIS

HBR25-7 #0048

1шт.

1-22

S461-320152

PIN-SPLIT

HBR20-7 #0090

1шт.

1-22

S461-320152

PIN-SPLIT

HBR25-7 #0048

1шт.

1-23

S403-102002

WASHER-PLAIN

HBR20-7 #0090

1шт.

1-23

S403-102002

WASHER-PLAIN

HBR25-7 #0048

1шт.

1-24

71FP-10400

BRACKET

HBR20-7 #0104

1шт.

1-24

71FP-10400

BRACKET

HBR25-7 #0053

1шт.

2

41FP-00580

COLLAR

6шт.

3

41FP-00590

SHAFT-ROLLER

3шт.

4

9021051304

BEARING-BALL

6шт.

5

41FS-00612

LINER

2шт.
