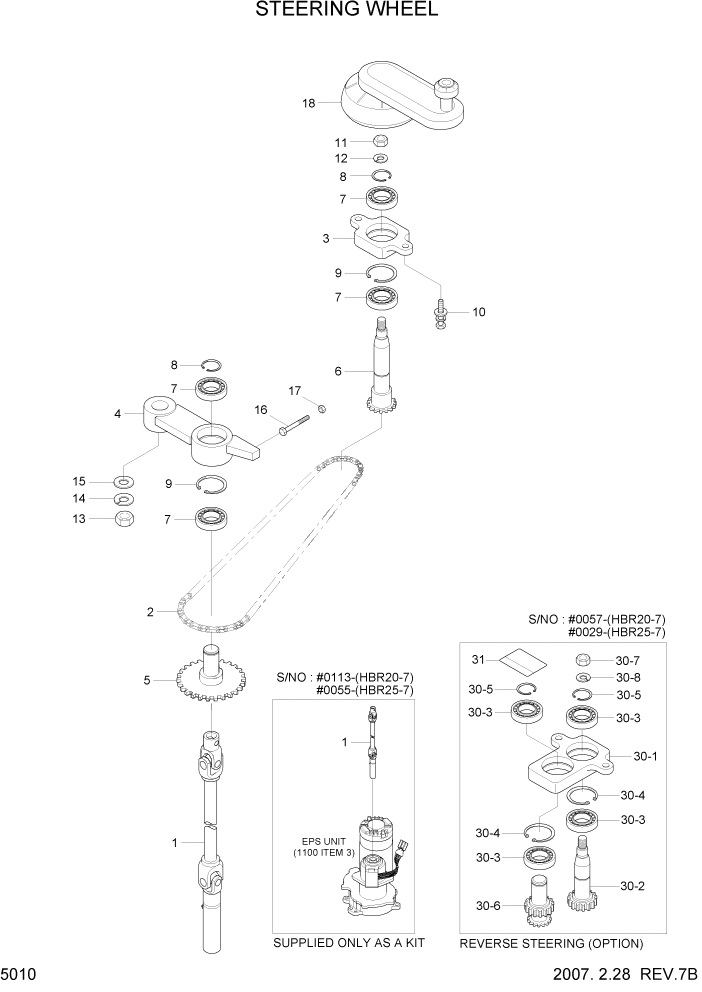

Запчасти Hyundai HBR20/HBR25-7 PAGE 5010 STEERING LINKAGE СИСТЕМА УПРАВЛЕНИЯ

1

31FP-10011

U-JOINT ASSY

HBR20-7 #0112

1шт.

1

31FP-10012

U-JOINT ASSY

HBR20-7 #0113

1шт.

1

31FP-10011

U-JOINT ASSY

HBR25-7 #0054

1шт.

1

31FP-10012

U-JOINT ASSY

HBR25-7 #0055

1шт.

2

31FS-10021

ROLLER-CHAIN

STD

1шт.

2

31FS-10090

CHAIN ROLLER

REVERSE,20-7 #0057

1шт.

2

31FS-10090

CHAIN ROLLER

REVERSE,25-7 #0029

1шт.

10

S035-103526

BOLT-W/WASHER

2шт.

13

S205-161006

NUT-HEX

1шт.

14

S411-160006

WASHER-SPRING

1шт.

15

S403-162006

WASHER-PLAIN

1шт.

16

909267100

BOLT

1шт.

17

S205-081006

NUT-HEX

1шт.

18

31FP-10070

WHEEL-STEERING

1шт.

18-1

31FS-10060

STEER WHEEL ASSY

1шт.

18-2

31FS-10070

KNOB-STEER WHEEL

1шт.

19

31FS-10080

SPROCKET SUB ASSY

1шт.

19-1

31FP-10040

BRACKET-STEERING

1шт.

19-2

31FS-10050

SPROCKET ASSY

1шт.

19-3

9021051204

BEARING-BALL

2шт.

19-4

S601-020004

RING-RETAINING

1шт.

19-5

S602-047004

RING-RETAINING

1шт.

20

31FP-10090

SHAFT SUB ASSY

1шт.

20-1

31FP-10030

BRACKET-STEER WHEEL

1шт.

20-2

31FP-10061

SHAFT-STEER WHEEL

1шт.

20-3

9021051204

BEARING-BALL

2шт.

20-4

S601-020004

RING-RETAINING

1шт.

20-5

S602-047004

RING-RETAINING

1шт.

20-6

S205-121006

NUT-HEX

1шт.

20-7

S411-120006

WASHER-SPRING

1шт.

30

31FP-10100

SHAFT SUB ASSY-REVERSE

HBR20-7,OPT #0057

1шт.

30

31FP-10100

SHAFT SUB ASSY-REVERSE

HBR25-7,OPT #0029

1шт.

30-1

31FP-10110

BRACKET-STEER WHEEL

1шт.

30-2

31FP-10120

SHAFT-STEER WHEEL

1шт.

30-3

9021051204

BEARING-BALL

2шт.

30-4

S601-020004

RING-RETAINING

1шт.

30-5

S602-047004

RING-RETAINING

1шт.

30-6

31FP-10130

IDLER

1шт.

30-7

S205-121006

NUT-HEX

1шт.

30-8

S411-120006

WASHER-SPRING

1шт.

31

31FH-10090

DECAL-REVERSE STEER

HBR20-7,OPT #0057

1шт.

31

31FH-10090

DECAL-REVERSE STEER

HBR25-7,OPT #0029

1шт.
