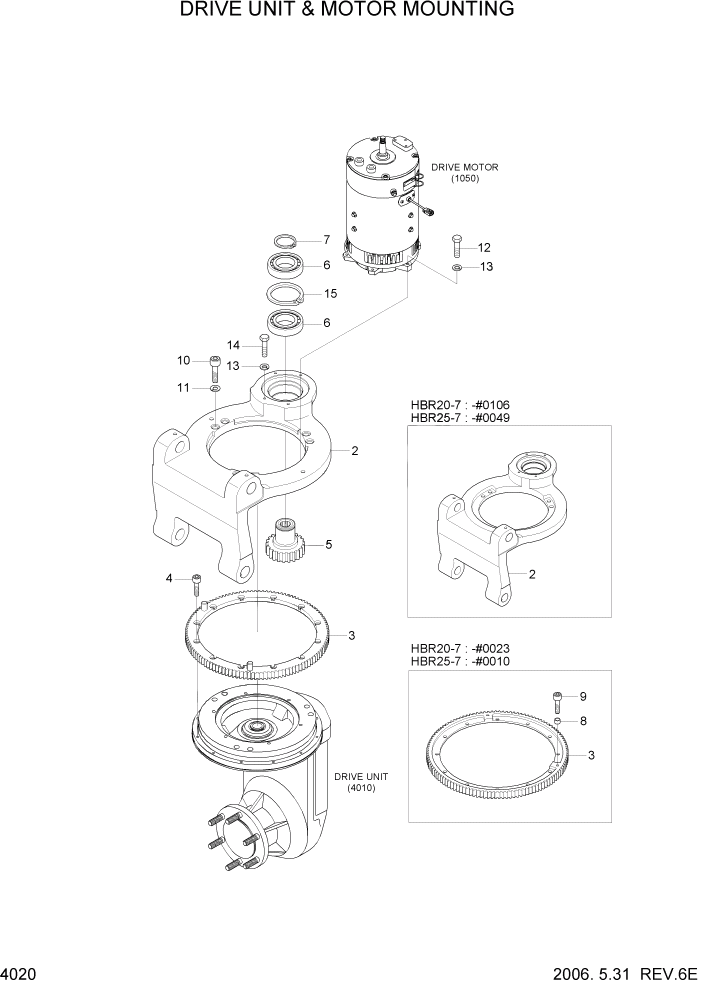

Запчасти Hyundai HBR20/HBR25-7 PAGE 4020 DRIVE UNIT & MOTOR MOUNTING СИЛОВАЯ СИСТЕМА

2

81FS-30021

BRACKET-DRIVE UNIT

HBR20-7 #0106

1шт.

2

81FS-30022

BRACKET-D/UNIT,CASTING

HBR20-7 #0107

1шт.

2

81FS-30021

BRACKET-DRIVE UNIT

HBR25-7 #0049

1шт.

2

81FS-30022

BRACKET-D/UNIT,CASTING

HBR25-7 #0050

1шт.

3

81FS-30031

GEAR-STEERING

HBR20-7 #0023

1шт.

3

81FS-30032

GEAR-STEERING

HBR20-7 #0024

1шт.

3

81FS-30031

GEAR-STEERING

HBR25-7 #0010

1шт.

3

81FS-30032

GEAR-STEERING

HBR25-7 #0011

1шт.

4

S109-080206

BOLT-SOCKET

12шт.

5

81FS-30041

PINION-STEERING

1шт.

6

9021051307

BEARING-BALL

2шт.

7

S601-035004

RING-RETAINING

1шт.

8

81FS-30050

SPACER

HBR20-7 #0022

2шт.

8

81FS-30050

SPACER

HBR25-7 #0009

2шт.

9

S109-080206

BOLT-SOCKET

HBR20-7 #0022

2шт.

9

S109-080206

BOLT-SOCKET

HBR25-7 #0009

2шт.

10

S109-120506

BOLT-SOCKET

HBR20-7 #0106

6шт.

10

S109-120606

BOLT-SOCKET

HBR20-7 #0107

6шт.

10

S109-120506

BOLT-SOCKET

HBR25-7 #0049

6шт.

10

S109-120606

BOLT-SOCKET

HBR25-7 #0050

6шт.

11

S411-120006

WASHER-SPRING

6шт.

12

S015-080256

BOLT-HEX

6шт.

13

S411-080006

WASHER-SPRING

10шт.

14

S015-080356

BOLT-HEX

4шт.

15

S602-080004

RING-RETAINING

1шт.
