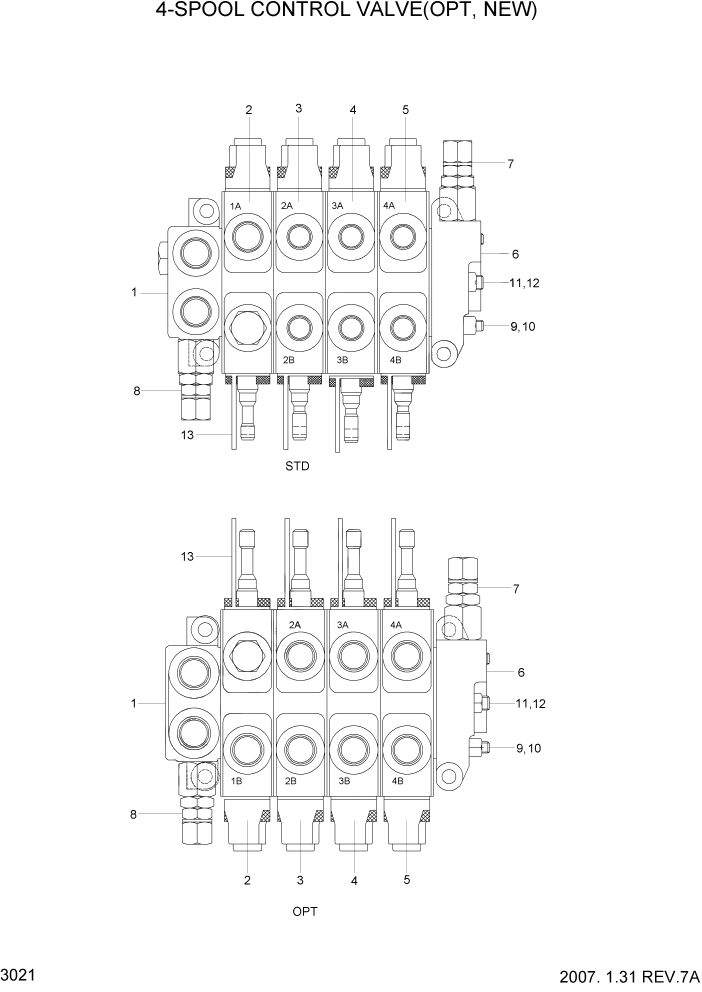

Запчасти Hyundai HBR20/HBR25-7 PAGE 3021 4-SPOOL CONTROL VALVE(OPT,NEW) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

33FP-02010

MAIN CONTROL VALVE

HBR20-7,STD #0072

1шт.

*

33FP-02010

MAIN CONTROL VALVE

HBR25-7,STD #0041

1шт.

*

33FP-02510

MAIN CONTROL VALVE

HBR20-7,OPT #0072

1шт.

*

33FP-02510

MAIN CONTROL VALVE

HBR25-7,OPT #0041

1шт.

1

XKBF-00443

SECTION-INLET

1шт.

2

XKBF-00611

SECTION-LIFT

STD

1шт.

2

XKBF-00686

LIFT SECTION

OPT

1шт.

3

XKBF-00445

SECTION-TILT

STD

1шт.

3

XKBF-00455

SECTION-TILT

OPT

1шт.

4

XKBF-00687

AUX1 SECTION

STD

1шт.

4

XKBF-00463

SECTION-AUX2

OPT

1шт.

5

XKBF-00689

AUX2 SECTION

STD

1шт.

5

XKBF-00456

SECTION-AUX1

OPT

1шт.

6

XKBF-00447

SECTION-OUTLET

1шт.

7

XKBF-00302

RELIEF VALVE ASSY

AUX,HBR20-7 #0134

1шт.

7

XKBF-00867

RELIEF VALVE ASSY

AUX,HBR20-7 #0135

1шт.

7

XKBF-00302

RELIEF VALVE ASSY

AUX,HBR25-7 #0070

1шт.

7

XKBF-00867

RELIEF VALVE ASSY

AUX,HBR25-7 #0071

1шт.

8

XKBF-00448

RELIEF VALVE ASSY

MAIN,HBR20-7 #0134

1шт.

8

XKBF-00866

RELIEF VALVE ASSY

MAIN,20,SEE3085 #0135

1шт.

8

XKBF-00448

RELIEF VALVE ASSY

MAIN,HBR25-7 #0070

1шт.

8

XKBF-00866

RELIEF VALVE ASSY

MAIN,25,SEE3085 #0071

1шт.

9

XKBF-01187

ROD

2шт.

10

XKBF-00566

NUT

4шт.

11

XKBF-01186

ROD

1шт.

12

XKBF-00568

NUT

2шт.

13

XKBF-00569

BRACKET

4шт.
