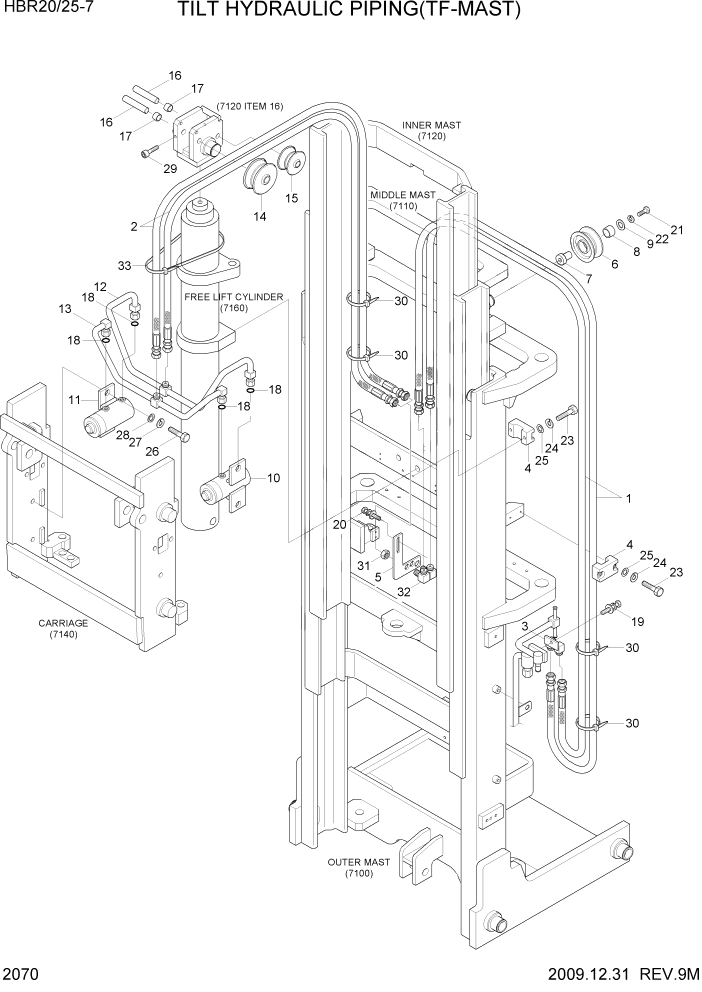

Запчасти Hyundai HBR20/HBR25-7 PAGE 2070 TILT HYDRAULIC PIPING(TF-MAST) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

P910-044051

HOSE ASSY-ORFS 0X0

TF370

2шт.

1

P910-044055

HOSE ASSY-ORFS 0X0

TF400

2шт.

1

P910-044058

HOSE ASSY-ORFS 0X0

TF430

2шт.

1

P910-044062

HOSE ASSY-ORFS 0X0

TF450

2шт.

1

P910-044064

HOSE ASSY-ORFS 0X0

TF470

2шт.

1

P910-044068

HOSE ASSY-ORFS 0X0

TF500

2шт.

1

P910-044075

HOSE ASSY-ORFS 0X0

TF550

2шт.

1

P910-044083

HOSE ASSY-ORFS 0X0

TF600

2шт.

1

P910-044091

HOSE ASSY-ORFS 0X0

TF650

2шт.

1

P910-044099

HOSE ASSY-ORFS 0X0

TF700

2шт.

1

P910-044107

HOSE ASSY-ORFS 0X0

HBR20-7 #0161

2шт.

1

P910-044107

HOSE ASSY-ORFS 0X0

HBR25-7 #0151

2шт.

2

P910-044037

HOSE ASSY-ORFS 0X0

TF370,HBR20-7 #0035

2шт.

2

P910-044043

HOSE ASSY-ORFS 0X0

TF370,HBR20-7 #0036

2шт.

2

P910-044037

HOSE ASSY-ORFS 0X0

TF370,HBR25-7 #0013

2шт.

2

P910-044043

HOSE ASSY-ORFS 0X0

TF370,HBR25-7 #0014

2шт.

2

P910-044041

HOSE ASSY-ORFS 0X0

TF400,HBR20-7 #0035

2шт.

2

P910-044045

HOSE ASSY-ORFS 0X0

TF400,HBR20-7 #0036

2шт.

2

P910-044041

HOSE ASSY-ORFS 0X0

TF400,HBR25-7 #0013

2шт.

2

P910-044045

HOSE ASSY-ORFS 0X0

TF400,HBR25-7 #0014

2шт.

2

P910-044045

HOSE ASSY-ORFS 0X0

TF430,HBR20-7 #0035

2шт.

2

P910-044046

HOSE ASSY-ORFS 0X0

TF430,HBR20-7 #0036

2шт.

2

P910-044045

HOSE ASSY-ORFS 0X0

TF430,HBR25-7 #0013

2шт.

2

P910-044046

HOSE ASSY-ORFS 0X0

TF430,HBR25-7 #0014

2шт.

2

P910-044049

HOSE ASSY-ORFS 0X0

TF450,HBR20-7 #0035

2шт.

2

P910-044047

HOSE ASSY-ORFS 0X0

TF450,HBR20-7 #0036

2шт.

2

P910-044049

HOSE ASSY-ORFS 0X0

TF450,HBR25-7 #0013

2шт.

2

P910-044047

HOSE ASSY-ORFS 0X0

TF450,HBR25-7 #0014

2шт.

2

P910-044051

HOSE ASSY-ORFS 0X0

TF470,HBR20-7 #0035

2шт.

2

P910-044049

HOSE ASSY-ORFS 0X0

TF470,HBR20-7 #0036

2шт.

2

P910-044051

HOSE ASSY-ORFS 0X0

TF470,HBR25-7 #0013

2шт.

2

P910-044049

HOSE ASSY-ORFS 0X0

TF470,HBR25-7 #0014

2шт.

2

P910-044055

HOSE ASSY-ORFS 0X0

TF500,HBR20-7 #0035

2шт.

2

P910-044051

HOSE ASSY-ORFS 0X0

TF500,HBR20-7 #0036

2шт.

2

P910-044055

HOSE ASSY-ORFS 0X0

TF500,HBR25-7 #0013

2шт.

2

P910-044051

HOSE ASSY-ORFS 0X0

TF500,HBR25-7 #0014

2шт.

2

P910-044062

HOSE ASSY-ORFS 0X0

TF550,HBR20-7 #0035

2шт.

2

P910-044054

HOSE ASSY-ORFS 0X0

TF550,HBR20-7 #0036

2шт.

2

P910-044062

HOSE ASSY-ORFS 0X0

TF550,HBR25-7 #0013

2шт.

2

P910-044054

HOSE ASSY-ORFS 0X0

TF550,HBR25-7 #0014

2шт.

2

P910-044070

HOSE ASSY-ORFS 0X0

TF600,HBR20-7 #0035

2шт.

2

P910-044058

HOSE ASSY-ORFS 0X0

TF600,HBR20-7 #0036

2шт.

2

P910-044070

HOSE ASSY-ORFS 0X0

TF600,HBR25-7 #0013

2шт.

2

P910-044058

HOSE ASSY-ORFS 0X0

TF600,HBR25-7 #0014

2шт.

2

P910-044078

HOSE ASSY-ORFS 0X0

TF650,HBR20-7 #0035

2шт.

2

P910-044062

HOSE ASSY-ORFS 0X0

TF650,HBR20-7 #0036

2шт.

2

P910-044078

HOSE ASSY-ORFS 0X0

TF650,HBR25-7 #0013

2шт.

2

P910-044062

HOSE ASSY-ORFS 0X0

TF650,HBR25-7 #0014

2шт.

2

P910-044086

HOSE ASSY-ORFS 0X0

TF700,HBR20-7 #0035

2шт.

2

P910-044066

HOSE ASSY-ORFS 0X0

TF700,HBR20-7 #0036

2шт.

2

P910-044086

HOSE ASSY-ORFS 0X0

TF700,HBR25-7 #0013

2шт.

2

P910-044066

HOSE ASSY-ORFS 0X0

TF700,HB25-7 #0014

2шт.

2

P910-044070

HOSE ASSY-ORFS 0X0

HBR20-7 #0161

2шт.

2

P910-044070

HOSE ASSY-ORFS 0X0

HBR25-7 #0151

2шт.

3

31FP-90100

ELBOW WA

1шт.

3-1

S621-011001

O-RING

NOT SHOWN

4шт.

4

33FP-90200

CLAMP

2шт.

5

33FP-90311

PLATE

1шт.

6

5673094900

PULLEY-HOSE

1шт.

7

5673095000

PIN-HOSE PULLEY

1шт.

8

S731-020025

BUSHING-DU

1шт.

9

232110000

WASHER

1шт.

10

31FS-08000

CYLINDER ASS'Y,LH

1шт.

11

31FS-08100

CYLINDER ASS'Y,RH

1шт.

12

33FS-90400

TILT PIPE WA

1шт.

12-3

S621-011001

O-RING

NOT SHOWN

1шт.

13

33FS-90500

TILT PIPE WA

1шт.

13-3

S621-011001

O-RING

NOT SHOWN

1шт.

14

5673094500

PULLEY-HOSE

1шт.

15

5673094600

PULLEY-HOSE

1шт.

16

5673094700

PIN-HOSE PULLEY

2шт.

17

S731-016020

BUSHING-DU

2шт.

18

S621-011001

O-RING

4шт.

19

S037-102526

BOLT-W/WASHER

1шт.

20

S035-081526

BOLT-W/WASHER

2шт.

21

S017-100606

BOLT-HEX

1шт.

22

S411-100006

WASHER-SPRING

1шт.

23

S015-060306

BOLT-HEX

4шт.

24

S411-060006

WASHER-SPRING

4шт.

25

S403-061006

WASHER-PLAIN

4шт.

26

S017-160402

BOLT-HEX

4шт.

27

S411-160006

WASHER-SPRING

4шт.

28

S403-161006

WASHER-PLAIN

4шт.

29

S109-080206

BOLT-SOCKET

2шт.

30

S552-050203

CLAMP-BAND

5шт.

31

33FP-90380-DA

NUT

2шт.

32

33FP-90350

ELBOW WA

2шт.

33

S552-102370

CLAMP-BAND

2шт.
